Orion 24 / 12-80 DC-DC converter IP20

The Victron Orion 24/12-80 IP20 converter is a high-performance, non-isolated DC-DC converter that converts voltage from 24V to 13.2V. Offering a continuous output current of up to 80A, with a maximum of 90A, it is ideal for demanding electrical installations in campers and commercial vehicles. Thanks to its advanced technology, the converter offers efficiency of up to 92%, minimizing energy losses during operation.

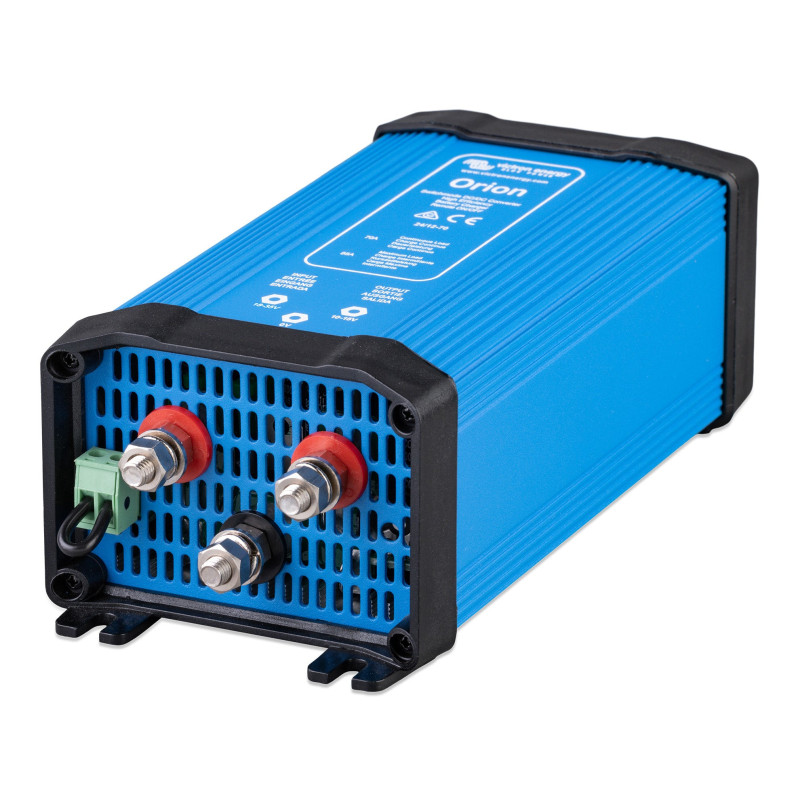

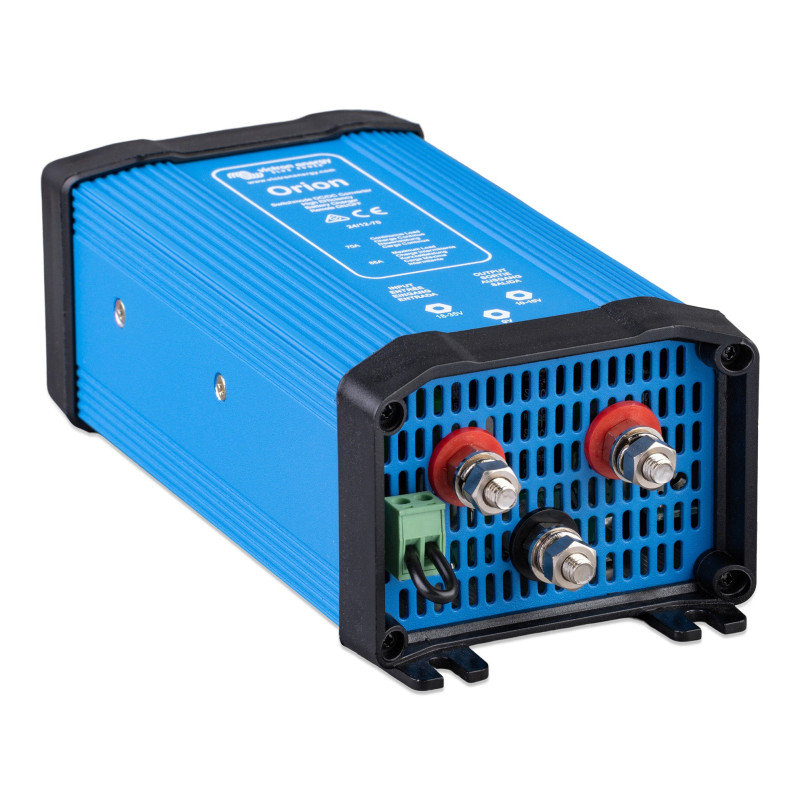

The converter's compact design, measuring 65 x 88 x 195 mm, is made of high-quality materials, ensuring durability and reliability in harsh environments. The device weighs just 0.9 kg, making it easy to install and transport. M6 terminals enable secure electrical connections, which is crucial in mobile installations.

One of the key advantages of the Orion 24/12-80 converter is the ability to remotely turn it on and off, allowing for convenient control of its operation via an external signal. The converter also features an adjustable output voltage ranging from 10V to 15V, allowing it to be adapted to a variety of receivers and battery types. This allows for optimal energy utilization and extended battery life.

The converter complies with ECE R10 automotive standards and meets electromagnetic compatibility (EMC) requirements. This ensures safe use in vehicles, even in harsh weather conditions, with an operating temperature range of -20 to +55°C. At temperatures above 40°C, the device automatically reduces power, increasing its reliability.

Technical data

The Victron Orion 24/12-80 converter comes with all the necessary mounting hardware, making installation easy. When using the device, it's important to ensure adequate ventilation to ensure optimal operating conditions, especially under heavy loads. This converter is the perfect choice for those who need a stable and efficient power source for their vehicles. Thanks to its efficiency and functionality, the Victron Orion 24/12-80 converter is sure to meet the expectations of even the most demanding users.
