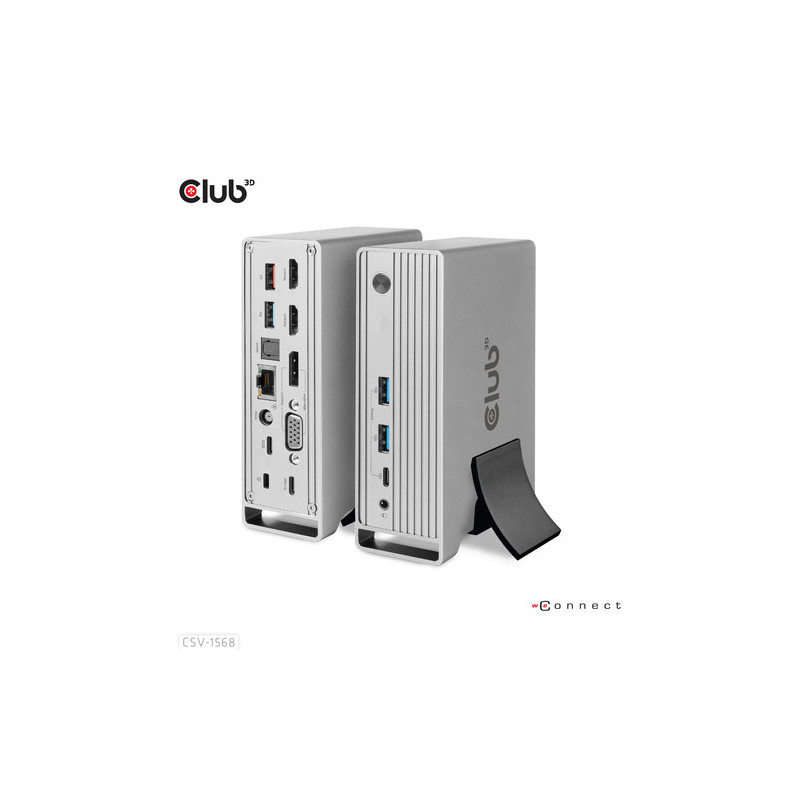

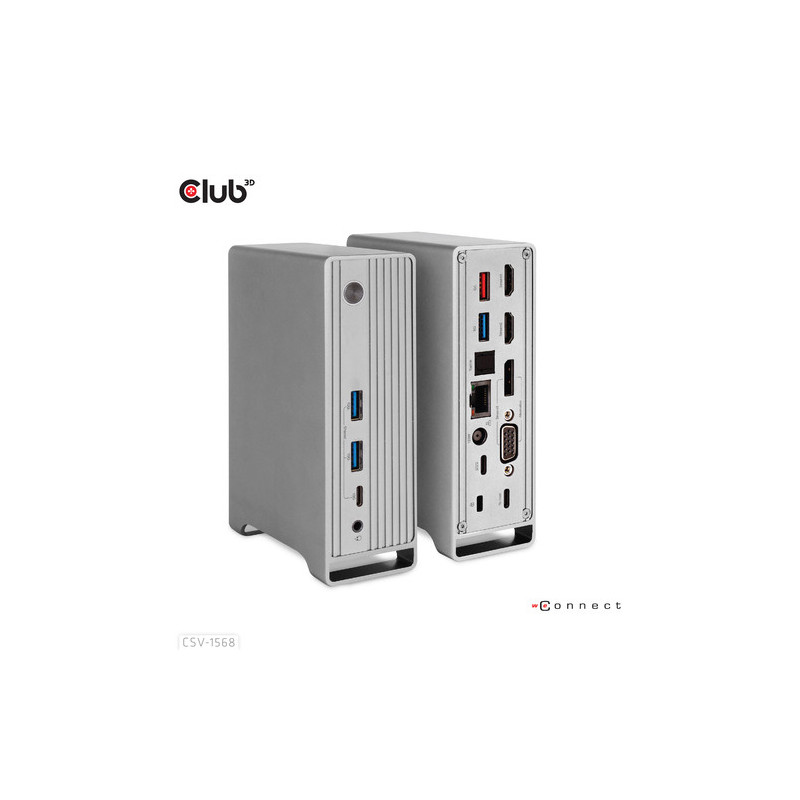

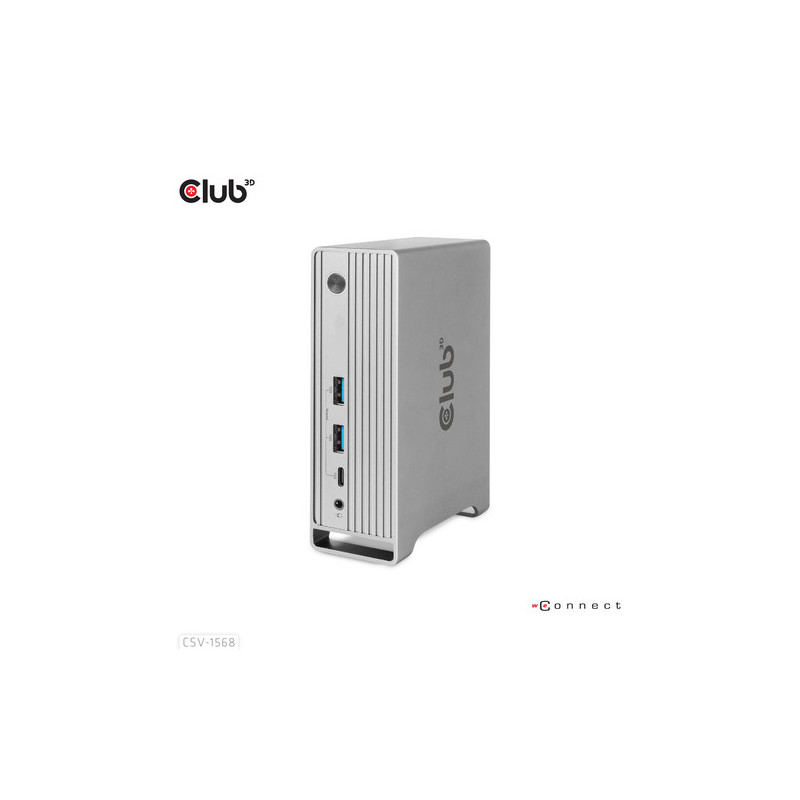

The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G) for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply).
It supports all DP Alt mode1.4/1.2 supported Type-C and Thunderbolt™ 3 host (PC, laptop, mobile phone, etc.) under Windows and under MacOS X based on Intel you will only get limited SST Function or Single display Only.
- Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc.)
- Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP has priority over VGA)
- When 3 Displays are connected - 16.2Gbps bandwidth will be shared
- Single Display Support - HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60Hz
- DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
- DP and HDMI support deep color 8/10 bit
- DP and HDMI support HDR
- DP and HDMI support HDCP2.2 & 1.4
- DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI display
- Support Gigabit Ethernet 10/100/1000M
- Support USB3.2 Gen2 with max 10Gbps data transfer
- Support smart charging
- Support Digital audio with max 96KHz/24bit sampling rate
- Support dual power supplies: Type-C PD charging or DC Jack
- Type-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devices
- Max 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W
| Summary: | CLUB3D Docking station(Metal casing)1x USB Gen2 Type-C Female (data) 2x USB Gen2 Type-A Female 1x USB Gen1 Type-A Female 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. • 2x HDMI™ (DP Alt Mode) 1x DP™ (DP Alt Mode) hdr 1x VGA 1x RJ45 1 + 120 Watt. Connectivity technology: Docking, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product colour: Metallic, Data transfer rate: 16.2 Gbit/s, Maximum refresh rate: 60 Hz. Power source type: DC, Power connector: USB Type-C, AC input voltage: 100 - 240 V. Width: 139 mm, Depth: 90 mm, Height: 44 mm. Quantity per pack: 1 pc(s), Package width: 225 mm, Package depth: 155 mm |
| Vendor Homepage: | https://www.club-3d.com/en/detail/2580/usb_gen2_type_c_triple_display_dp_1.4_alt_mode_smart_pd_charging_dock_with_120_watt_psu/ |
| Category Code: | NBK |
| CnCode: | 84733020 |
| Unit Box Height: | 0.095 |
| Unit Box Length: | 0.225 |
| Unit Box Width: | 0.16 |
| Combo headphone/mic port: | Yes |
| Connectivity technology: | Docking |
| DC-in jack: | Yes |
| DisplayPort version: | 1.4 |
| DisplayPorts quantity: | 1 |
| HDCP: | Yes |
| HDCP version: | 1.4/2.2 |
| HDMI ports quantity: | 2 |
| Headphone connectivity: | 3.5 mm |
| Host interface: | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Thunderbolt 3 Power Delivery: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| USB Power Delivery (USB PD): | Yes |
| USB Power Delivery revision: | 3.0 |
| USB Power Delivery up to: | 100W |
| USB Type-C DisplayPort Alternate Mode: | Yes |
| VGA (D-Sub) ports quantity: | 1 |
| Ethernet LAN: | Yes |
| Ethernet LAN (RJ-45) ports: | 1 |
| Brand compatibility: | Apple |
| Card reader integrated: | Yes |
| Certification: | Meets ROHS, FCC, and CE EMI requirements |
| Compatibility: | Lenovo Dell Acer Asus MSI Toshiba Apple HP Razer |
| Country of origin: | China |
| Data transfer rate: | 16.2Gbit/s |
| High Dynamic Range (HDR) supported: | Yes |
| Key lock: | Yes |
| Maximum refresh rate: | 60Hz |
| Plug and Play: | Yes |
| Product colour: | Metallic |
| AC input voltage: | 100 - 240V |
| Power cable length: | 1m |
| Power connector: | USB Type-C |
| Power consumption (max): | 120W |
| Power source type: | DC |
| Power supply: | 120W |
| Mac operating systems supported: | Yes |
| Windows operating systems supported: | Yes |
| Depth: | 90mm |
| Height: | 44mm |
| Weight: | 563g |
| Width: | 139mm |
| Package depth: | 155mm |
| Package height: | 97mm |
| Package weight: | 1359g |
| Package width: | 225mm |
| Quantity per pack: | 1pc(s) |
| AC adapter included: | Yes |
| Quick start guide: | Yes |
| Stand included: | Yes |
| Paper/cardboard packaging weight: | 168g |
| Plastic packaging weight: | 5g |
| Total paper/cardboard packaging weight: | 0g |
| Total plastic packaging weight: | 0g |
| Harmonized System (HS) code: | 8473 3020 |

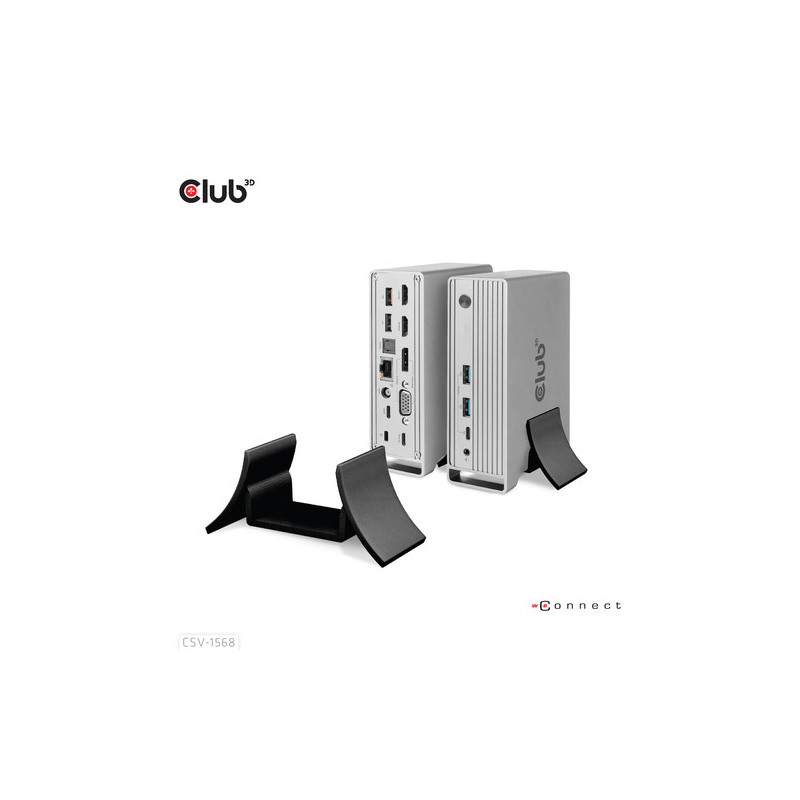

| Special features: | In the box: CSV-1568 Docking Station PowerSupply Input:100-110/240VAC, Output: up to 120W USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft Detachable stand Quick Install Guide |
| Voltage: | 20.5V |
| Model: | CSV-1568 |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.00342m³ |
| Unit Calculated Weight: | 1.39kg |
