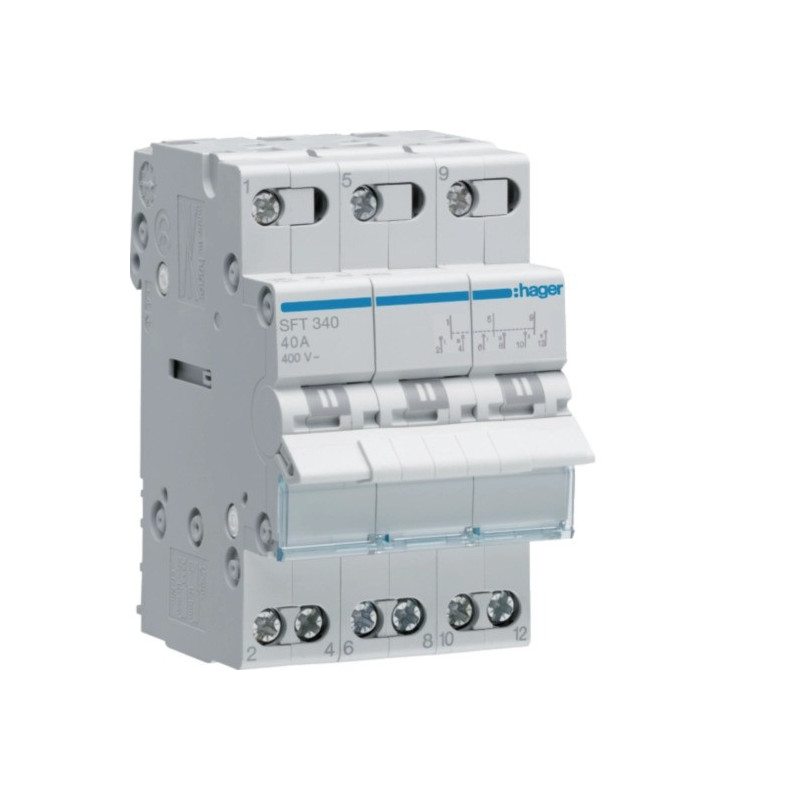

Modular switch Hager SFT340 (3P, 40A, AC, 3 positions, 230V)
Product reference: 26-HSFT340
  • Type: Modular switch (3-position toggle switch)
  • Model: Hager SFT340
  • Number of poles: 3P
  • Rated current: 40 A
  • Voltage: 230V AC
  • Manufacturer: Hager
Modular switch Hager SFT340 (3P, 40A, AC, 3 positions, 230V)

Modular switch Hager SFT340 (3P, 40A, AC, 3 positions, 230V)

Product reference: 26-HSFT340
  • Type: Modular switch (3-position toggle switch)
  • Model: Hager SFT340
  • Number of poles: 3P
  • Rated current: 40 A
  • Voltage: 230V AC
  • Manufacturer: Hager
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
2988 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • General information
  • Number of poles 3
  • Neutral position Without neutral
  • Pole type 3P
  • Rated current 40 A
  • Rated conditional short-circuit current Icc (with gl-gG fuses) 0.60 kA
  • Permissible current (AC21 category A) 40 A
  • Permissible current (AC21 category B) 40 A
  • Permissible current (AC22 category A) 40 A
  • Permissible current (AC22 category B) 40 A
  • Rated short-circuit making capacity Icm (415 V AC, IEC 60947-3) 0.48 kA
  • Rated short-time withstand current Icw (1s, IEC 60947) 0.60 kA
  • Nominal tightening torque 1.80 Nm
  • Bottom connection type (modular units) Screw terminal
  • Rated operating voltage Ue 400V AC
  • Rated insulation voltage Ui 440V
  • Rated impulse withstand voltage Uimp 4,000V
  • Number of modules 3
  • IP protection class IP20
  • Frequency 50-60Hz
  • Height 83 mm
  • Width 52.5 mm
  • Depth 70 mm
  • Number of NO contacts 0
  • Number of NC contacts 0
  • Operating temperature -20 to +50 °C
  • Storage/transport temperature -40 to +80 °C
  • Cross-section of a flexible conductor 1.5-10 mm²
  • Cross-section of a solid conductor 1.5-16 mm²
  • Mechanical durability 200,000 operations
  • Electrical durability (AC21, at rated load) 25,000 cycles
  • Electrical durability (AC22, at rated load) 25,000 cycles
  • Total power loss at In 6.30 W
  • Power loss per pole at In 2.10W
  • Bottom connection arrangement (modular units) Shifted terminal
  • Top connection arrangement (modular units) Shifted terminal

Manufacturer codeHSFT340
ManufacturerHager
Weight0 kg
