MikroTik LHG 5 ax , Client device , LHG-5axD, WiFi 6, 1x RJ45 1000Mb / s, 24.5 dBi
Product reference: 3-4752224009654

MikroTik LHG 5 ax | Client device | LHG-5axD, WiFi 6, 1x RJ45 1000Mb/s, 24.5 dBi

MikroTik LHG 5 ax , Client device , LHG-5axD, WiFi 6, 1x RJ45 1000Mb / s, 24.5 dBi

Product reference: 3-4752224009654

MikroTik LHG 5 ax | Client device | LHG-5axD, WiFi 6, 1x RJ45 1000Mb/s, 24.5 dBi

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
92,89
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 8
business days

Your message has been successfully sent!
Fill in the required fields*
Operating temperature (TT)-40 - 70 °C
Maximum data transfer rate1200.0000
Antenna typeInternal
Receiver sensitivity-96, -80, -75, -70, -67
Product colourwhite
Networking standardsieee_802_11a, ieee_802_11ac, ieee_802_11ax, ieee_802_11n
Antenna gain level (max)24.5000
2.4 GHzNo
5GHzYes
PoE adapter includedYes
DC-in jackYes
CertificationCE, FCC, IC, EAC, ROHS
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedpassive_poe
Flash memory128.0000
Internal memory256.0000
Built-in processorYes
Placementpole
Mounting kitYes
Power consumption (max)5.0000

MikroTik LHG 5 ax - Fast and Reliable 5 GHz Connectivity


The MikroTik LHG 5 ax is a state-of-the-art client device that uses Wi-Fi 6 technology (Wireless Fidelity 6 - a modern wireless data transmission standard) to provide fast and stable connections on the 5 GHz bands. With 24.5 dBi antenna gain and 5GHz technology, it offers broad performance and long-range connectivity, making it ideal for point-to-point applications. The MikroTik LHG 5 ax is designed for use in networks that require broadband data transmission over long distances.

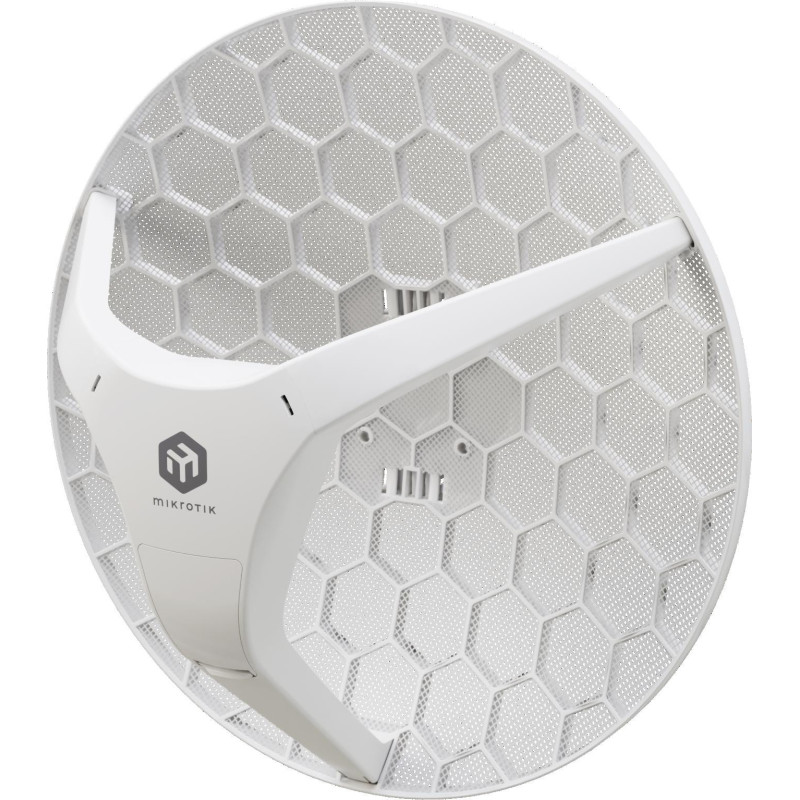

Mikrotik LHG 5 ax antenna set in two sizes, with visible Mikrotik logo and honeycomb structure.

Modern Wi-Fi Technology 6


The MikroTik LHG 5 ax supports Wi-Fi 6, which means better performance compared to previous Wi-Fi versions. With this technology, the device offers higher transmission speeds and improved efficiency in crowded environments where many devices connect to the network. Wi-Fi 6 enables better bandwidth management and higher speeds when connecting multiple devices simultaneously, which is ideal for high-traffic areas.


Close-up of the Mikrotik LHG 5 ax antenna, view of the panel with the Mikrotik logo in the center, with the honeycomb structure clearly visible

High Performance with Antenna Gain 24.5 dBi


With an antenna gain of 24.5 dBi, the MikroTik LHG 5 ax provides exceptional performance in long-range wireless connections. The antenna gain allows the device to maintain signal stability over long distances, which is especially useful for point-to-point connections and other applications requiring high signal strength. With this feature, the device increases range and improves signal quality, enabling high-speed connections in hard-to-reach areas.


Mikrotik LHG 5 ax antenna, seen from the front, with a white honeycomb cover, which is part of the radio system

Flexibility of Connectivity with 5 GHz Wi-Fi and Ethernet


The MikroTik LHG 5 ax offers a 5GHz Wi-Fi connection with speeds of up to 1200Mbps, providing fast internet access and low latency .With 1 RJ45 1000Mbps Ethernet port, the router can be easily connected to a wired network, offering stable connections their other devices. It's ideal for expanding networks in businesses, warehouses and other places that require both wired and wireless connections.


Mikrotik LHG 5 ax antenna, visible from the side, with honeycomb design, white, with Mikrotik logo on the central part.

Ease of Installation and Remote Management


The MikroTik LHG 5 ax supports PoE (Power over Ethernet), which simplifies the installation process by eliminating the need for additional power cables. Zero-Touch Provisioning (ZTP) provides maintenance-free configuration, enabling easy installation without the need for manual parameter setting. In addition, RouterOS allows full management of the device, enabling configuration, monitoring and control of the device remotely.


Block diagram of the LHG 5 ax device showing connections and components such as PoE port, 1 Gbps Ethernet port, IPQ-5010 SoC CPU (800 MHz, 2 cores), 256 MB RAM, 128 MB NAND, 5 GHz 802.11ax WLAN, and amplifier
