HP G5 Docking Station USB-C / 1× HDMI / 2× DisplayPort / 2 x USB / RJ-45 / PD 100W

HP USB-C Dock G5 (5TW10AA#ABB) — a universal docking station for modern laptops. With a single USB-C cable, it connects your laptop to two external monitors, peripherals, and a wired network, while providing power. The compact body with approx. 5×5 inch The footprint saves desk space, while corporate management features make it easy to implement in an IT environment.

Main features

•


  Wide compatibility: works with HP and other manufacturers' laptops with USB-C/Thunderbolt and DisplayPort Alt Mode support.





•


  One cable, everything connected: access to accessories, displays, networking, and charging through a single USB-C.





•


  IT management: PXE Boot, LAN/WLAN switching, Wake-on-LAN, MAC Address Pass-Through (some functions only for supported HP models).





•


  Compact form factor: approximately 122 × 122 mm (5×5").




Ports and interfaces

•


  Front: 1× USB-C (data + power up to 15 W), built-in USB-C cable to host (1 m).





•


  On the side: 2× USB-A (with charging), 1× combo audio jack (3.5 mm).





•

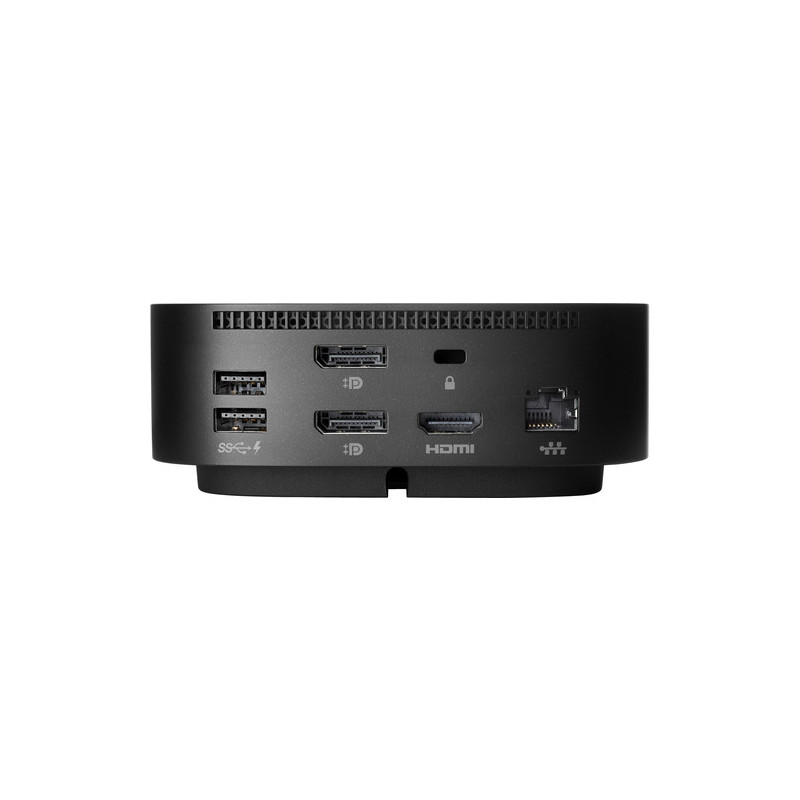

  Back: 2× USB-A (with charging), 2× DisplayPort™, 1× HDMI 2.0, 1× RJ-45 (Gigabit), Kensington security slot.




Connecting displays

•


  Up to 3 displays in total (including laptop screen): two external monitors + host display.




Feeding

•


  Power Delivery to Host (USB-C PD): until 100W.





•


  PD profiles: 5V/9V/10V/12V/15V/20V — up to 5 A (max.).




Compatibility

•


  OS: Windows 10/7, macOS (some management/eTag features may require Windows 10).





•


  Host requirements: USB-C port with DisplayPort Alt Mode and USB Power Delivery.




Governance and Security (IT)

•


  Wake-on-LAN (warm/cold docking, S4/S5), MAC Address Pass-Through (S0/S3/S4/S5), remote docking station firmware update, eTag asset accounting. (Some features are only available on supported HP laptops.)




Physical parameters

•


  Dimensions (W × D × H): 122 × 122 × 45mm





•


  Weight: 0.68 kg





•


  Management: Power button/indicator (for powering on/waking up the host on supported models).




Package

•


  HP USB-C Dock G5





•


  Power adapter (model/wattage varies by region)





•


  Power cable, documentation
  Note: The actual number of supported displays/resolutions and PD profiles depend on your laptop's specifications (GPU/CPU/OS, DP Alt Mode and PD support).
