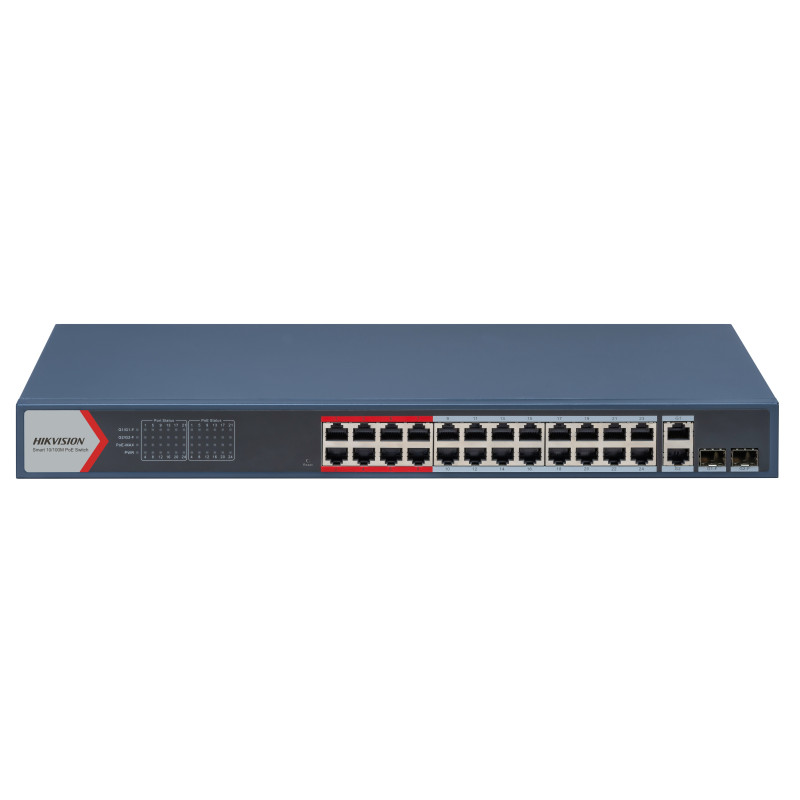

Hikvision 26-port 24 PoE managed switch DS-3E1326P-EI(B)
Product reference: 26-6942160495774
  • 24 × 10/100M PoE ports, 2 × Gigabit Combo ports
  • Total PoE power: 370 W
  • Supports 802.1Q VLANs
  • Supports PoE monitoring function that detects and restarts unresponsive cameras
  • Supports STP/RSTP loop prevention
  • Supports cable fault detection
  • Up to 300m long-range PoE transmission
  • 6 kV surge protection
Hikvision 26-port 24 PoE managed switch DS-3E1326P-EI(B)

Hikvision 26-port 24 PoE managed switch DS-3E1326P-EI(B)

Product reference: 26-6942160495774
  • 24 × 10/100M PoE ports, 2 × Gigabit Combo ports
  • Total PoE power: 370 W
  • Supports 802.1Q VLANs
  • Supports PoE monitoring function that detects and restarts unresponsive cameras
  • Supports STP/RSTP loop prevention
  • Supports cable fault detection
  • Up to 300m long-range PoE transmission
  • 6 kV surge protection
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
22278 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • Certification of chemical components CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Security CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • General information
  • Dimensions (W × H × D) 440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')
  • Total weight 3.8 kg (8.38 lb)
  • Installation Mode Rack (equipped with mounting ears)
  • Max. power consumption 400W
  • Net weight 2.83 kg (6.24 lb)
  • Working humidity 5% to 95% (no condensation)
  • Operating temperature 0 °C to 45 °C (0 °F to 113 °F)
  • Power consumption in sleep mode 30W
  • Power source 100-240 VAC, 50/60 Hz, Max. 6.3 A
  • Relative humidity 5% to 95% (no condensation)
  • Frame Metal material
  • Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Surge protection 6 kV
  • Network settings
  • Internal cache memory 4 Mbit
  • MAC address table 16 K
  • Packet transfer rate Whole-Device Performance: 11.01 MppsPort Performance: 6.55 Mpps
  • Ports 24 × 10/100 Mbps PoE port, 2 × Gigabit combo
  • Switching performance Whole-Device Performance: 14.8 GbpsPort Performance: 8.8 Gbps
  • PoE
  • Max PoE port power 30W
  • PoE port PoE: Ports 1 to 24
  • PoE power budget 370W
  • PoE power connector 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE standard IEEE 802.3af, IEEE 802.3at
  • Software features
  • HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate.2. Display the port bandwidth utilization rate. 3. Display the PoE power usage.4. Display topology information.5. Display the alarm status. 6. Restart ports and devices.7. Enable port long-range mode.8. Remotely upgrade the device.
  • Connection aggregation Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 1 aggregation group(s).
  • Long range mode Ports 1 to 24: up to 300 m. Long range performance may vary depending on camera model or cable condition.
  • Loop Prevention Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP.
  • PoE Watchdog Ports 1 to 24: auto detect and restart the cameras that do not respond.
  • Port isolation Ports 1 to 24: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • System Maintenance Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.
  • VIP Port Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
  • VLANs VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLANs.

Weight2.83 kg
