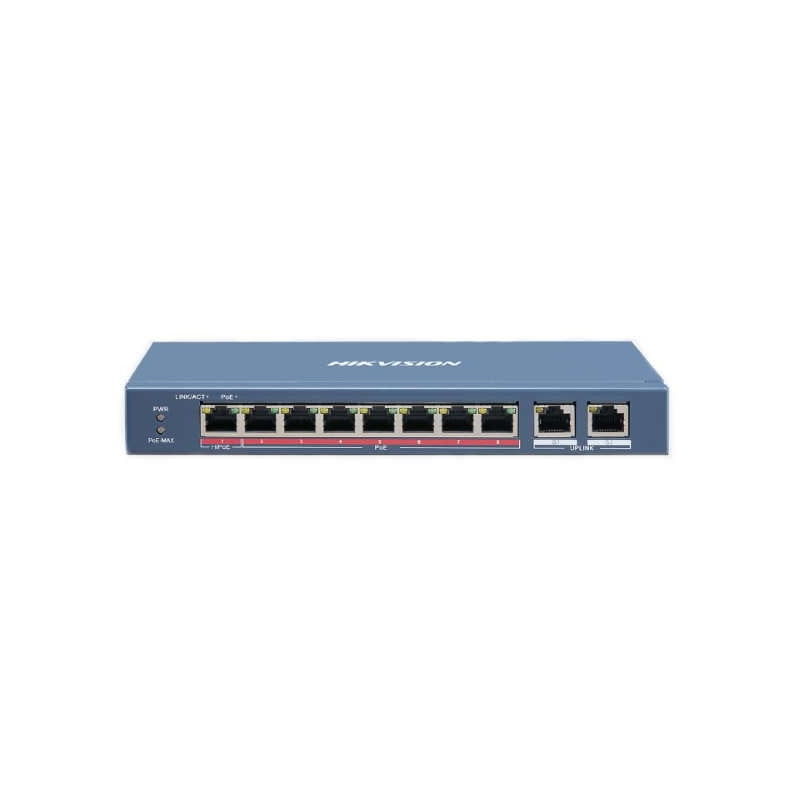

Hikvision 10-port 8 PoE switch DS-3E0310HP-E
Product reference: 26-6954273693350
  • Up to 300 m POE distance
  • IEEE 802.3bt standard Hi-PoE, Max. 90 W per port
  • 4/8-core adaptive power source
  • 6KV discharge protection

Hikvision 10-port 8 PoE switch DS-3E0310HP-E

Product reference: 26-6954273693350
  • Up to 300 m POE distance
  • IEEE 802.3bt standard Hi-PoE, Max. 90 W per port
  • 4/8-core adaptive power source
  • 6KV discharge protection
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
8292
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • PoE power source
  • PoE standards

    Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

    Ports 2 to 8: IEEE 802.3af, IEEE 802.3at

  • PoE power connector Support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
  • PoE ports Ports 1 to 8
  • Max. port power

    Port 1: 90 W

    Ports 2 to 8: 30 W

  • PoE available power 110W
  • Max. power consumption 120W
  • Network settings
  • Number of ports 1 × 10/100 Mbps Hi-PoE port, 7 × 10/100 Mbps PoE ports, and 2 × 10/100/1000 Mbps RJ45 ports
  • Port type RJ45 port, full duplex, MDI/MDI-X adaptive
  • Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
  • Transmission mode Store-and-forward switching
  • Working mode Standard mode (default); Extend mode
  • Ports are designed for long-distance transmission Ports 1 to 8
  • MAC address table 16 K
  • Switch capabilities 5.6 Gbps
  • Packet transfer speed 4.166 Mpps
  • Internal Cache 4 Mbit
  • Home
  • Material Metal material, fan-free design
  • Gross weight 1.22 kg (2.69 lb)
  • Net weight 0.55 kg (1.21 lb)
  • Dimensions (W × H × D) 217.6 mm × 27.8 mm × 103.35 mm (8.6" × 1.1" × 4.1")
  • Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
  • Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Moisture resistance 5% to 95% (no condensation)
  • Moisture resistance under storage conditions 5% to 95% (no condensation)
  • Energy source 48VDC, 2.5A
  • Idle energy consumption 10W

Manufacturer codeSWITCHDS3E0310HPE
ManufacturerHikvision
Weight1.11 kg
