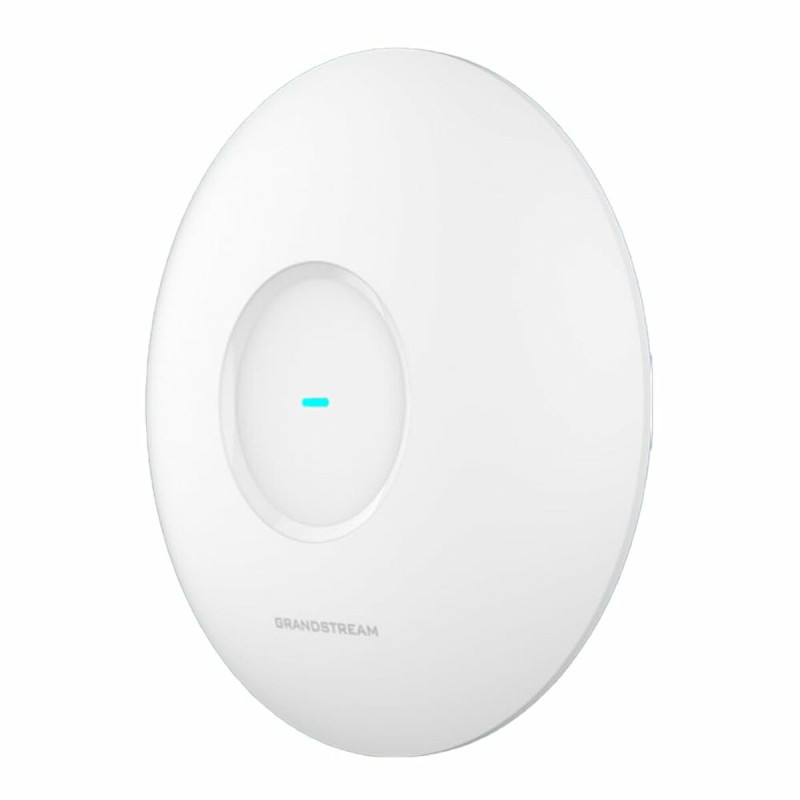

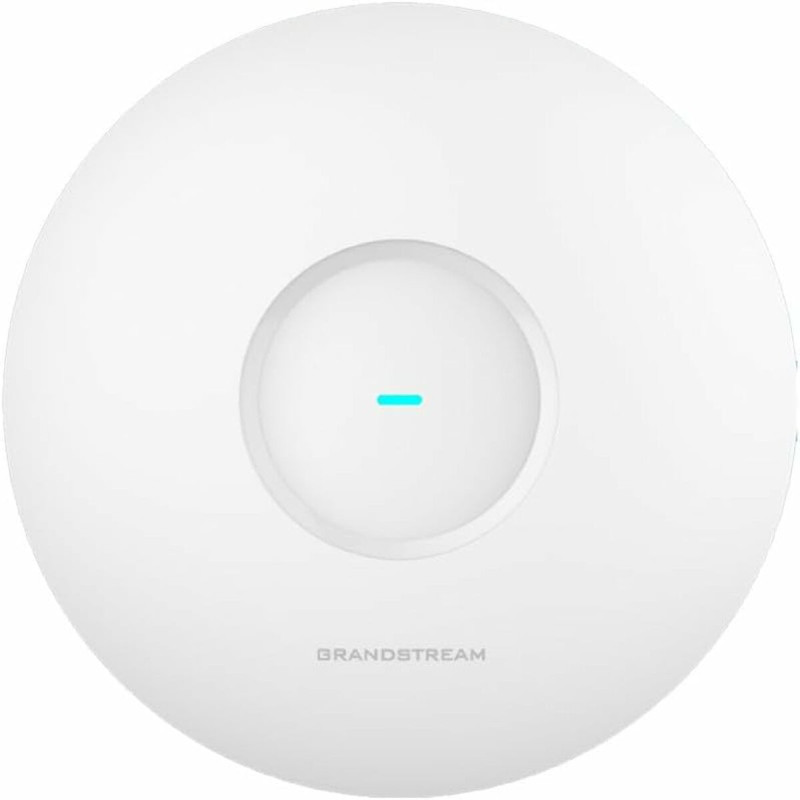

Access point GrandStream GWN7670

GWN7670 is a business access point Wi-Fi 7, ideal for small and medium-sized businesses for building Wi-Fi networks of the new generation. It offers two-pass 2x2:2 MIMO with DL/UL OFDMA technology and a specially designed antenna for maximum network throughput and extended Wi-Fi coverage. Thanks to 4096 QAM modulation, Wi-Fi 7 achieves a significant increase in data transfer speed. Technologie MLO optimizes the use of spectrum resources to ensure a smooth experience for every user. In order to ensure easy installation and management, GWN7670 uses the design of a distributed management network without a controller (controller), and the controller is built into the web user interface of the product GWN7670. It is also supported by GDMS Networking and GWN Manager, cloud Grandstream and on-premise WiFi management.
It is the ideal Wi-Fi AP for voice over Wi-Fi (voice-over-Wi-Fi) and offers seamless connection to IP phones Grandstream with Wi-Fi support. With the support of advanced QoS, real-time applications with low latency, mesh networks, captive portals, placement of BT s BLE 5.3, 256 concurrent clients on AP and 2 x 2.5 gigabit network ports with PoE+, the GWN7670 is an ideal Wi-Fi access point for deploying wireless networks with medium to high density users.
Key features:
- Integrated Wi-Fi 7 a 2x2:2 MIMO s MLO, 4KQAM, MRU, Preamble Puncturing Technology
- Dosah coverage up to 175 meters
- Podporuje 256 soubéjnich klientských devices Wi-Fi
- Advanced QoS to ensure the performance of applications with low latency in real time
- Secure boot against hackers and critical users dat/kontrol szměstů digitalič podpisů, unique security certificate/náhodné odvodnej heslo na zařízení
- Adaptation of own power supply during autodetection of PoE+
- Built-in controller manages up to 50 local access points GWN; GDMS Networking offers on-premise software management AP and GWN Manager offers on-premise software management AP
Parameters:
Klientská zařízení:áž 256
Throughput 2,4G:688Mbps (2x2:2 MIMO)
Throughput 5G: 2882Mbps (2x2:2 MIMO)
Throughput 6G: N/A
Range: up to 175 m
Síťová rozhraní:2x 2.5G Ethernet WAN/LAN
PoE/PoE+: PoE 802.3af/802.3at; maximum consumption: 14.5 W
Wi-Fi standardy: IEEE 802.11 a/b/g/n/ac/ax/be
SSIDs: 32 SSIDs total, 16 per radio (2.4GHz 5GHz)
Antény: 5 jednofrequenzích antén
Wi-Fi and security systems: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, secure boot and recording of critical data/control using digital signatures, unique security certificate and random default password for each device.
Dimensions: 185mmx185mmx44,5mm
Mounting: Internal wall mounting nebo strop, sady jsou sähät vans
Manufacturer's website: https://www.grandstream.com/products/networking-solutions/indoor-wifi-access-points/product/gwn7670
