100W USB-C HDMI Docking Station

Office docking station USB-C that supports up to 2 external monitors with 4K resolution. The station is compatible with any notebook equipped with a USB-C or Thunderbolt 3 port. 6x USB ports, reliable and fast connection to the corporate network thanks to the integrated LAN port, and support for monitor installation, all of this makes this docking station an ideal companion for professionals. Naturally, it supports charging your notebook or tablet up to 100 W.
The integrated latest DP 1.4 protocol also supports 5K/60 Hz resolution, which is appreciated by professional graphic designers, data analysts, film editors or high-definition video enthusiasts.
The docking station can be purchased in three variants:
1. without the included charging adapter USB-C (product code C31HDMIDPDOCKPD)
2. with attached adapter with power 65 W (product code C31HDMIDPDOCKPD65/UK)
3. with attached adapter with power 100 W (product code C31HDMIDPDOCKPD100/UK)
Note: the macOS operating system does not support Multi Stream Transport technology (MST), which means that when connected to macOS, the same image will be displayed on both connected monitors.

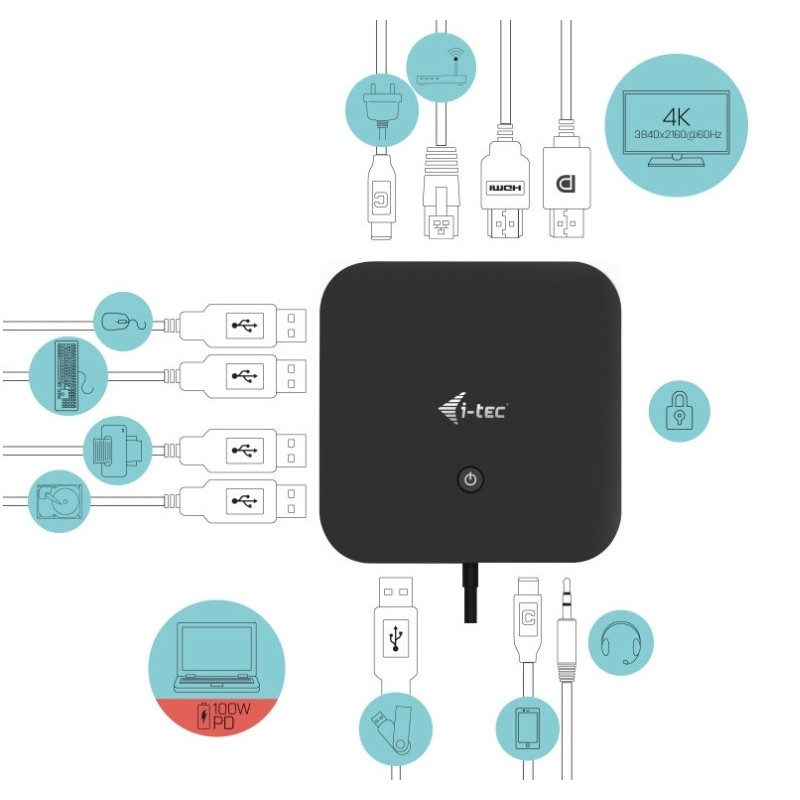

• Connect up to two external monitors 4K/30 Hz
• Power supply: up to 100 W
• 1x HDMI, 1x DisplayPort
• 3x USB 3.1, 1x USB-C 3.1 and 2x USB 2.0 allow simple connection of your USB devices and peripherals. Gigabit Ethernet RJ-45 provides a reliable, robust and high-speed Internet connection with support for speeds of 10/100/1000 Mbps
• Combined connector for audio and microphone on the front panel
• Zámok Kensington will provide protection against theft, especially in the environment of public places
• Vyvancič dokovajs stanice enables maximum savings in electrical energy
• The docking station supports the VESA mount for intelligent vertical installation of monitors with VESA support
• Supports Windows 10, macOS X, Android, ChromeOS and Linux
The docking station can also be used without a connected power adapter. In such cases, there will always be functional video outputs, network port LAN (RJ-45), audio/microphone and both ports USB 2.0. Porty USB 3.0 and data port USB-C, however, may not work when connecting devices with higher energy requirements (for example, SSD disks, especially NVMe units). In such cases, the docking station may be turned off. In order to use all the ports and achieve the maximum transfer speed, it is recommended to use a docking station with a connected power adapter.
Note: When connected to the Android operating system, the docking station will only work with connected power adapters.
Specifications
• 1x integrated cable USB-C for connection to the charger (100 cm)
Docking technology: USB-C (MST)
• Power Delivery: up to 100 W
Video port: 1x HDMI, 1x DisplayPort (supporting DP++)
• Resolutions:
> DP 1.2 HBR2:
• 1 monitor - 1x HDMI ' up to 4K/30 Hz
• 1 monitor - 1x DisplayPort 'up to 4K/30 Hz
• 2 monitors - 1x DisplayPort + 1x HDMI ' up to 2x 1080p/60 Hz*
> DP 1.4 HBR3:
• 1 monitor - 1x HDMI ' up to 4K/60 Hz
• 1 monitor - 1x DisplayPort 'up to 4K/60 Hz
• 2 monitors - 1x DisplayPort + 1x HDMI ' up to 2x 1440p/60 Hz*
• 2 monitors - 1x DisplayPort + 1x HDMI ' up to 2x 4K/30 Hz*
> DP 1.4 HBR3 DSC:
• 1 monitor - 1x HDMI ' up to 4K/60 Hz
• 1 monitor - 1x DisplayPort 'up to 5K/60 Hz
• 2 monitors - 1x DisplayPort + 1x HDMI ' up to 2x 4K/60 Hz*
• 1x port USB-C Gen. 2 (len pre date)
• 1x port USB-C Gen. 2 + PD (data + data)
• 3x USB 3.0 ports
• 2x USB 2.0 ports
• 1x port Ethernet GLAN RJ-45 (Realtek RTL8153)
• 1x 3.5 mm combined audio port
• LED indication
• ON/OFF switch not switched on and switched off docking stations
• Kensington lock support
• OS: Windows 10, macOS, Android, Chrome OS and Linux with latest updates
• Rosemary product: 113 x 113 x 40 mm
• Product weight: 245 g
• Rosemary balenia: 338 x 150 x 55 mm
• Package weight: 458 g
* The operating system macOS does not support the Multi Stream Transport technology (MST), which means that when connected to macOS, the same image will be displayed on both connected monitors.
Hardware requirements:
• The device has free USB-C or Thunderbolt 3 ports
Poziadavky na funkusi Power Delivery:
• Device with free ports USB-C or Thunderbolt 3 with "Power Delivery" support
Video output requirements:
• Devices with free USB-C ports support "DisplayPort Alternate Mode" or Thunderbolt 3 ports
• If you use refresh rates higher than 60 Hz, you need a monitor that supports these refresh rates
Operating system:
• Windows 10, macOS*, Android, Chrome OS and Linux with the latest updates
* The operating system macOS does not support the Multi Stream Transport technology (MST), which means that when connected to macOS, the same image will be displayed on both connected monitors.
Note: When connected to the Android operating system, the docking station will only work with connected power adapters.
Package contents
• Product
• Instructions
• Charging adapter USB-C 65 W (lens variant with product number C31HDMIDPDOCKPD65/UK)
• Charging adapter USB-C 100 W (len vo variant with product numbers C31HDMIDPDOCKPD100/UK)
