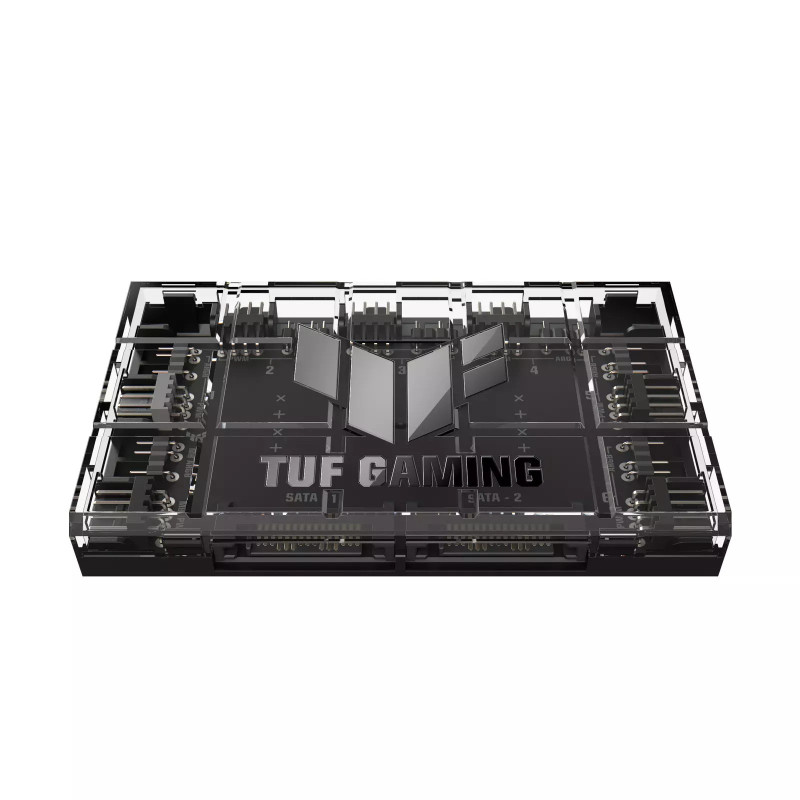

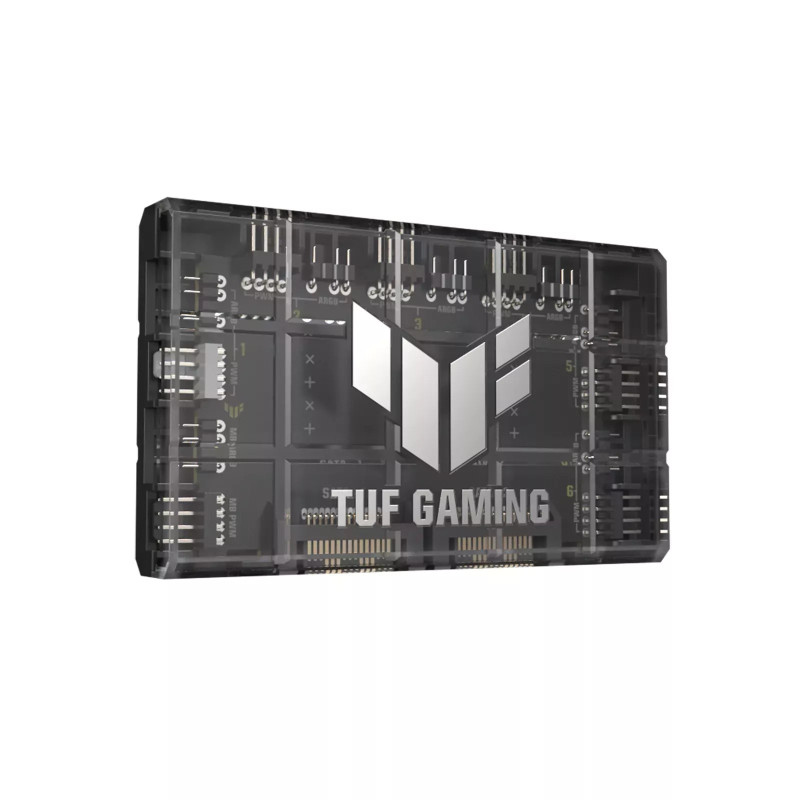

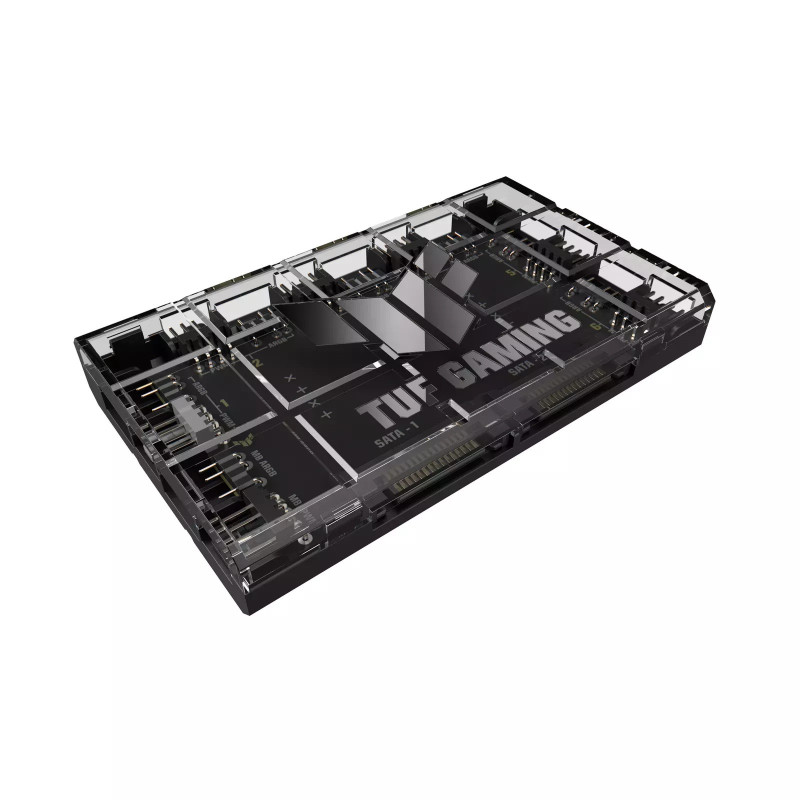

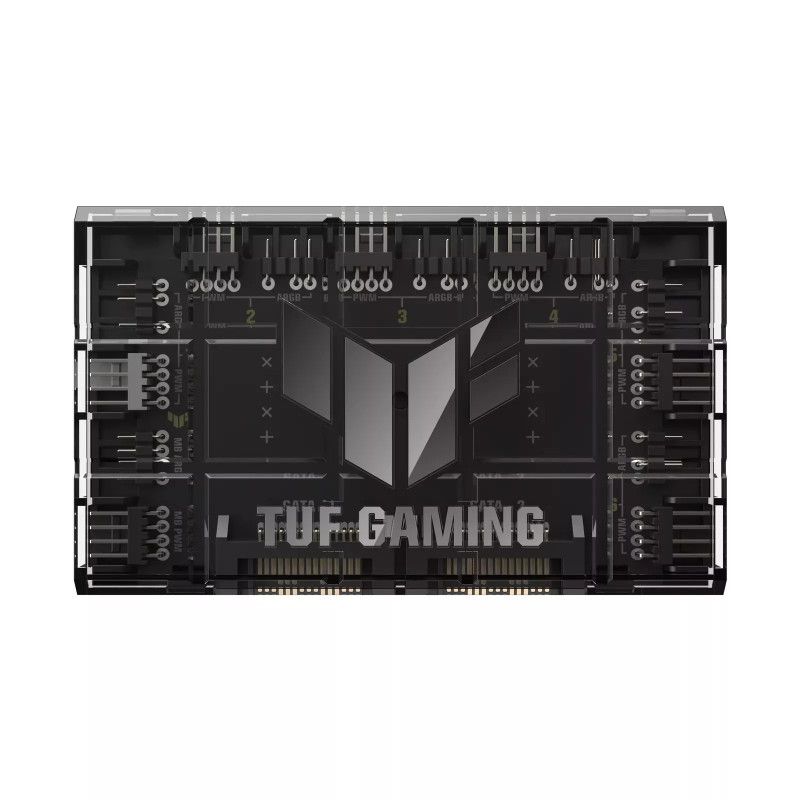

Asus TUF Gaming ARGB PWM Fan Hub fan controller

The Asus TUF Gaming ARGB PWM Fan Hub enables control of up to six PWM fans and six ARGB devices. It features a magnetic mount, SATA dual-power input, and LED indicators for each port. Ideal for organized, high-performance PC builds with full RGB synchronization support.

Specifications:
Model: TUF Gaming ARGB PWM Fan Hub
Type: Fan and ARGB controller
PWM ports: 6 × 4-pin
ARGB ports: 6 × 3-pin (5 V)
Fan voltage: 12 V DC
Max current per port: 2 A
Total load: up to 9 A
Power input: 2 × SATA (5 V and 12 V)
Max PWM output power: 108 W
Max ARGB output power: 45 W
Lighting sync: ASUS Aura Sync compatible
Mounting: Magnetic base
Indicators: Power and port status LEDs
Protection: Overcurrent and short circuit protection
Dimensions: 115 × 69 × 17.7 mm
Weight: 0.081 kg
Compatibility: Motherboards with PWM and 5 V ARGB headers
Model year: 2024

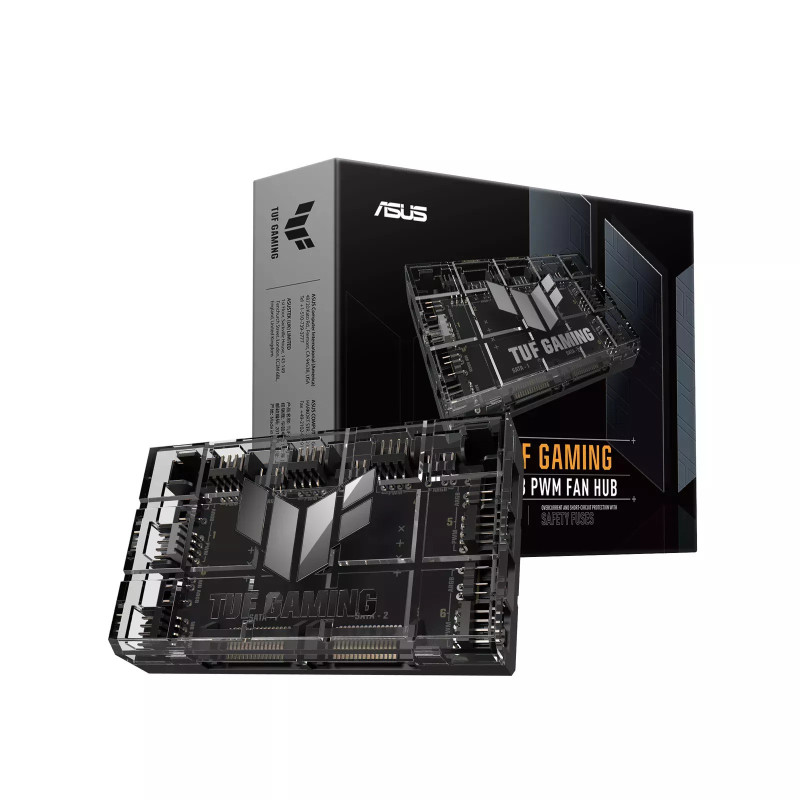

Package contents: Controller, PWM cable, ARGB cable, manual

Physical parameters:
Weight: 0.081 kg
Gross weight: 0.25 kg
Package dimensions
Length, m: 0.20
Height, m: 0.15
Width, m: 0.04
