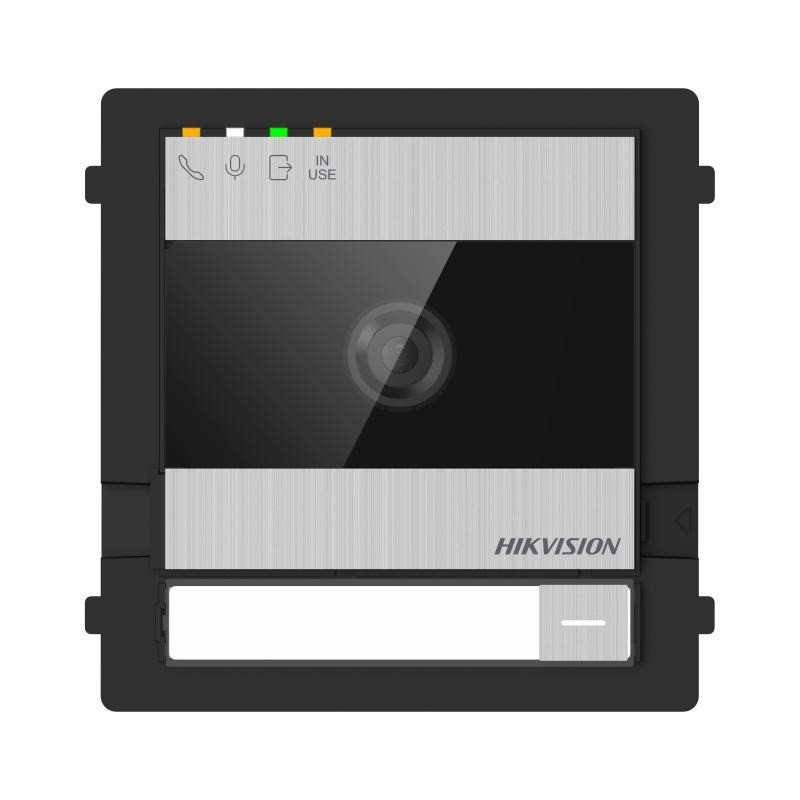

Analog 2-wire doorbell Hikvision DS-KD7003EY-IME2
Product reference: 26-6931847118044
  • Model: Hikvision DS-KD7003EY-IME2
  • Material: Stainless steel
  • Modular design
  • Camera: 2 MP
  • Capacity: 2000 users
  • Signal inputs: 2 Alarm inputs
  • Connectors: 2x RS-485
Analog 2-wire doorbell Hikvision DS-KD7003EY-IME2

Analog 2-wire doorbell Hikvision DS-KD7003EY-IME2

Product reference: 26-6931847118044
  • Model: Hikvision DS-KD7003EY-IME2
  • Material: Stainless steel
  • Modular design
  • Camera: 2 MP
  • Capacity: 2000 users
  • Signal inputs: 2 Alarm inputs
  • Connectors: 2x RS-485
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
24219 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • System parameters
  • Operating system Embedded Linux operating system
  • ROM 4GB
  • RAM 256MB
  • CPU Embedded Processor
  • Display settings
  • Screen size NA
  • Mode of operation NA
  • Type NA
  • Resolution NA
  • Image settings
  • Additional lighting Low illumination, IR supplementary lights
  • Video standard H.264
  • Lens 1
  • FOV Horizontal: 133°, Vertical: 82°
  • WDR

    Support
  • Resolution 2 MP
  • Audio settings
  • Audio compression format G.711 U, G.711 A
  • Audio input

    Built-in omnidirectional microphone
  • Audio output Built-in speaker
  • Audio compression bit rate 64 Kbps
  • Sound quality Noise suppression and echo cancellation
  • Volume adjustment Adjustable
  • Capacity
  • User capacity 2000
  • Associated indoor station capacities Max.99
  • Sub-door station capacity 16
  • Internet settings
  • Wired internet 10/100 Mbps self-adaptive through 2-wire interface
  • Wi-Fi Only AP mode for configuration
  • Bluetooth NA
  • 3G/4G NA
  • Interfaces
  • Alarm input 2（supports Exit button or Door contact input）
  • Web interface NA
  • TAMPER 1
  • Exit button 1
  • Door contact input 1
  • RS-485 2 (RS485 out for Hikvision's sub module communication, RS485 for reservation)
  • Wiegand NA
  • TF card NA
  • Alarm output NA
  • DIP switch 6-digit DIP switch
  • Shutter control 2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
  • Power interface 48V，Powered by distributor DS-KAD7060EY or 12VDC
  • Two-wire IP interface 1
  • Home
  • Button 0-2 (Flexible adjustment)
  • Installation Surface mounting flush mounting
  • Indicator 4 LED lights(Opening door、Calling、Intercom、In use）
  • Weight With package: 426g ( 0.94lb), Without package: 290g ( 0.64lb)
  • IP protection level IP65 IK08
  • Operating temperature

    -40° C to 60° C (-22° F to 140° F)
  • Working conditions humidity

    10% to 90%
  • Size

    99.5 mm × 98.5 mm × 35 mm (3.92" × 3.88" × 1.37")
  • Battery /
  • Power supply 48V，Powered by distributor DS-KAD7060EY or 12VDC
  • Application environment Outdoor
  • Energy consumption ≤ 6W
  • Language English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese

Manufacturer codePSKKD7003EYIME2
ManufacturerHikvision
Weight0.29 kg
