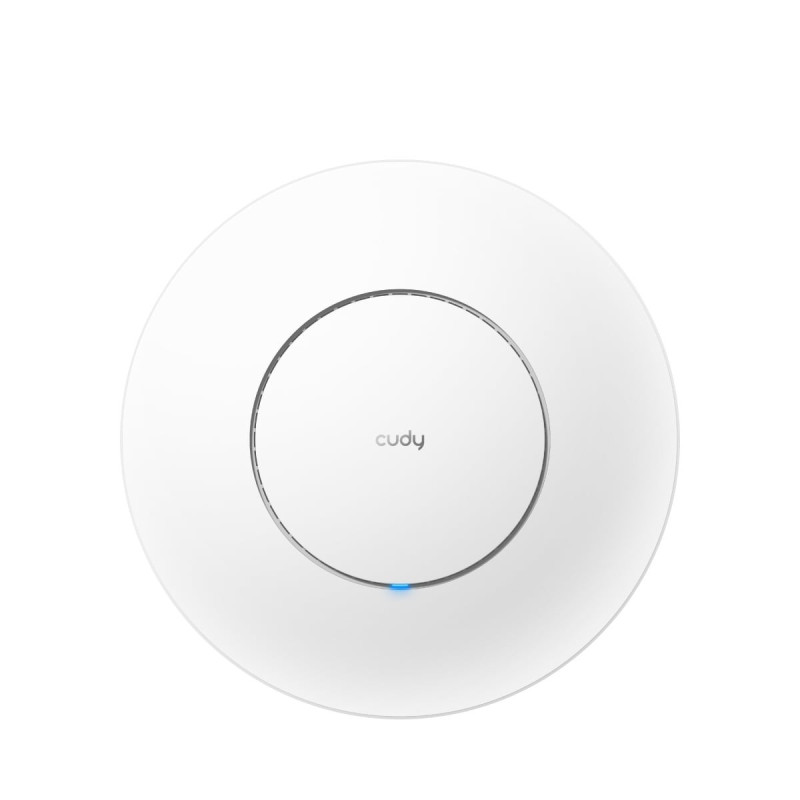

Access point CUDY AP3000 (Wi-Fi 6)
Product reference: 26-6971690792978
  • Type: Access Point
  • Model: CUDY AP3000
  • Wi-Fi standard: Wi-Fi 6
  • Ports: 1 x 2.5Gbps RJ45
  • Wi-Fi speed: up to 574 Mbps @ 2.4 GHz; 2402 Mbps @ 5 GHz
  • MIMO technology: 2x2 @ 2.4 GHz; 3x3 @ 5 GHz
  • Operating distance: 200 m
  • Power consumption: ≤ 12 W
  • Power supply: 802.3af/at PoE; Passive PoE; 12V 1.5A DC
  • Operating temperature: -10°C to 60°C
  • In stock
Access point CUDY AP3000 (Wi-Fi 6)

Access point CUDY AP3000 (Wi-Fi 6)

Product reference: 26-6971690792978
  • Type: Access Point
  • Model: CUDY AP3000
  • Wi-Fi standard: Wi-Fi 6
  • Ports: 1 x 2.5Gbps RJ45
  • Wi-Fi speed: up to 574 Mbps @ 2.4 GHz; 2402 Mbps @ 5 GHz
  • MIMO technology: 2x2 @ 2.4 GHz; 3x3 @ 5 GHz
  • Operating distance: 200 m
  • Power consumption: ≤ 12 W
  • Power supply: 802.3af/at PoE; Passive PoE; 12V 1.5A DC
  • Operating temperature: -10°C to 60°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
9776 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General
  • Model version AP3000 1.0
  • Processor 1.3 GHz Dual-Core CPU
  • Flash/ROM 256MB (2Gbit) NAND
  • DDR/RAM 512MB (4Gbit) DDR4
  • 5GHz Wi-Fi speed 2402 Mbps
  • 2.4 GHz Wi-Fi speed 574 Mbps
  • 5 GHz Wi-Fi streams 3T3R (3×3 MIMO)
  • 2.4 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • Wi-Fi antennas 5× Internal
  • Max. 5 GHz antenna gain 5.6 dBi
  • Max. 2.4 GHz antenna gain 4.8 dBi
  • FEM or PA/LNA 5 GHz: 3× External, 2.4 GHz: 2× External
  • Beamforming True
  • Operating range Max: 200 m (656 ft); varies with layout and wall materials
  • Wall operation Two wooden walls (<10 cm/4") OR one concrete wall (<20 cm/7") or two concrete walls (<10 cm/4")
  • 2.5G RJ45 Ports 1
  • Notes on Ethernet Accepts PoE powering
  • LED indicators System
  • Physical buttons Reset Button
  • Power input DC Jack, PoE via Ethernet Port
  • Feeding methods DC, 802.3at/af PoE, Passive PoE
  • DC Power 12V 1.5A
  • Passive PoE 48~57V
  • Power adapter AP3000 | DC Adapter: Input 100 ~ 240V, 50/60 Hz AC, Output 12V 1.5A DC; AP3000_P | PoE Adapter: Input 100 ~ 240V, 50/60 Hz AC, Output 48V Passive PoE
  • Maximum energy consumption 12W (48V PoE), 12W (DC)
  • Standby power consumption 6.1W (48V PoE), 6.1W (DC)
  • Advanced Reliability Hardware Watchdog
  • EMS Protection ESD: Contact 4kV, Air 8kV
  • Working temperature -10 ~ 60 (14 ~140)
  • Storage temperature -40 ~ 70 (-40 ~ 158 )
  • Operating humidity 10% ~ 90% non-condensing
  • Storage humidity 5% ~ 90% non-condensing
  • Certificates FCC, CE
  • Installation options Wall-mount, Ceiling-mount
  • Dimensions Φ231.9×57.1 mm (Φ9.13×2.25 inches)
  • Product weight 494 g (17.43 oz.)
  • Package contents AP3000, Power Adapter, Mounting Kit, Ethernet Cable, Installation Guide

Manufacturer codeCUDYAP3000
ManufacturerCudi
Weight0.639 kg
