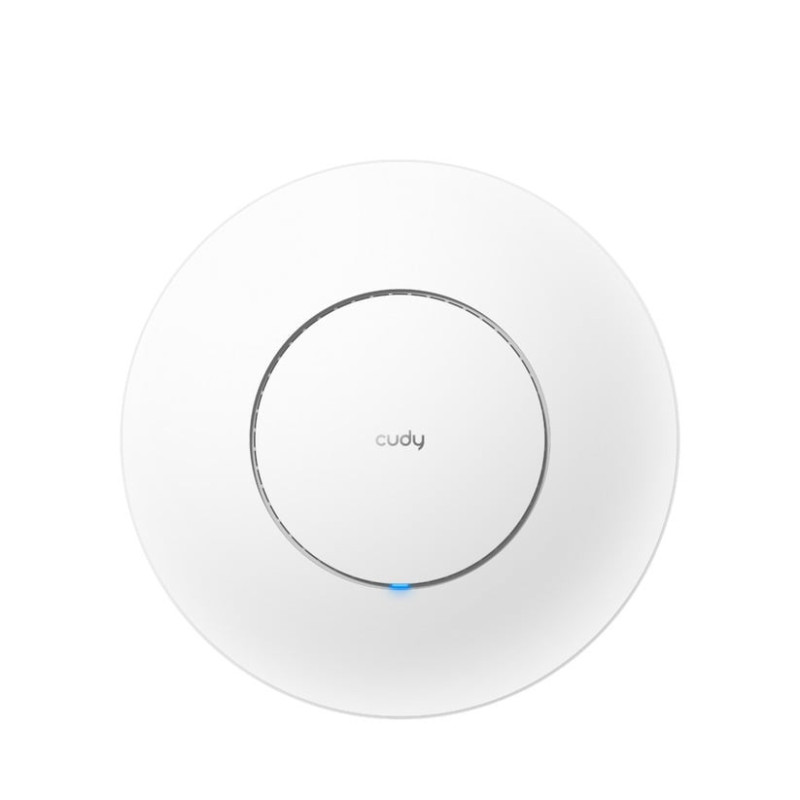

Access point CUDY AP1300 (Wi-Fi 5)
Product reference: 26-6971690792022
  • Type: Access Point
  • Model: CUDY AP1300
  • Wi-Fi standard: Wi-Fi 5
  • Ports: 1 x 1Gbps RJ45
  • Wi-Fi speed: up to 300 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • MIMO technology: 2x2 MIMO
  • Operating distance: 170 m
  • Power consumption: ≤ 11 W
  • Power supply: 802.3af/at PoE or Passive PoE or 12V 1A DC
  • Operating temperature: -10°C to 65°C
  • In stock
Access point CUDY AP1300 (Wi-Fi 5)

Access point CUDY AP1300 (Wi-Fi 5)

Product reference: 26-6971690792022
  • Type: Access Point
  • Model: CUDY AP1300
  • Wi-Fi standard: Wi-Fi 5
  • Ports: 1 x 1Gbps RJ45
  • Wi-Fi speed: up to 300 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • MIMO technology: 2x2 MIMO
  • Operating distance: 170 m
  • Power consumption: ≤ 11 W
  • Power supply: 802.3af/at PoE or Passive PoE or 12V 1A DC
  • Operating temperature: -10°C to 65°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
4252 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Model version AP1300 1.0
  • CPU chipset MT7621DAT
  • Processor information 880 MHz Dual-Core CPU
  • Flash/ROM memory 16 MB (128 Mbit) NOR
  • DDR/RAM memory 128MB (1Gbit) DDR3
  • 5 GHz Wi-Fi Speed 867Mbps
  • 2.4 GHz Wi-Fi speed 300Mbps
  • 5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • Wi-Fi antennas 4× Internal
  • 5 GHz antenna gain max 4.64 dBi
  • 2.4 GHz antenna gain max 5.31 dBi
  • FEM or PA/LNA 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
  • Beamforming True
  • Operating range Max: 170 m (558 ft); Indoor WiFi range varies depending on layout and wall materials
  • Wall permeability Two wooden walls <10 cm (4"), One concrete wall <20 cm (7")
  • Gigabit RJ45 Ports 1
  • Ethernet Notes Accepts PoE powering
  • LED indicators System
  • Physical buttons Reset Button
  • Power input DC Jack, PoE via Ethernet Port
  • Feeding methods DC, Passive PoE, 802.3at/af PoE
  • DC input 12V 1A
  • Passive PoE Input 24~57V
  • Power adapter AP1300 | DC Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1A DC; AP1300_P | PoE Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 48V Passive PoE
  • Max. power consumption Max (PoE): 11 W, Max (DC): 7.5 W
  • Standby power consumption 4.008 W
  • Advanced Hardware Watchdog
  • Electromagnetic compatibility ESD: Contact: 4kV; Air: 8kV
  • Working temperature -10 ~ 65 (14 ~149)
  • Storage temperature -40 ~ 70 (-40 ~ 158 )
  • Working humidity 10% ~ 90% non-condensing
  • Storage humidity 5% ~ 90% non-condensing
  • Certificates FCC, CE
  • Installation Wall-mount, Ceiling-mount
  • Measurements Φ231.9 × 57.1 mm (Φ9.13 × 2.25 in)
  • Product weight 400g (14.11oz.)
  • Package contents AP1300, Power Adapter, Mounting Kit, Ethernet Cable, Installation Guide

Manufacturer codeCUDYAP1300
ManufacturerCudi
Weight0.511 kg
