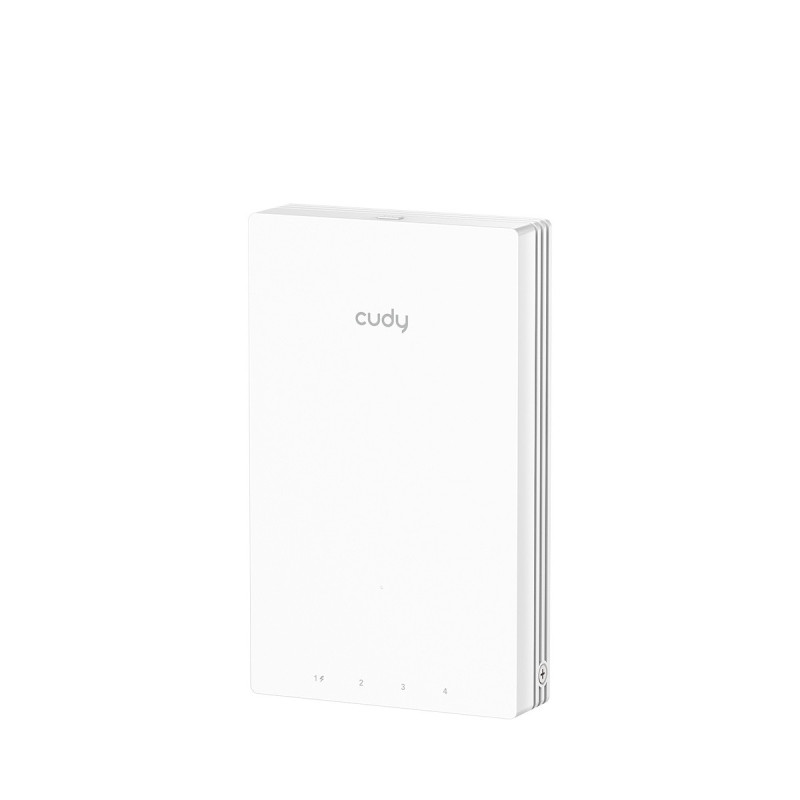

Access point CUDY AP1300 Wall (Wi-Fi 5)
Product reference: 26-6971690793432
  • Type: Access Point
  • Model: CUDY AP1300 Wall 1.0
  • Wi-Fi standard: Wi-Fi 5
  • Ports: 5 x 1Gbps RJ45
  • Wi-Fi speed: up to 300 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • MIMO technology: 2x2 MIMO
  • Operating distance: 80 m
  • Power consumption: ≤ 12 W
  • Power supply: 802.3af/at PoE; 24V Passive PoE
  • Operating temperature: 0°C to 40°C
Access point CUDY AP1300 Wall (Wi-Fi 5)

Access point CUDY AP1300 Wall (Wi-Fi 5)

Product reference: 26-6971690793432
  • Type: Access Point
  • Model: CUDY AP1300 Wall 1.0
  • Wi-Fi standard: Wi-Fi 5
  • Ports: 5 x 1Gbps RJ45
  • Wi-Fi speed: up to 300 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • MIMO technology: 2x2 MIMO
  • Operating distance: 80 m
  • Power consumption: ≤ 12 W
  • Power supply: 802.3af/at PoE; 24V Passive PoE
  • Operating temperature: 0°C to 40°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
4624 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General data
  • Model version AP1300 Wall 1.0
  • CPU 880 MHz Dual-Core CPU
  • Flash/ROM 16 MB (128 Mbit) NOR
  • DDR/RAM 128MB (1Gbit) DDR3
  • 5GHz Wi-Fi speed 867Mbps
  • 2.4 GHz Wi-Fi speed 300Mbps
  • 5 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • Wi-Fi antennas 2× Internal
  • Max. 5 GHz antenna gain 5.6 dBi
  • Max. 2.4 GHz antenna gain 5.0 dBi
  • FEM or PA/LNA 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
  • Beamforming True
  • Operating range Max: 80 m (262 ft)
  • Wall operation Two wooden walls < 10 cm, One concrete wall < 20 cm
  • Gigabit RJ45 Ports 5
  • Notes on Ethernet Accepts PoE powering
  • LED indicators System
  • Physical buttons Reset Button, LED On/Off Button (configurable for LED/Wi-Fi)
  • Power input PoE via Ethernet Port
  • Feeding methods Passive PoE, 802.3af/at PoE
  • Passive PoE voltage 48V
  • Maximum power consumption 12W (PoE)
  • Standby power consumption 4W
  • Advanced features Hardware Watchdog
  • EMS Protection ESD Contact: 4kV, Air: 8kV
  • Operating temperature 0°C ~ 40°C (32°F ~ 104°F)
  • Storage temperature -40°C ~ 70°C (-40°F ~ 158°F)
  • Operating humidity 10% ~ 90% non-condensing
  • Storage humidity 5% ~ 95% non-condensing
  • Certificates FCC, CE
  • Installation type Wall-mount
  • Dimensions 143×86×27.6 mm (5.63×3.39×1.09 inches)
  • Product weight 261.2 g (9.21 oz.)

Weight0.28 kg
