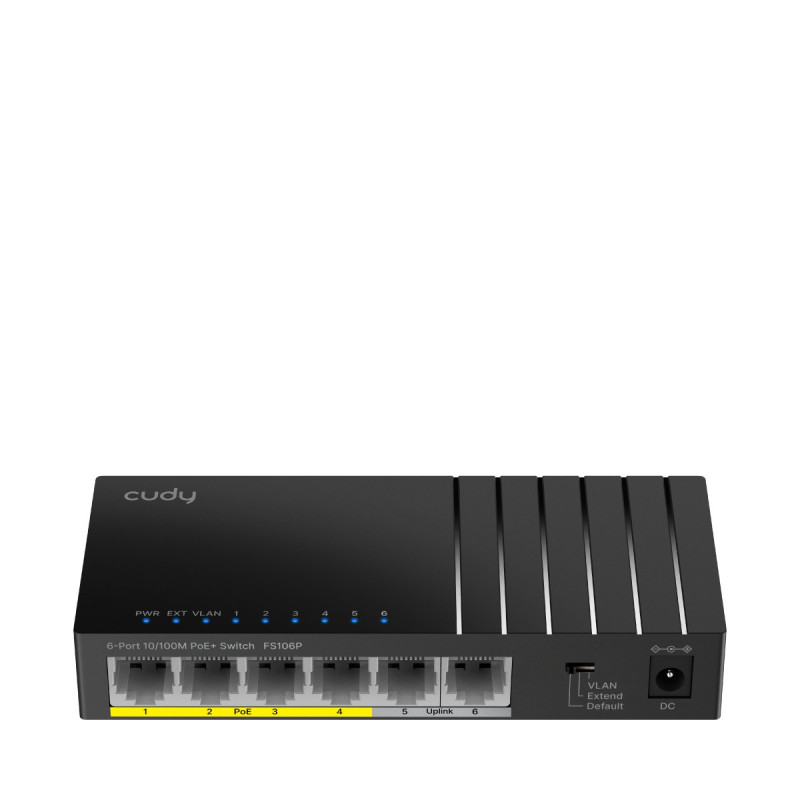

6-port switch CUDY FS106P (Unmanaged)
Product reference: 26-6971690792152
  • Type: Switch (unmanaged)
  • Brand: CUDY
  • Model: FS106P
  • Housing: Plastic
  • Ports: 6 x 100 Mbps RJ45 (4 x PoE)
  • PoE power: 36 W (up to 30 W per port)
  • Transmission capacity: 1.2 Gbps
  • MAC address table: 2048
  • Power supply: 54V 0.66A DC
6-port switch CUDY FS106P (Unmanaged)

6-port switch CUDY FS106P (Unmanaged)

Product reference: 26-6971690792152
  • Type: Switch (unmanaged)
  • Brand: CUDY
  • Model: FS106P
  • Housing: Plastic
  • Ports: 6 x 100 Mbps RJ45 (4 x PoE)
  • PoE power: 36 W (up to 30 W per port)
  • Transmission capacity: 1.2 Gbps
  • MAC address table: 2048
  • Power supply: 54V 0.66A DC
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
16,69 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • General information
  • Model version FS106P 1.0
  • Interfaces 10/100 Mbps RJ45 Ports 6, 10/100 Mbps RJ45 PoE Ports #1~#4
  • Maximum power per PoE port 30W
  • PoE port notes The PoE ports comply with IEEE 802.3at/af standards.
  • PoE Priority Intelligent Power Management: Automatically disconnect the last powered device when power exceeds budget.
  • Advanced Mode Ports #1~#4
  • VLAN mode ports #1~#4
  • LED Power, Link/ACT of Each Ethernet Port, Extend Status, VLAN Status
  • Power Interfaces DC Jack
  • Physical buttons VLAN/Default/Extend DIP Switch
  • Physical Buttons Note The PoE Watchdog is on under the VLAN/Extend modes and will attempt to reboot the plugged-in but inactive client.
  • Performance Max Copper Speed ​​and Distance Cat. 3 or higher cable: 100 meters at 10 Mbps, Cat. 5 or higher cable: 100 meters at 100 Mbps, Cat. 5e or higher cable: 250 meters at 10 Mbps
  • Copper speed and distance notes 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
  • MAC address table 2048
  • Maximum switching capacity 1.2 Gbps
  • Maximum transfer speed 0.8928 Mpps
  • Large frames 2 KB
  • Packet buffer 570 Kbit
  • Power supply Power Methods DC, Power Input 54V⎓0.66A
  • Power Adapter in the Box Input: 100-240V~, 50/60Hz, Output: 54V⎓0.93A
  • Power source 36W
  • Maximum power excluding PoE 2W
  • Switching 802.3 Protocols 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3x Flow Control, 802.3af PoE, 802.3at PoE
  • Reliability EMC IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV, IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
  • Environmental protection Operating Temperature: 0~40 (32~104 ), Storage Temperature: -40~70 (-40~158 ), Operating Humidity: 10~90% non-condensing, Storage Humidity: 10~95% non-condensing
  • Mechanics Dimension 138×61.5×24 mm, 5.43×2.42×0.94 inches
  • Product weight 88.0 g (3.1 oz.)
  • Housing material Plastic
  • Installation Desktop, Wall-mount
  • Package contents FS106P, Power Adapter, Power Cord, Installation Guide

Manufacturer codeSWITCHCUDYFS106P
ManufacturerCudi
Weight0.3 kg
