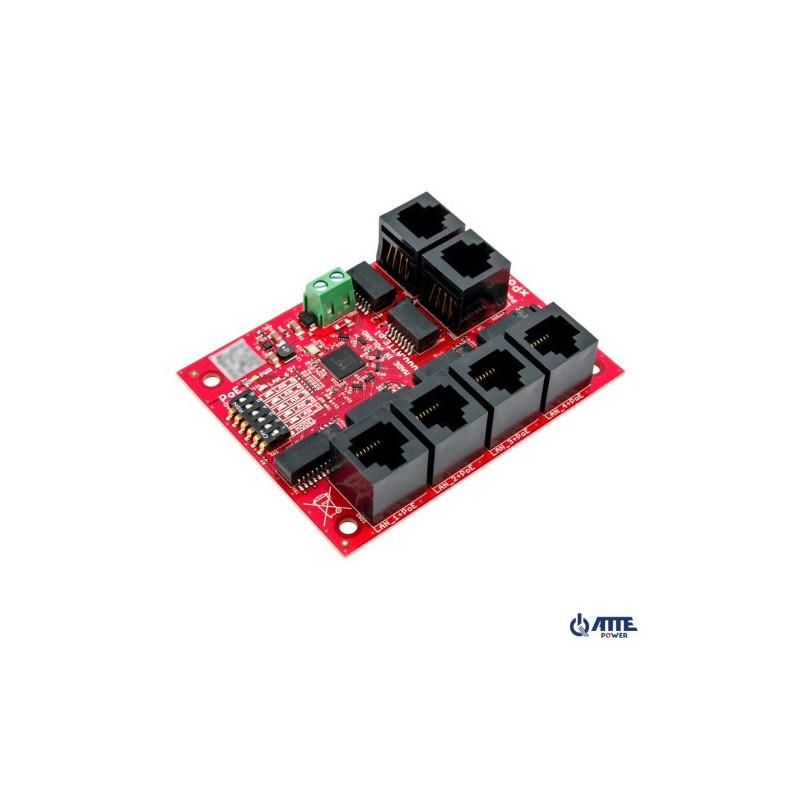

6-port switch ATTE xPOE-6-11-OF
Product reference: 26-SWITCHATTE611OF
  • Type: 6-port switch
  • Model: ATTE xPOE-6-11-OF
  • Ports: 5 x PoE + 1 x LAN
  • PoE power: LAN 5 - up to 70W
  • PoE mode: 2-6 ports (PoE ON/OFF, 802.3at/af)
  • Transmission distance: 1-4 ports > 280 m; 5-6 ports up to 100 m
  • Operating temperature: -25°C...+65°C
  • Without power supply
6-port switch ATTE xPOE-6-11-OF

6-port switch ATTE xPOE-6-11-OF

Product reference: 26-SWITCHATTE611OF
  • Type: 6-port switch
  • Model: ATTE xPOE-6-11-OF
  • Ports: 5 x PoE + 1 x LAN
  • PoE power: LAN 5 - up to 70W
  • PoE mode: 2-6 ports (PoE ON/OFF, 802.3at/af)
  • Transmission distance: 1-4 ports > 280 m; 5-6 ports up to 100 m
  • Operating temperature: -25°C...+65°C
  • Without power supply
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
4690 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Total number of ports 5 PoE Ports, 1 UpLink Port
  • PoE OUT Ports LAN 1 ... LAN 5 PoE Passive
  • PoE IN/OUT Ports LAN 5 PoE Passive
  • LAN 10/100Mbps Ports LAN 1 ... LAN 6
  • LAN + PoE OUT 10/100Mbps Ports LAN 1 ... LAN 5
  • LAN Long Range Ports LAN 1 ... LAN 4 - 10Mbps range up to 280 m
  • Input voltage 10 ... 56 V
  • PoE output voltage Vout = Vin
  • Maximum output power per port PoE Passive LAN 1 ... LAN 4 - 40 W, LAN 5 - 70 W
  • Output power control PoE ON/OFF switch - positions 2...6 (LAN 1...LAN 5)
  • Surge protection LAN 1 ... LAN 6
  • Overload protection LAN 1 ... LAN 4 overload protection 0.75A, LAN 5 overload protection 1.25A
  • Energy indication LED PWR (white) - power present
  • PoE indication LED LAN 1 ... LAN 5 (red) - PoE power present
  • Transmission indication LED LAN 1 ... LAN 6 (green) - link and data transmission
  • Operating temperature range -25°C...+65°C
  • Dimensions (W x H x D) 87 x 68 x 19 mm
  • Weight 0.056 kg
  • Housing construction Built-in module
  • Installation Snap-in spacer pins, mounting holes with 10.8 mm pitch
  • EAN code 5902143690481
  • PKWiU code 26.30.23.0
  • HS code 8517 62
  • CN2020 code 8517 62 00

Manufacturer codeSWITCHATTE611OF
ManufacturerAtte
Weight0.06 kg
