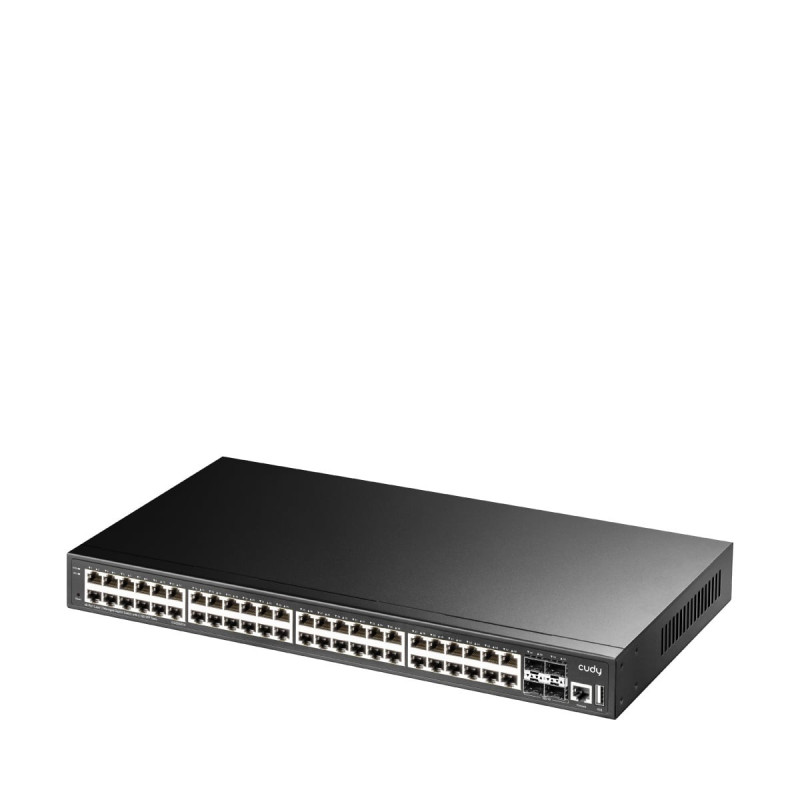

48-port switch CUDY GS5048S4 (Managed)
Product reference: 26-6971690793012
  • Type: Switch (Managed)
  • Model: CUDY GS5048S4 1.0
  • Housing: Metal
  • Ports: 48 x 1 Gbps RJ45, 4 x 10 Gbps SFP+, 1 x Console Port RJ45, 1 x Console Port USB
  • Transmission capacity: 176 Gbps
  • MAC address table size: 32000
  • Transmission performance: 131 Mpps
  • Power supply: 100 - 240V AC
  • Dimensions (WxDxH): 440 mm x 280 mm x 44 mm
  • Operating temperature: -10°C to 50°C
48-port switch CUDY GS5048S4 (Managed)

48-port switch CUDY GS5048S4 (Managed)

Product reference: 26-6971690793012
  • Type: Switch (Managed)
  • Model: CUDY GS5048S4 1.0
  • Housing: Metal
  • Ports: 48 x 1 Gbps RJ45, 4 x 10 Gbps SFP+, 1 x Console Port RJ45, 1 x Console Port USB
  • Transmission capacity: 176 Gbps
  • MAC address table size: 32000
  • Transmission performance: 131 Mpps
  • Power supply: 100 - 240V AC
  • Dimensions (WxDxH): 440 mm x 280 mm x 44 mm
  • Operating temperature: -10°C to 50°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
40675 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General data
  • Model GS5048S4
  • Ethernet ports 48× 10/100/1000 Mbps RJ45 ports, 4× 10G SFP+ ports, 1× RJ45 Console port, 1× USB port
  • Switching capacity 176 Gbps
  • Transmission frequency 131 Mpps
  • MAC address table 32K
  • Packet buffer 16 Mbit
  • Large frames 12 KB
  • Memory 512MB DDR SDRAM
  • Flash memory 32MB
  • VLAN support 4096 VLANs (802.1Q, Port-based, MAC VLAN, IP VLAN, Voice VLAN, Private VLAN, Hybrid VLAN, GVRP)
  • Layer 3 Features IPv4 IPv6 address configuration, Static Routing, RIP v1/v2, OSPF, DHCP Server, Relay, Snooping, ARP/ND configuration
  • Multicast Support IGMP v1/v2/v3 Snooping, MLD v1/v2, Layer 2/3 IPv4/IPv6 multicast, fast leave, querier, suppression
  • Comprehensive protocols STP (802.1D), RSTP (802.1W), MSTP (802.1S), BPDU protection, ERPS
  • QoS features 802.1p, DSCP, Port priority, 8 queues, SP, WRR scheduling, traffic shaping, QoS remarking
  • Security features 802.1X, AAA, RADIUS, TACACS+, DoS protection, IP-MAC-Port-VLAN binding, ARP detection, DHCP attack protection, HTTPS, SSH
  • Access Control L2-L4 packet filtering, Port mirroring, storm suppression, isolation, login restriction by IP/MAC/Port
  • Connecting connections Static LACP (max 32 groups, 8 ports each), load balancing by IP, MAC, or mixed mode
  • Management Interfaces Web (HTTP/HTTPS), CLI (Telnet, SSH v1/v2, Console), SNMP v1/v2/v3, RMON v2, LLDP, SNTP, logs, monitoring
  • Diagnostics Ping, Traceroute, cable detection, CPU/memory monitoring, system logs, alarm classification
  • Energy source Input: AC 100-240V, 50-60Hz
  • Operating temperature -10°C ~ 50°C
  • Storage temperature -40°C ~ 70°C
  • Operating humidity 10% ~ 90% non-condensing
  • Storage humidity 5% ~ 90% non-condensing
  • Dimensions 440×280×44mm
  • Surge protection Common: 4KV, Differential: 2KV
  • ESD protection Air: 8KV, Contact: 6KV

Weight4.185 kg
