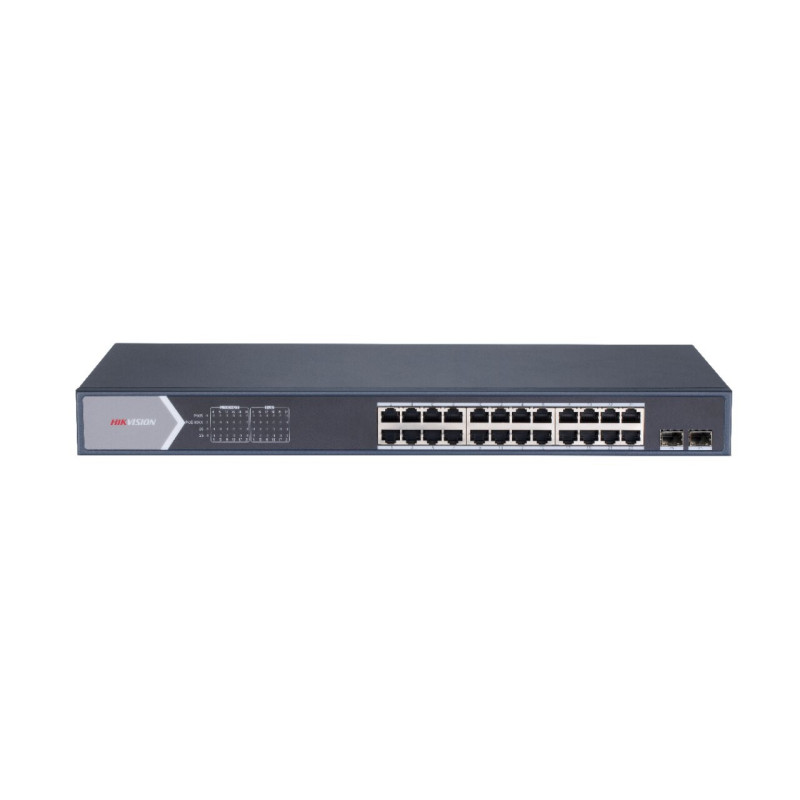

26-port, 24-PoE switch Hikvision DS-3E1526P-SI
Product reference: 26-6941264087441
  • 26 ports
  • 24 × gigabit PoE ports, and 2 × gigabit optical ports
  • PoE ports: 1 to 24
  • 1 Uplink
  • 300m -10Mbps
  • 802.3af/at
  • Maximum power: 370W
  • 6kV
26-port, 24-PoE switch Hikvision DS-3E1526P-SI

26-port, 24-PoE switch Hikvision DS-3E1526P-SI

Product reference: 26-6941264087441
  • 26 ports
  • 24 × gigabit PoE ports, and 2 × gigabit optical ports
  • PoE ports: 1 to 24
  • 1 Uplink
  • 300m -10Mbps
  • 802.3af/at
  • Maximum power: 370W
  • 6kV
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
37970 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Network settings
  • Number of ports 24 × Gigabit PoE ports, and 2 × Gigabit fiber optical ports
  • Port type RJ45 port, full duplex, MDI/MDI-X adaptive
  • Working mode

    Standard mode (default)

    Extend mode
  • Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
  • Transmission mode Store-and-forward switching
  • MAC address table 8 K
  • Internal cache memory 4.1 Mbits
  • Switching capacity 52 Gbps
  • Packet forwarding speed 36.688 Mpps
  • PoE
  • PoE standard IEEE 802.3af, IEEE 802.3at
  • PoE power connector End span: 1/2(-), 3/6(+)
  • PoE port Ports 1 to 24
  • Max PoE port power 30W
  • PoE available power 370W
  • Software features
  • Port configuration Port rate configuration, flow control, and ports enabling
  • Device maintenance Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
  • Link aggregation Static link aggregation supported
  • Long range mode Up to 300 m transmission
  • PoE configuration

    PoE watchdog: Ports 1 to 24 auto detect and restart the cameras that do not respond.

    PoE enabling: Support
  • Storm control Storm control of unknown unicast, multicast and broadcast
  • Port mapping Support
  • QoS WRR and SP scheduling and port priority
  • VLANs 4094 VLANs
  • STP STP and RSTP protocols
  • Port insulation Ports in isolation group cannot communicate with each other.
  • LLDP LLDP protocol supported for port configuration, global configuration and neighbor discovery
  • Port speed limit Rate-limiting for ingress and egress ports
  • SNMP SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
  • Home
  • Size (W×H×D) 440 mm × 221 mm × 44 mm (17.32" × 8.7" × 1.73")
  • Storage conditions (temperature) -40°C to 85°C (-40°F to 185°F)
  • Weight with packaging 3.535 kg (7.79 lb)
  • Weight without packaging 2.975 kg (6.56 lb)
  • Power consumption in sleep mode 30W
  • Frame Metal material
  • Working conditions (temperature) -10°C to 55°C (14°F to 131°F)
  • Working conditions (humidity) 5% to 95% (no condensation)
  • Power supply 100 to 240 VAC, 50/60 Hz, Max. 6.3 A
  • Max. power consumption 400W
  • Relative humidity 5% to 95% (no condensation)
  • Approvals
  • EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
  • Security UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
  • Certification of chemical components CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

Manufacturer codeSWITCHDS3E1526PSI
ManufacturerHikvision
Weight2.975 kg
