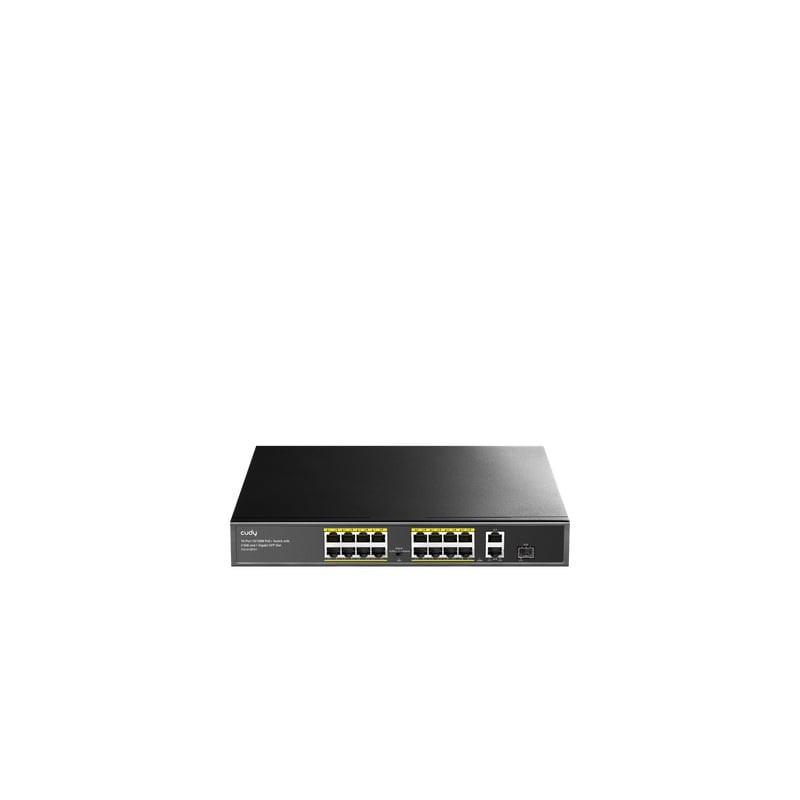

16-port switch CUDY FS1018PS1 (Unmanaged, PoE)
Product reference: 26-6971690790271
  • Type: Switch (Unmanaged)
  • Model: CUDY FS1018PS1 4.0
  • Housing: Metal
  • Ports: 18 x RJ45 (16 x PoE 100 Mbps, 2 x Uplink 1 Gbps)
  • Operating modes: VLAN/Default/Extend
  • PoE power per port: 30 W
  • Maximum PoE power: 120 W
  • PoE standards: 802.3af/at
  • Transmission capacity: 5.6 Gbps
  • MAC address table size: 2048
  • Transmission performance: 4.166 Mpps
  • Power supply: 100 - 240 V AC
  • Power consumption: 120 W
  • Dimensions (WxDxH): 200 mm x 120 mm x 44 mm
  • Operating temperature: -20°C to 50°C
16-port switch CUDY FS1018PS1 (Unmanaged, PoE)

16-port switch CUDY FS1018PS1 (Unmanaged, PoE)

Product reference: 26-6971690790271
  • Type: Switch (Unmanaged)
  • Model: CUDY FS1018PS1 4.0
  • Housing: Metal
  • Ports: 18 x RJ45 (16 x PoE 100 Mbps, 2 x Uplink 1 Gbps)
  • Operating modes: VLAN/Default/Extend
  • PoE power per port: 30 W
  • Maximum PoE power: 120 W
  • PoE standards: 802.3af/at
  • Transmission capacity: 5.6 Gbps
  • MAC address table size: 2048
  • Transmission performance: 4.166 Mpps
  • Power supply: 100 - 240 V AC
  • Power consumption: 120 W
  • Dimensions (WxDxH): 200 mm x 120 mm x 44 mm
  • Operating temperature: -20°C to 50°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
7170 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General
  • Model version FS1018PS1 3.0
  • 1.25G SFP Slots 1
  • Gigabit RJ45 Ports 2
  • 10/100 Mbps RJ45 connectors 16
  • 10/100 Mbps RJ45 PoE Ports #1~#16
  • Maximum power per PoE port 30W
  • PoE port notes Complies with IEEE 802.3at/af standards
  • Advanced Mode Ports #1~#16
  • VLAN mode ports #1~#16
  • LED indicators Power, Link/ACT of Each Ethernet Port, DIP Mode (SW)
  • Power input AC Inlet
  • Physical buttons VLAN/Default/Extend DIP Switch
  • Copper Speed ​​and Distance Cat. 3+: 100m @ 10 Mbps, Cat. 5+: 100m @ 100 Mbps, Cat. 5e+: 100m @ Gigabit, 250m @ 10 Mbps (Extend Mode only)
  • Copper Speed ​​Note Gigabit only on uplink ports; 250m transmission only in Extend Mode
  • Optical Spec and Distance Depends on installed optical module
  • MAC address table 2048
  • Maximum switching capacity 9.2 Gbps
  • Maximum upload speed 6.844 Mpps
  • Packet buffer 3 Mbit
  • Feeding methods AC
  • AC Input 100-240V~, 50/60Hz
  • Power source 200W
  • Maximum power excluding PoE 6W
  • 802.3 Protocols 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X, 802.3x Flow Control, 802.3af PoE, 802.3at PoE
  • Grounding Methods Three-Prong Plug, Grounding Point
  • Operating temperature 0~40 (32~104)
  • Storage temperature -40~70 (-40~158 )
  • Operating humidity 10~90% non-condensing
  • Storage humidity 10~95% non-condensing
  • Dimensions 320×207×45 mm (12.6×8.15×1.77 inches)
  • Product weight 1623 g (57.25 oz.)
  • Housing material Metal
  • Installation Options Desktop, Rackmount via Brackets
  • Package contents FS1018PS1, Power Cord, Mounting Kit, Installation Guide

Manufacturer codeSWITCHCUDYFS1018PS1
ManufacturerCudi
Weight1.85 kg
