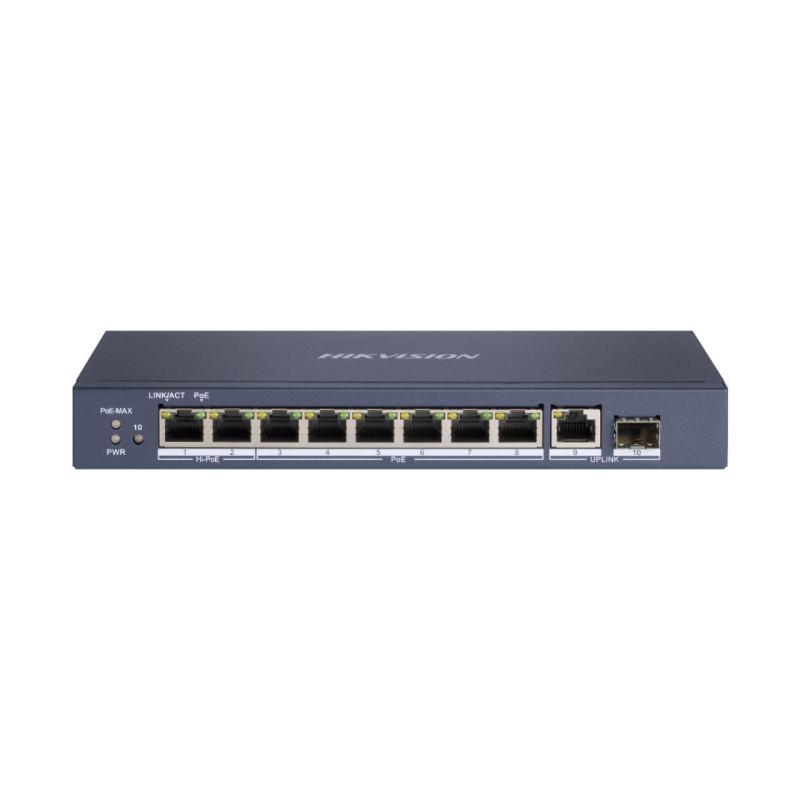

10-port, 8 PoE switch Hikvision DS-3E0510HP-E
Product reference: 26-6941264031611
  • 10 ports
  • 6 × Gigabit PoE ports, 2 × Gigabit Hi-PoE ports, 1 × Gigabit RJ45 port and 1 × Gigabit fiber port
  • PoE ports: 1 to 8
  • 1 Uplink
  • 1000Mbps
  • 802.3af/at
  • 6kV
10-port, 8 PoE switch Hikvision DS-3E0510HP-E

10-port, 8 PoE switch Hikvision DS-3E0510HP-E

Product reference: 26-6941264031611
  • 10 ports
  • 6 × Gigabit PoE ports, 2 × Gigabit Hi-PoE ports, 1 × Gigabit RJ45 port and 1 × Gigabit fiber port
  • PoE ports: 1 to 8
  • 1 Uplink
  • 1000Mbps
  • 802.3af/at
  • 6kV
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
11632 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Tinklo parametrai
  • Prievadai 6 × Gigabit PoE ports, 2 × Gigabit Hi-PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit fiber optical port
  • Prievadų tipas RJ45 port, full duplex, MDI/MDI-X adaptive
  • Darbo režimas Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode
  • Standartas IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
  • Perdavimo režimas Store-and-forward switching
  • MAC adresųlentelė 4 K
  • Perjungimo talpa 20 Gbps
  • Paketų persiuntimo greitis 14.88 Mpps
  • Vidinė cache atmintis 1.5 Mbits
  • Prievadai, skirti perdavimui dideliais atstumais Ports 7 and 8
  • PoE
  • PoE standartas

    Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

    Ports 3 to 8: IEEE 802.3af, IEEE 802.3at
  • PoE galios jungtis

    Ports 1 to 2 and 7 to 8: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

    Ports 3 to 6: End-span: 1/2(-), 3/6(+)
  • PoE prievadas Ports 1 to 8
  • Maks. PoE prievadų galia

    Ports 1 and 2: 90 W

    Ports 3 to 8: 30 W
  • PoE disponuojama galia 110 W
  • Skambinimo funkcija
  • Ilgo diapazono režimas Ports 7 and 8: up to 300 m.
  • Prievado izoliacija Ports 1 to 8: port isolation mode to improve network security.
  • PoE Watchdog Ports 1 to 8: auto detect and restart the cameras that do not respond.
  • Pagrindinis
  • Dydis 217.6 mm × 108.55 mm × 27.8 mm (8.57" × 4.27" × 1.09")
  • Rėmas Metal material, fan-free design
  • Svoris su įpakavimo 1.410 kg (3.11 lb)
  • Svoris be įpakavimo 0.59 kg (1.30 lb)
  • Darbo sąlygos (drėgmė) -10 °C to 40 °C (14 °F to 104 °F)
  • Darbo sąlygos (drėgmė) 5% to 95% (no condensation)
  • Sandėliavimo sąlygos (temperatūra) -40 °C to 85 °C (-40 °F to 185 °F)
  • Sandėliavimo sąlygos (drėgmė) 5% to 95% (no condensation)
  • Maitinimas 54 VDC, 2.22 A
  • Energijos sunaudojimas miego režime < 10 W
  • Maks. energijos sunaudojimas 120 W
  • Patvirtinimai
  • EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • Saugumas UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • Cheminis tyrimas CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Gamintojo kodas SWITCHDS-3E0510HPE
Gamintojas Hikvision
Svoris 0.59 kg
