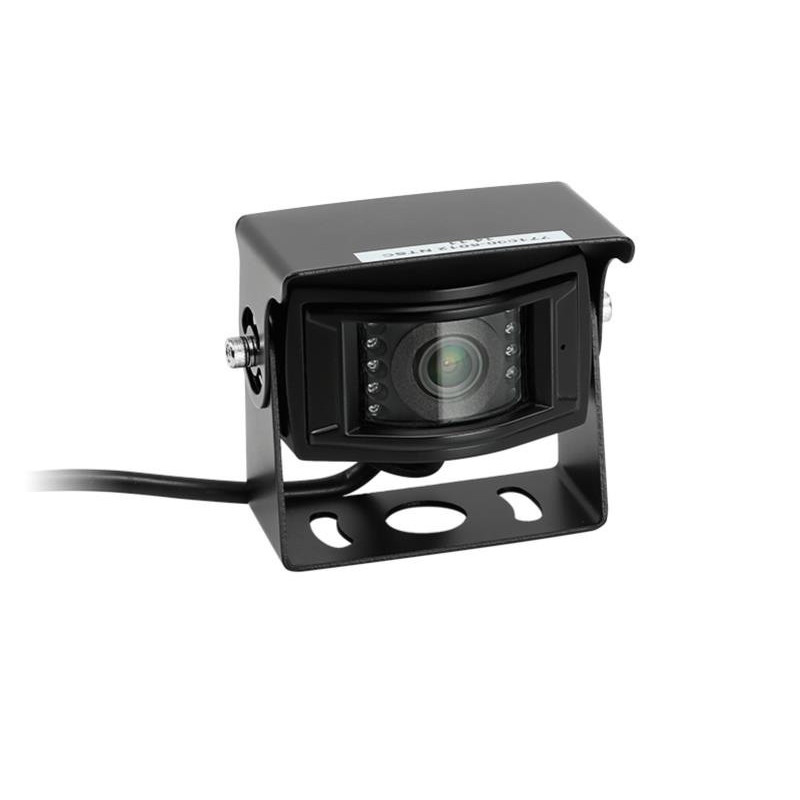

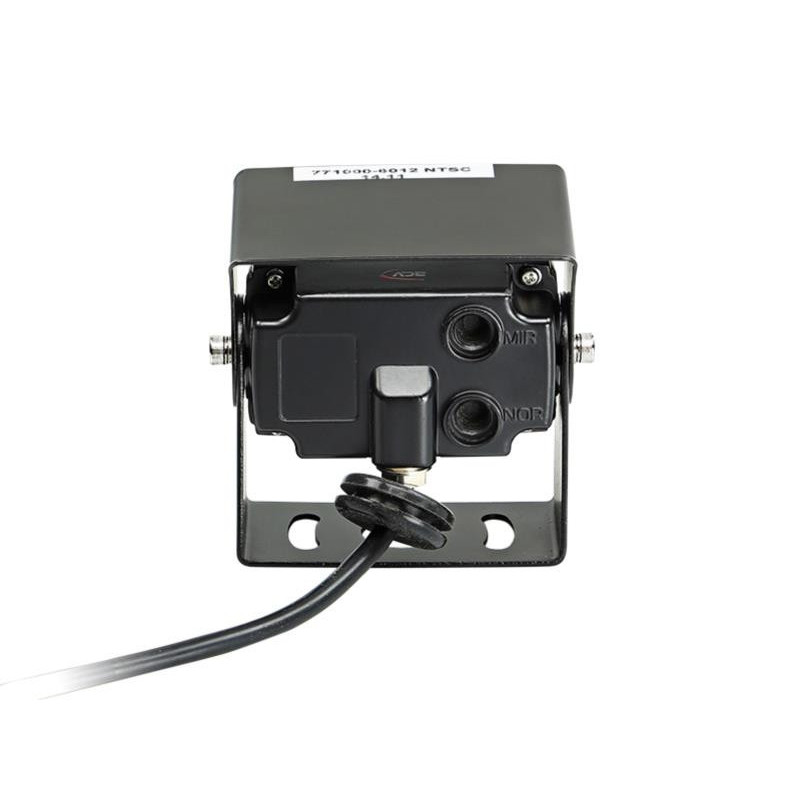

Universal rear view camera with assist lines for trucks

Universal reversing camera Design: Transporter / Camper Installation: structural body / roof system

With guide lines / night vision function / 170° diagonal wide angle

Attention:

• ACV cameras are suitable for continuous operation
• before installation > check the viewing angle and camera position at the installation site using a test monitor
• Camera operating voltage: +12V
• Camera power: +12

Connection:

• red: +12V switched stable load with fuse
• black: body direct ground/GND
• RCA(m) yellow:
• video jumper: green: guide lines activate/deactivate

Product characteristics camera:

• Construction: metal
• Color: black
• Extras: Jumper Guide Lines / Night View Feature
• Image sensor: 1/4" CCD
• Television system: NTSC color
• Effective pixels: 728 x 512
• Lens: 1.9mm / F2.0
• Lux: 0 lux with night view activated
• Resolution: 600 TV lines
• Lens angle: 170° diagonal
• Viewing angle: horizontal 113° vertical 80° +5°
• IP Protection Class: IP68 Terminal
• : 8-pin system connector(m) Ø7mm
• Operating voltage: +12V DC
• Power supply: +12V DC
• Current consumption: 200mA with night view active
• Operating temperature: -30°C - 75°C
• Storage temperature: -40°C - 85°C
• Dimensions with handles: L / W / H - 76 mm / 60.39 mm / 73.8 mm

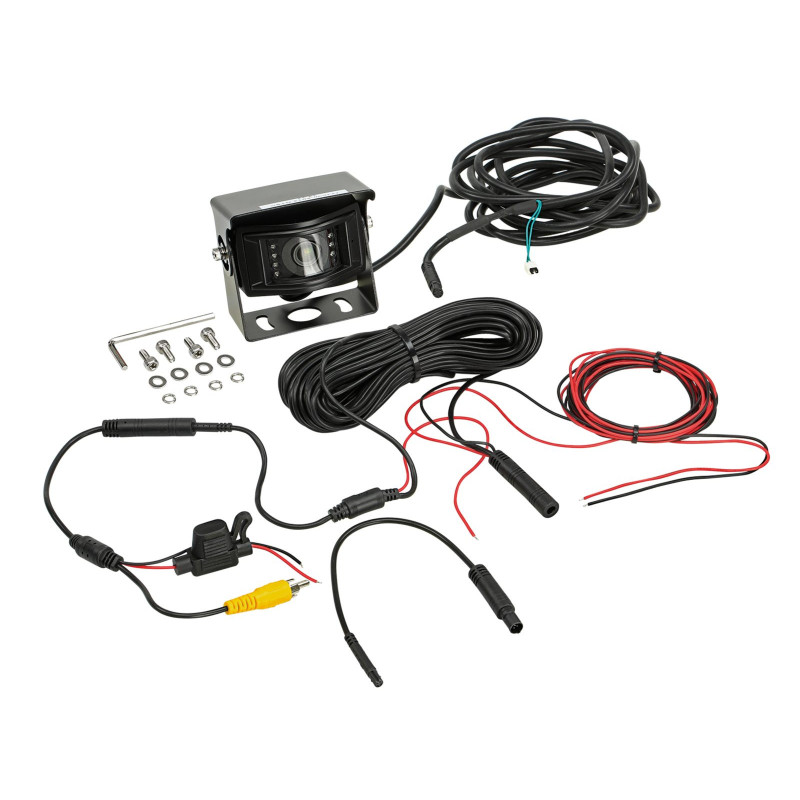

Wires:

• 1 cable with 4-pin mini plug 5.2 mm
• 15-meter extension cord. 3-meter power cord
• 4-pin mini plug and 10mm 5.2mm plug
• Power cord 0.2 m
• Fuse and video socket (RCA)

Optional accessories:

• 771000-6305 Extension cord 5 m
• 771000-6310 Extension cord 10 m
• 771000-6315 Extension cord 15 m

Universal reversing camera with assist ropes for trucks - road safety comes first!

Sometimes even the simplest maneuvers can cause a lot of problems. If you'd like to take your driving safety to the next level, we believe it's worth exploring the latest technological advancements. A reversing camera is a good solution, making your vision behind the vehicle much clearer. The choice of such devices is incredibly wide, so finding the most reliable product can be a challenge. Fortunately, we can offer you something that certainly won't disappoint. A universal reversing camera with assist ropes for trucks is just what you're looking for!

Invest in your safety!

At Car-tronic, you can purchase top-quality rearview cameras. Make your driving even safer! Now you can!
