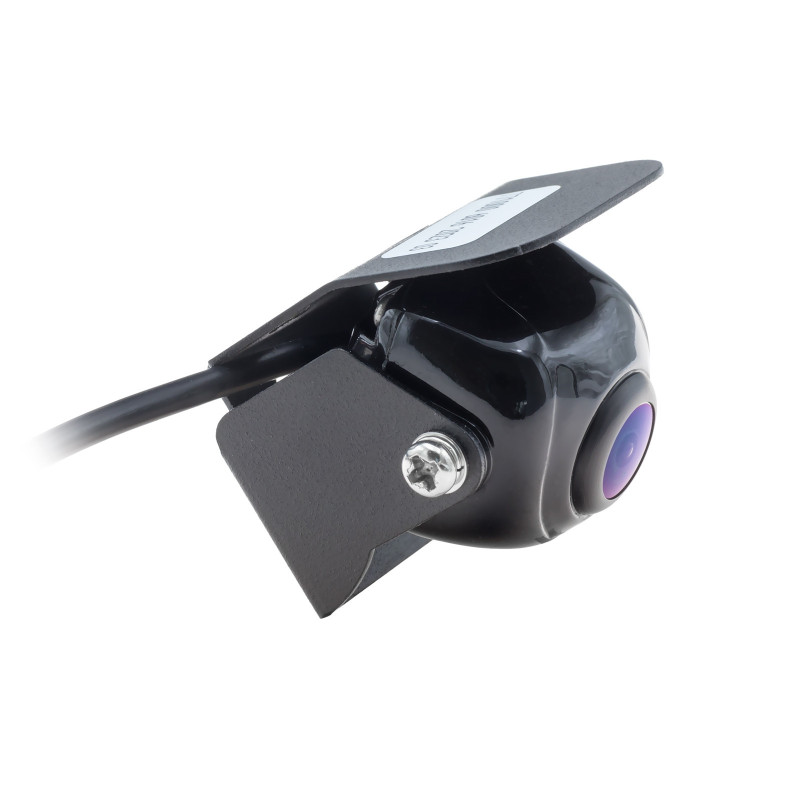

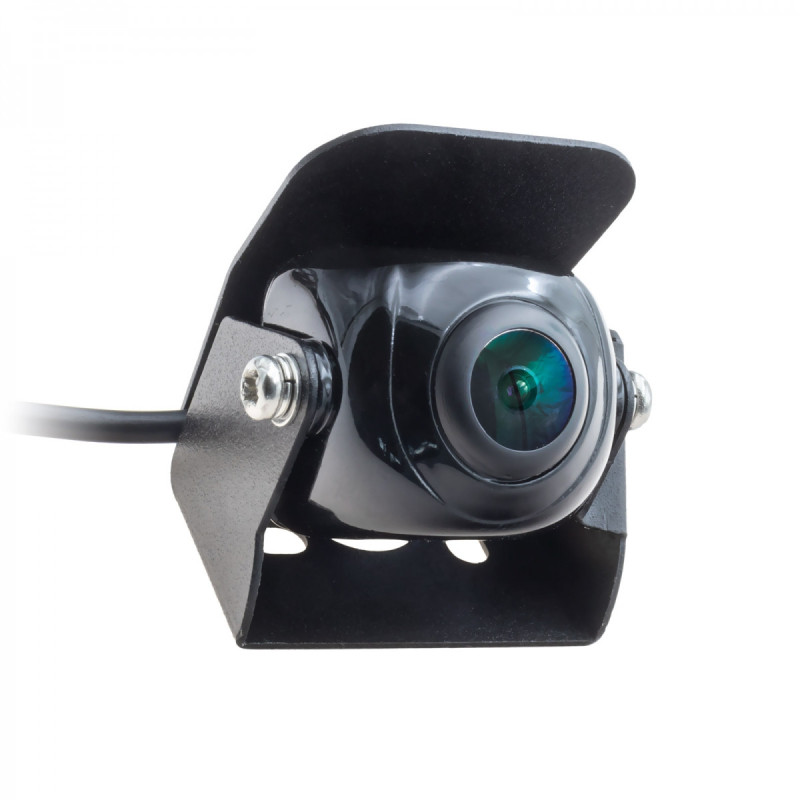

Universal rear view camera with assist lines for trucks

Universal reversing camera (4 corners), roof with auxiliary lines, mirror function via jumper, night vision function.

Product characteristics

• Design:metal
• Color:black
• Extras:lines leading through jumpers, mirror function and Nightview
• Image sensor:1/4 " Aptina ASX340
• TV system:NTSC color
• Effective pixels:720 x 576
• Resolution:480 TV lines
• Lens angle:140 °
• Viewing angle:horizontal 115° vertical 80 degrees + 5°
• Case:IP 68
• Terminal:4-pin mini-plug (male) 5.2mm
• Power supply:DC 12V + 10%
• Power consumption:60mA with nightvision activated
• Operating temperature:-30 ° C - 75 ° C
• Storage temperature:-40 ° C - 85 ° C
• Dimensions: (with brackets)L/W/H - 29mm/22mm/24mm

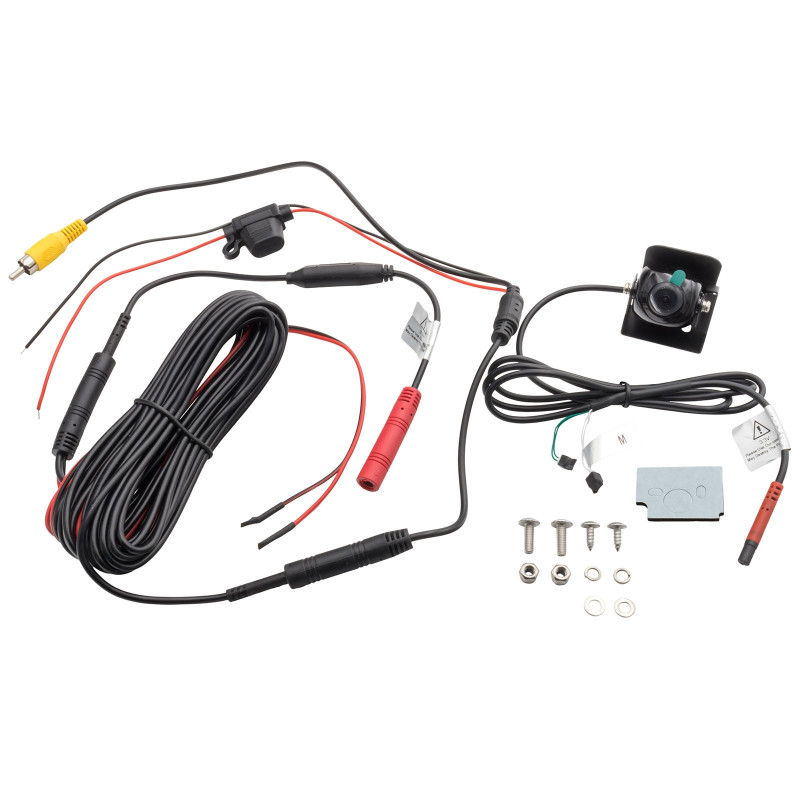

Wires

• 1 cable with 4-pin mini plug 5.2 mm
• 6.5 meter extension cord. 3 meter power cord
• 4-pin mini plug and 10mm 5.2mm plug
• Power cord 0.2 m
• Fuse and video socket (RCA)

Optional accessories

• 771000-6305 Extension cord 5 m
• 771000-6310 Extension cord 10 m
• 771000-6315 Extension cord 15 m

Universal rear view camera with assist lines for trucks - the perfect solution for truck drivers!

Driving a truck is significantly more challenging than driving a passenger car. You must focus more on the weight of your vehicle, which can make some maneuvers significantly more difficult. Reversing can be one of the most time-consuming tasks when driving a truck. How can we simplify this as much as possible? We've come up with a reliable and proven solution. A universal rearview camera with assist lines for trucks is a great product that won't disappoint!
