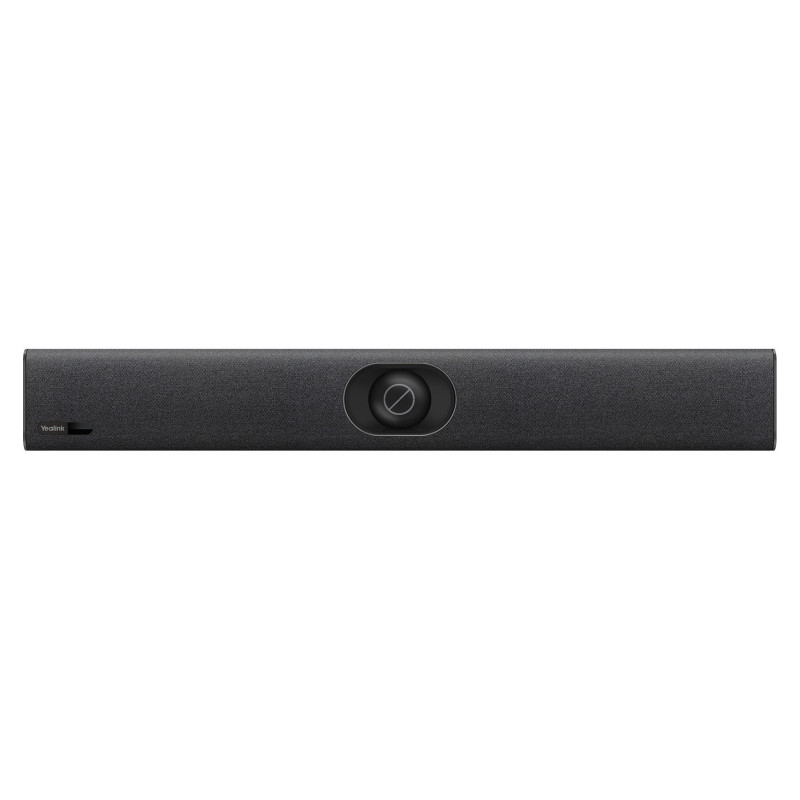

Yealink UVC40 E2 video conferencing system

Yealink UVC40 E2. Product type: Personal video conferencing system. Sensor type: CMOS. HD type: 4K Ultra HD, Maximum frame rate: 30 fps. Field of view (FOV) angle: 120°. Wi-Fi. Product colour: Black
VC40 E2
Smarter Meetings, One Device.
All-in-One Intelligent USB Conference Camera for Small and Huddle Rooms
MAKE YOUR MEETINGS SMARTER
With 4K ultra-HD imaging, a 120° super-wide-angle lens and Smart Area Exposure technology, the UVC40 E2 ensures exceptional video quality. AI features like Auto Framing and Speaker Tracking enhance conferencing, while 8 MEMS microphones and a high-fidelity speaker ensure excellent call quality. Manageable via Yealink Device Management Platform, UVC40 E2 is your choice for seamless collaboration.
SMART AI, CLEAR FOCUS.
With advanced AI technology such as Auto Framing and Speaker Tracking, the UVC40 E2 automatically adjusts framing based on participant count and positions, seamlessly zooms in on speakers without manual intervention, ensuring enhanced conference focus during meetings.
SMART VISION, WIDE VIEW.
Featuring a ultra-HD 4K lens, the UVC40 E2 ensures clear and smooth video calls, delivering vivid and detailed presentations. Its 120° ultra-wide view effortlessly covers every corner of the meeting room, capturing all participants. Smart Area Exposure* enhances overall brightness through AI image algorithms, ensuring optimal face and picture presentation.
Smart Sound,
Superior Clarity.
8 MEMS microphone arrays for superior noise reduction and echo cancellation. Enhanced by an upgraded beamforming algorithm and advanced acoustic processing technology, the UVC40 E2 delivers high-quality full-duplex calls with precise voice pickup.

Performance

Number of cameras: 1
Product colour: Black
Auto framing: Yes
Product type: Personal video conferencing system
Signal-to-Noise Ratio (SNR): 72 dB

Video

HD type: 4K Ultra HD
Maximum frame rate: 30 fps

Audio

Built-in speaker(s): Yes
Frequency range: 50 - 20000 Hz
Audio system full duplex: Yes
Line-out impedance: 4 Ω
Noise reduction: Yes
Echo cancellation: Yes
Automatic gain control: Yes
Audio Lip synchronization: Yes
Speaker power: 5 W

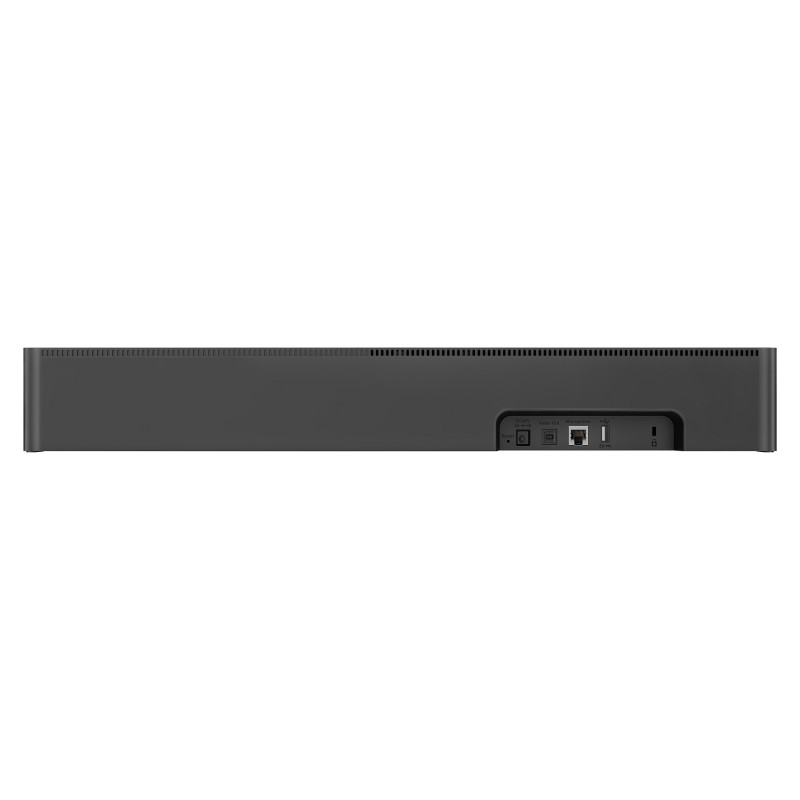

Ports interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 1
DC-in jack: Yes
Microphone in: Yes
Reset slot: Yes

Network

Wi-Fi: Yes

Camera

Megapixel (approx.): 8 MP
Camera type: Single camera
Sensor type: CMOS
Image sensor size: 1/1.8"
Field of view (FOV) angle: 120°

Microphone

Microphone sensitivity: -38 dB
Number of microphones: 8
Number of microphone arrays: 1

Features

Cable lock slot: Yes

Computer system

Windows operating systems supported: Yes
Mac operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -30 - 70 °C

Power

Power source type: AC
AC input voltage: 100 - 240 V
DC output voltage: 48 V
DC output current: 0.7 A

Weight dimensions

Width: 600 mm
Depth: 68 mm
Height: 82 mm
Weight: 1.37 kg

Packaging content

Cables included: USB
AC adapter included: Yes
Mounting kit: Yes
Remote control included: Yes
Quick start guide: Yes
