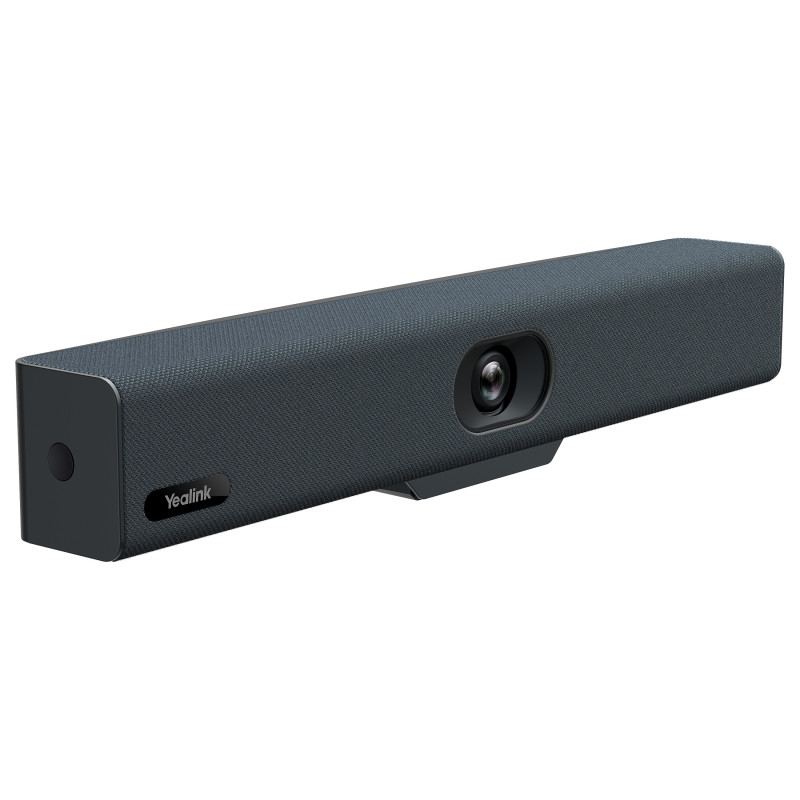

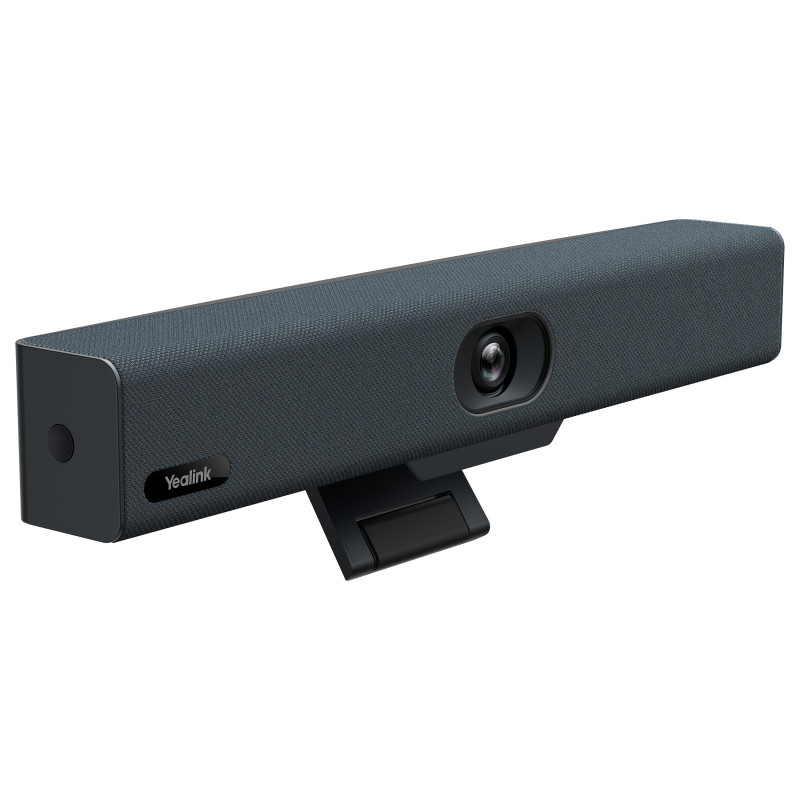

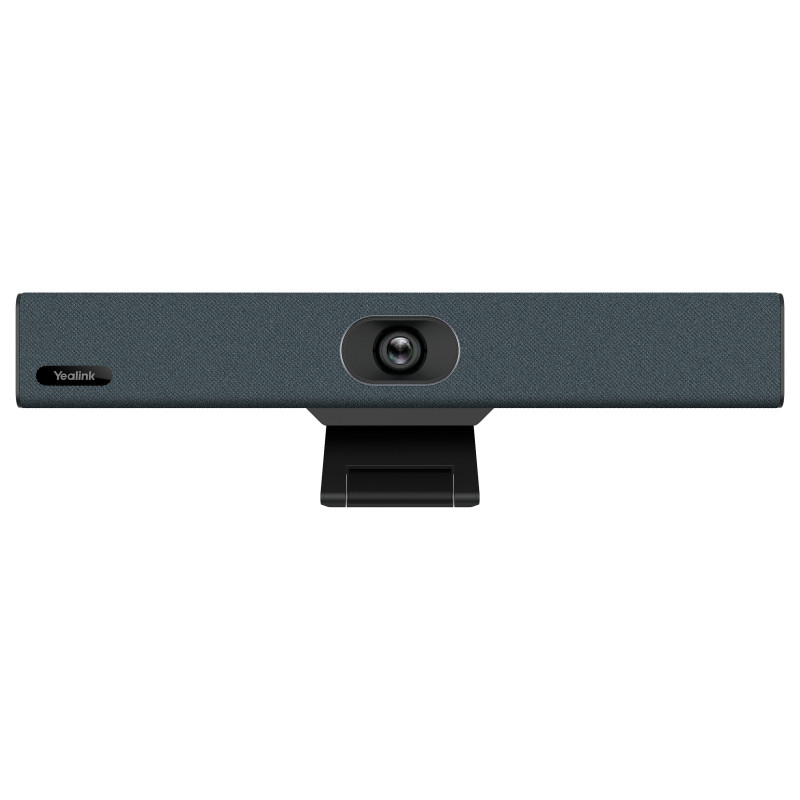

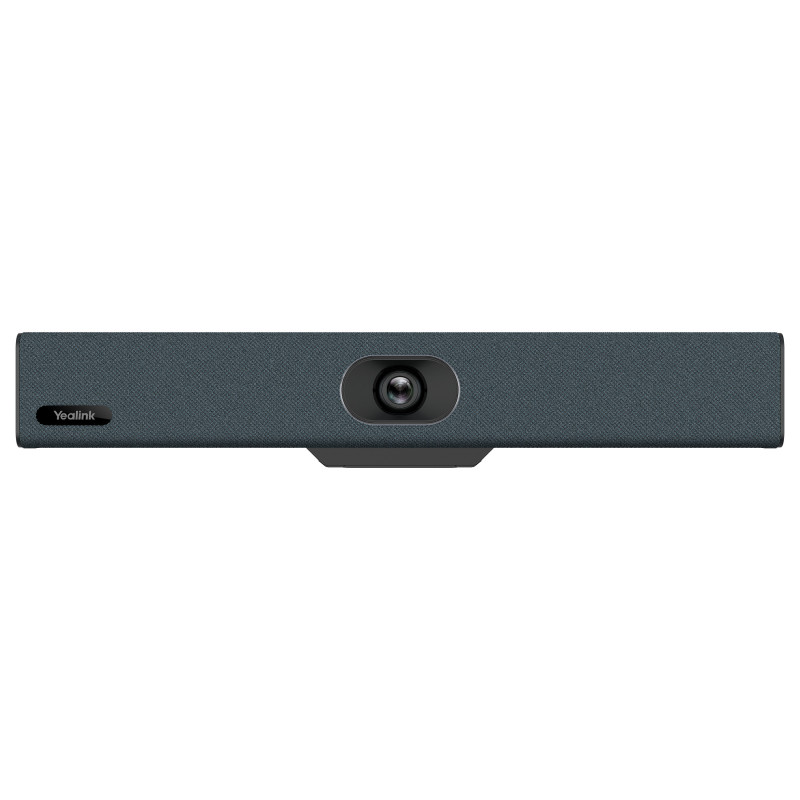

Yealink UVC34 video conferencing system

Yealink UVC34. Product type: Personal video conferencing system. Sensor type: CMOS. HD type: 4K Ultra HD, Supported video modes: 2160p, Maximum frame rate: 30 fps. Field of view (FOV) angle: 120°. Wi-Fi. Bluetooth, Product colour: Black
Impress Everyone in Every Meeting
Yealink UVC34 enables you to impress everyone in video meetings no matter where work happens. UVC34 integrates with a 4K AI-driven camera, microphone arrays, and speaker into a single device, bringing stunning video and audio experiences for small and huddle rooms. Moreover, the all-in-one and plug-and-play design make it portable and simple to set up, no matter where you're working.
Immersive Video Experience
By automatically framing participants, the 4K ultra-HD camera delivers a crystal-clear and engaging video experience to remote participants.
Featuring a 120° super-wide-angle len with 5x digital zoom, UVC34 captures tiny details in the room.
Superior Audio Performance
With Yealink Noise Proof Technology, dereverberation and full-duplex features, the built-in 8 microphone array, and 5W high fidelity speaker allow users to hear and to be heard clearly without distraction.
All-in-one Design, Plug and Play
Easy And Effective
UVC34 integrates with a 4K AI-driven camera, microphone arrays, and speaker into a single device. Thanks to the compact design, admins save a lot of effort in deploying and maintaining devices. With the plug-and-play feature, you can simply walk into your next meeting with everything you need at your fingertips. No extra drivers and software are needed. Just an easy and effective solution for you to start a meeting no matter where you want.

Performance

Number of cameras: 1
Bluetooth: Yes
Bluetooth version: 4.2
Product colour: Black
Auto framing: Yes
Product type: Personal video conferencing system

Video

HD type: 4K Ultra HD
Supported video modes: 2160p
Supported graphics resolutions: 3840 x 2160
Maximum frame rate: 30 fps
Aspect ratio: 16:9
Resolution at capture speed: 3840x2160@30fps

Audio

Built-in speaker(s): Yes
Frequency range: 100 - 20000 Hz
Noise reduction: Yes
Echo cancellation: Yes
Microphone pick-up range: 4.5 m
Speaker power: 5 W

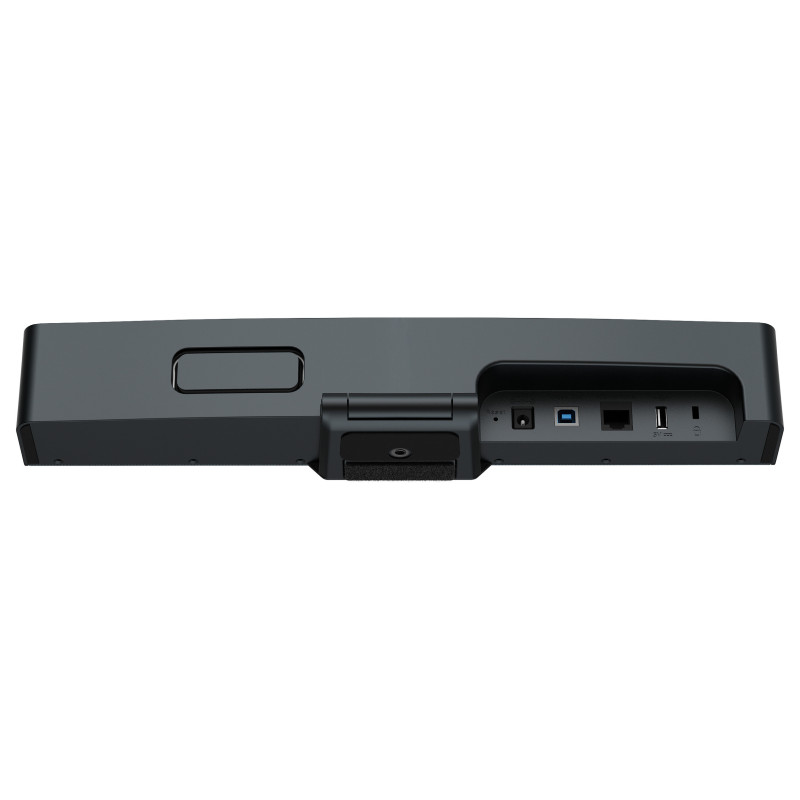

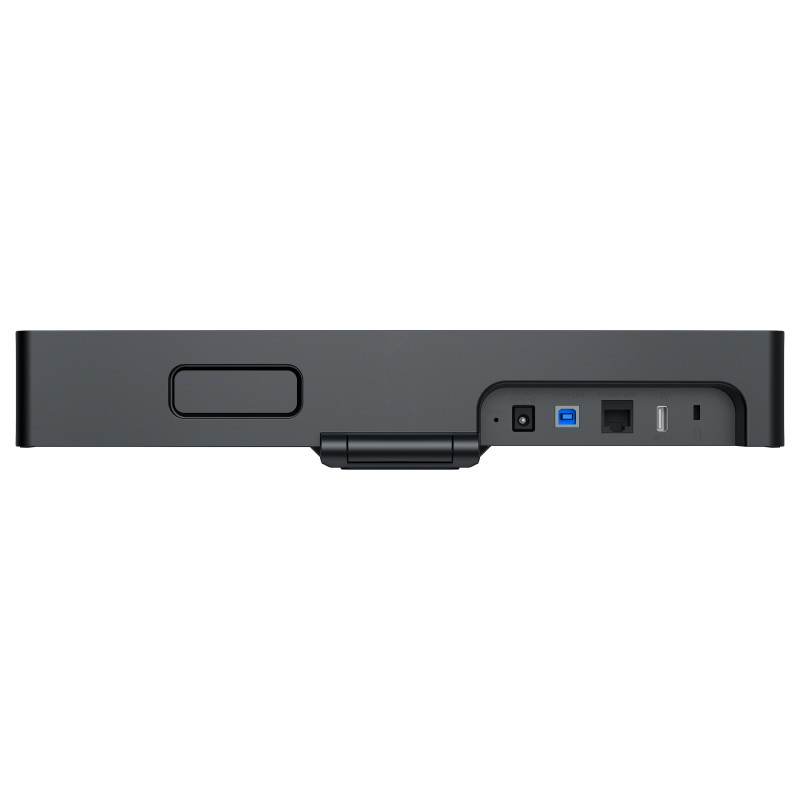

Ports interfaces

USB 2.0 ports quantity: 2
DC-in jack: Yes
Microphone in: Yes
Reset slot: Yes

Network

Wi-Fi: Yes

Camera

Megapixel (approx.): 8 MP
Camera type: Single camera
Sensor type: CMOS
Field of view (FOV) angle: 120°
Number of camera presets: 9

Microphone

Number of microphones: 8
Number of microphone arrays: 1

Features

Cable lock slot: Yes

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990

Computer system

Windows operating systems supported: Windows 10, Windows 7, Windows 8.1
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 95%

Power

Power source type: AC
AC input voltage: 100 - 240 V
DC output voltage: 48 V
DC output current: 0.7 A

Weight dimensions

Width: 380 mm
Depth: 55 mm
Height: 55 mm
Weight: 1.28 kg

Packaging data

Package width: 447 mm
Package depth: 165 mm
Package height: 150 mm
Package weight: 1.85 kg

Packaging content

AC adapter included: Yes
Mounting kit: Yes
Quick start guide: Yes
Packaging content: UVC34 all-in-one USB video barVCR20 Remote Control, 2 x AAA batteryPower adapterWall bracket and accessories7m USB-B to USB-A cable
