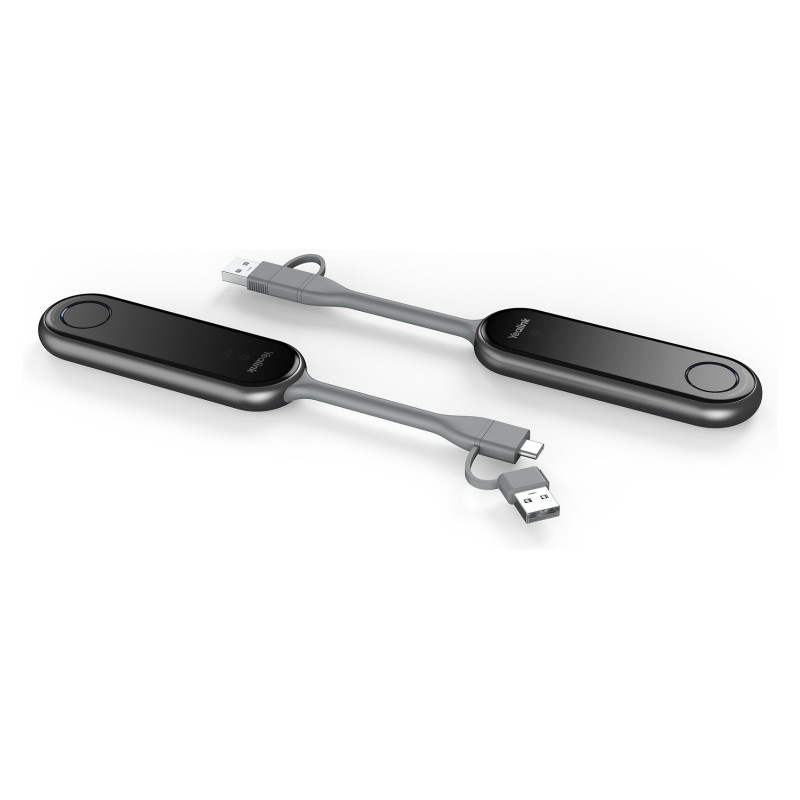

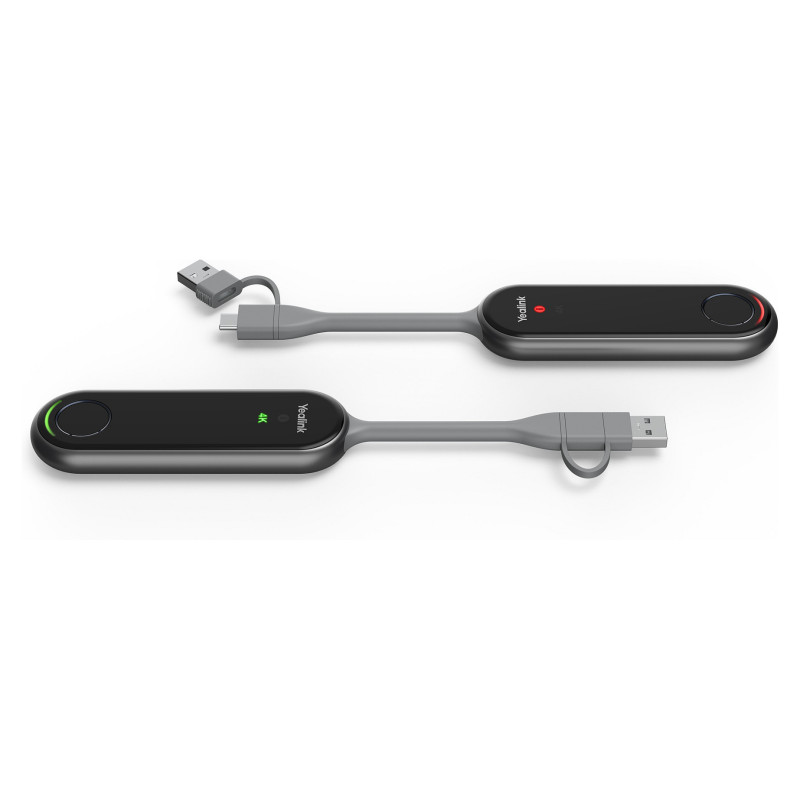

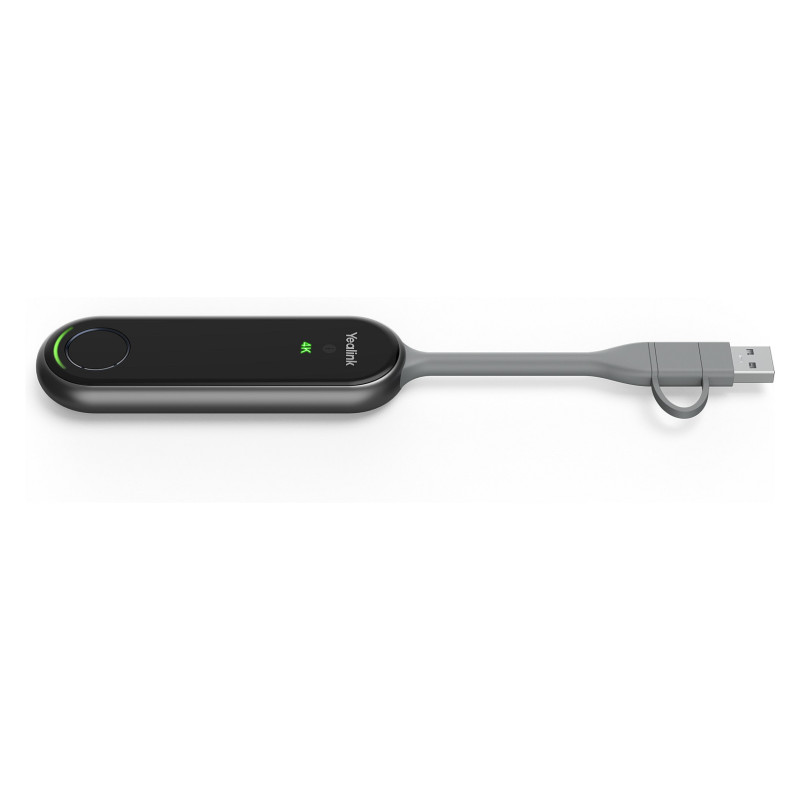

Yealink PA20 wireless presentation system

Yealink PA20. Form factor: Dongle, Product colour: Black. Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11az, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Security algorithms: WPA-PSK, WPA2-PSK. Power consumption (typical): 2.2 W. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High.... Width: 220 mm, Depth: 38 mm, Height: 16 mm

4K HD Presentation, Low Latenc y

Thanks to the high-performance 2x2 MIMO, Wi-Fi 6 module, PA20 delivers immediate response and a smooth and trouble-free presenting experience with low latency. PA20 supports a 2.4GHz/5GHz dual-band wireless network, perfect anti-interference capability, and up to 4K/30fps ultra HD presentation.

No Extra Driver, Plug-and-play

PA20 is suitable for devices that support free collaboration and have a full-featured USB Type-C port. PA20 adopts the built-in hardware encoding chip solution. No need to install any software or
driver, and no CPU occupied.

Design

Form factor: Dongle
Product colour: Black
LED indicators: Yes

Network

Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11az, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security algorithms: WPA-PSK, WPA2-PSK

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Power

Power consumption (typical): 2.2 W

System requirements

Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8

Operational conditions

Operating temperature (T-T): -10 - 40 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 220 mm
Depth: 38 mm
Height: 16 mm
Weight: 75 g
Package width: 220 mm
Package depth: 38 mm
Package height: 16 mm
Package weight: 87 g

Logistics data

Country of origin: China
