Yealink MVC S40-C5U-000 video conferencing system

Yealink - MVC S40-C5U-000. Product type: Group video conferencing system. Total megapixels: 45 MP, HD type: 4K Ultra HD, Supported video modes: 1080p, 2160p, Maximum frame rate: 30 fps. Field of view (FOV) angle: 120°, Digital zoom: 6x. Ethernet LAN, Wi-Fi. Bluetooth. Display: IPS, Display diagonal: 29.5 cm (11.6"), Display resolution: 1920 x 1080 pixels. Product colour: Black, Grey

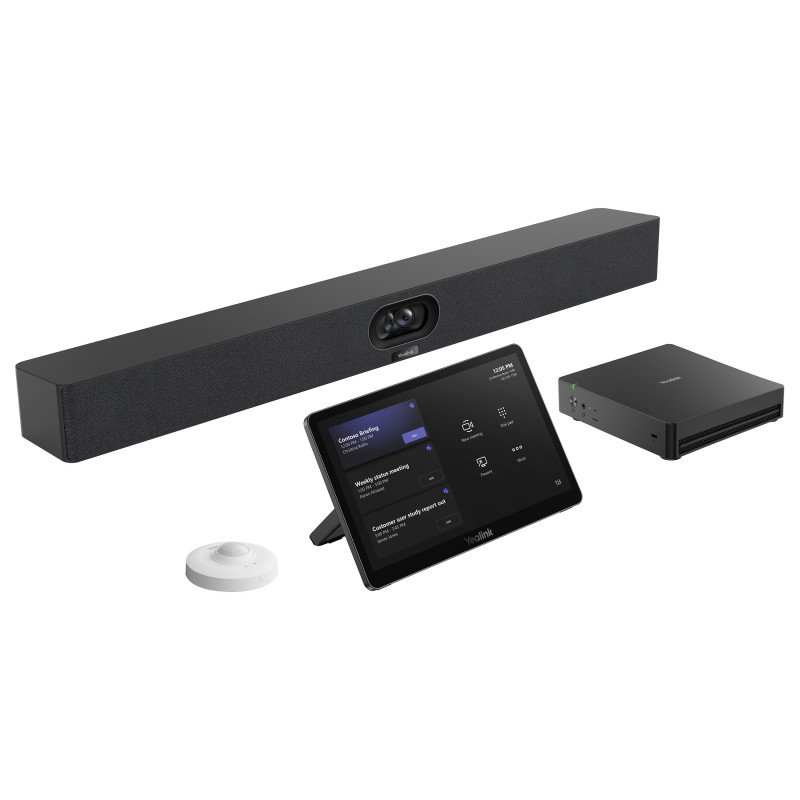

Designed for medium to large meeting rooms, MVC S40 is a bundle solution with all-in-one video bar SmartVision 40, mini-PC MCore 4 and touch panel MTouch Plus. It features advanced AI features powered by unrivalled dual 48MP lens system and future-proof computing power, supporting easy deployment & flexible design.

Performance

Number of cameras: 2
Feature: Bluetooth
Bluetooth version: 5.2
Product colour: Black, Grey
Meeting features: Content sharing
Product type: Group video conferencing system

Video

HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Total megapixels: 45 MP
Supported video modes: 1080p, 2160p
Maximum frame rate: 30 fps
Feature: Streaming capability

Audio

Feature: Built-in speaker(s)
Number of speakers: 2
Feature: Noise reduction

Memory

Internal memory: 16000 MB
Internal memory type: DDR5
Storage media type: SSD
Total storage capacity: 256 GB

Ports & interfaces

HDMI output ports quantity: 3
HDMI input ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
Feature: Line-in
Feature: Reset slot

Interface module

Interface module HDMI input ports quantity: 1
Interface module HDMI output ports quantity: 3
Interface module RJ-45 ports quantity: 2
Feature: Interface module DC input port

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g

Camera

Megapixel (approx.): 48 MP
Camera type: Dual camera
Second camera resolution: 48 MP
Digital zoom: 6x
Field of view (FOV) angle: 120°
Horizontal field of view: 111°

Display

Feature: Built-in display
Display: IPS
Display diagonal: 29.5 cm (11.6")
Display resolution: 1920 x 1080 pixels
Feature: Touchscreen

Microphone

Number of microphone arrays: 8

Features

Feature: Cable lock slot
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0

Logistics data

Country of origin: China

Computer system

Computer system type: Mini PC
Processor family: Intel Core Ultra 5
Applications supported: Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings, Yeallink RoomConnect

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Interface module dimensions (W x D x H): 188 x 188 x 47.5 mm
Weight: 9.27 kg

Packaging data

Package width: 743 mm
Package depth: 304 mm
Package height: 280 mm
Package weight: 10.2 kg

Packaging content

Feature: External interface module included
Feature: Camera included
