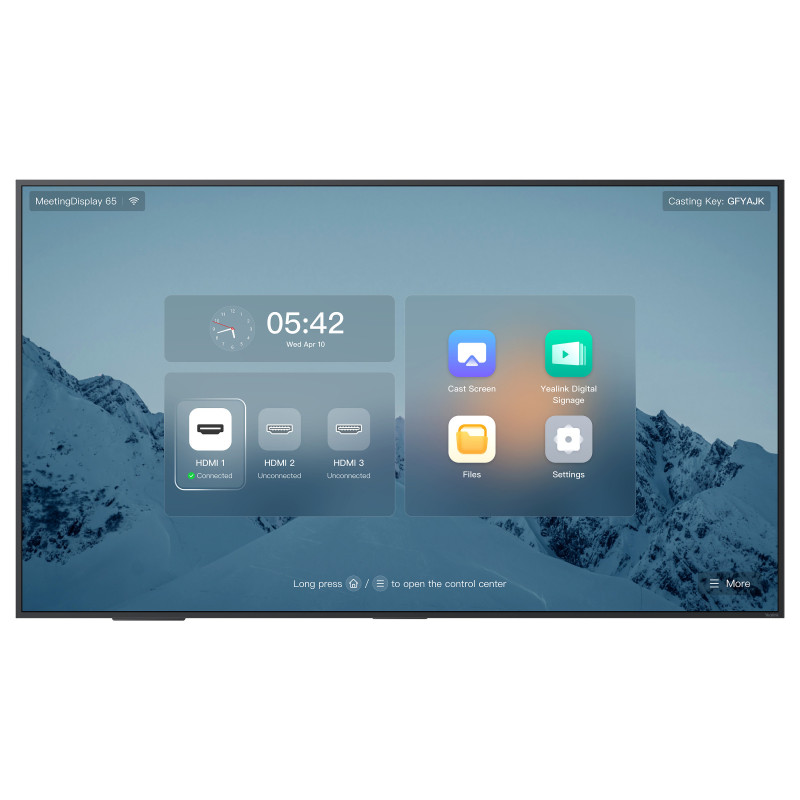

Yealink MeetingDisplay 65''

Yealink MeetingDisplay 65''. Display diagonal: 165.1 cm (65"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD. RMS rated power: 24 W. Product colour: Black, Panel mounting interface: 400 x 400 mm, Bezel width (bottom): 1.25 cm. USB connector type: USB Type-A, USB Type-B. Internal memory: 4 GB, Internal storage capacity: 32 GB, Operating system installed: Android 13

The Yealink MeetingDisplay is designed explicitly for the Yealink MTR system and can be paired with the MTR bar, UVC Camera, and MCore to provide the complete Yealink Meeting Solution. The MeetingDisplay is available in 65", 75", and 86" sizes, meeting the needs of small, medium, and large meeting rooms. The MeetingDisplay and MTR devices can be deployed, managed, and integrated in a unified manner. You can mount these MTR system devices on the MeetingDisplay without drilling or damaging the walls. The installation process will also be simple and convenient based on our uniquely designed structure. Moreover, the meeting solution, led by the MTR system, can be centrally managed via YMCS/YDMP. Finally, this solution allows MeetingDisplay and MTR devices to work in sync, including sleep/wake-up, power on/off, digital signage mode.

Display

Display diagonal: 165.1 cm (65")
Panel type: IPS
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Native refresh rate: 60 Hz
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 24 W

Design

Product colour: Black
Feature: VESA mounting

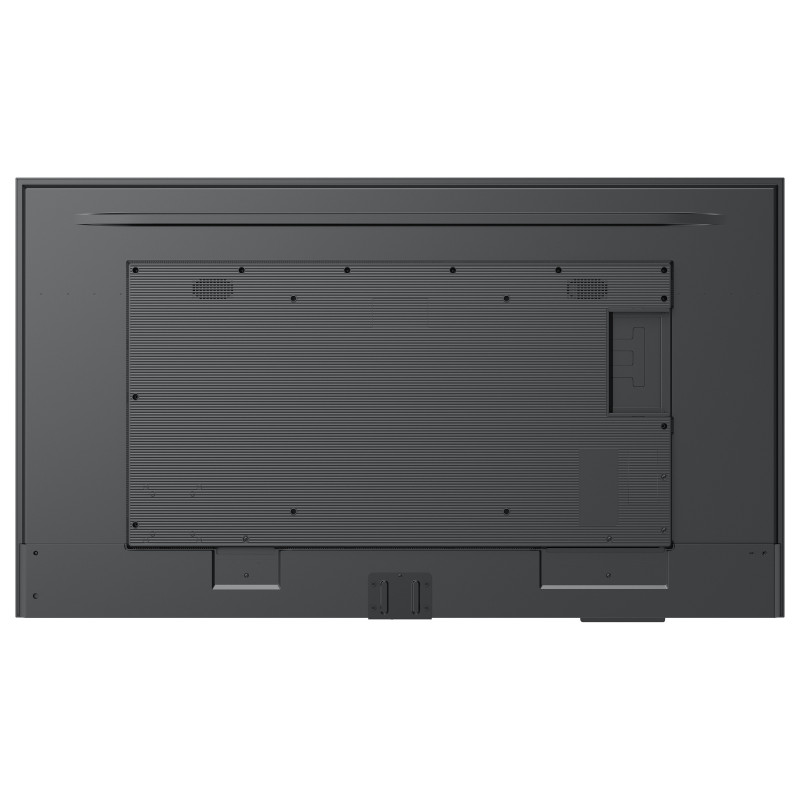

Panel mounting interface: 400 x 400 mm
Bezel width (bottom): 1.25 cm
Bezel width (side): 1.18 cm
Bezel width (top): 1.18 cm
Mounting type: Wall

Ports & interfaces

HDMI ports quantity: 3
HDMI version: 2.1
HDMI input ports quantity: 3
USB ports quantity: 3
USB version: 2.0
USB connector type: USB Type-A, USB Type-B
USB 2.0 Type-B ports quantity: 1
Feature: RS-232 interface
Feature: USB port

Computer system

Feature: Computer system
Internal memory: 4 GB
Internal storage capacity: 32 GB
Operating system installed: Android 13

Power

Power consumption (typical): 183 W
Power consumption (max): 210 W
Power consumption (standby): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 / 60 Hz

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Display width: 1456 mm
Display depth: 58 mm
Display height: 834 mm
Display weight: 19.9 kg

Packaging data

Package width: 1590 mm
Package depth: 185 mm
Package height: 925 mm
Package weight: 28.2 kg

Logistics data

Country of origin: China

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.1
