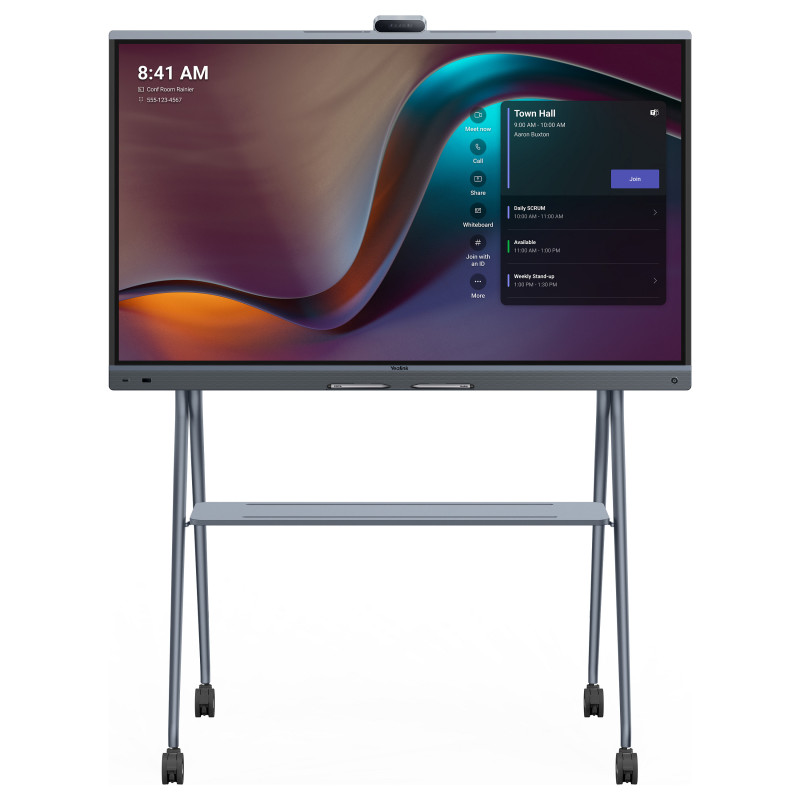

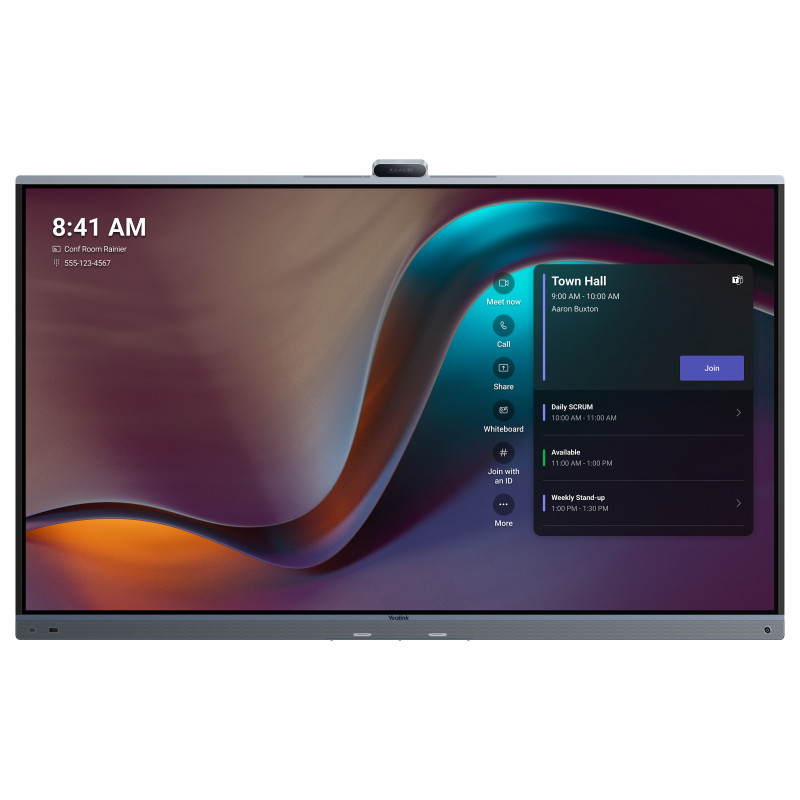

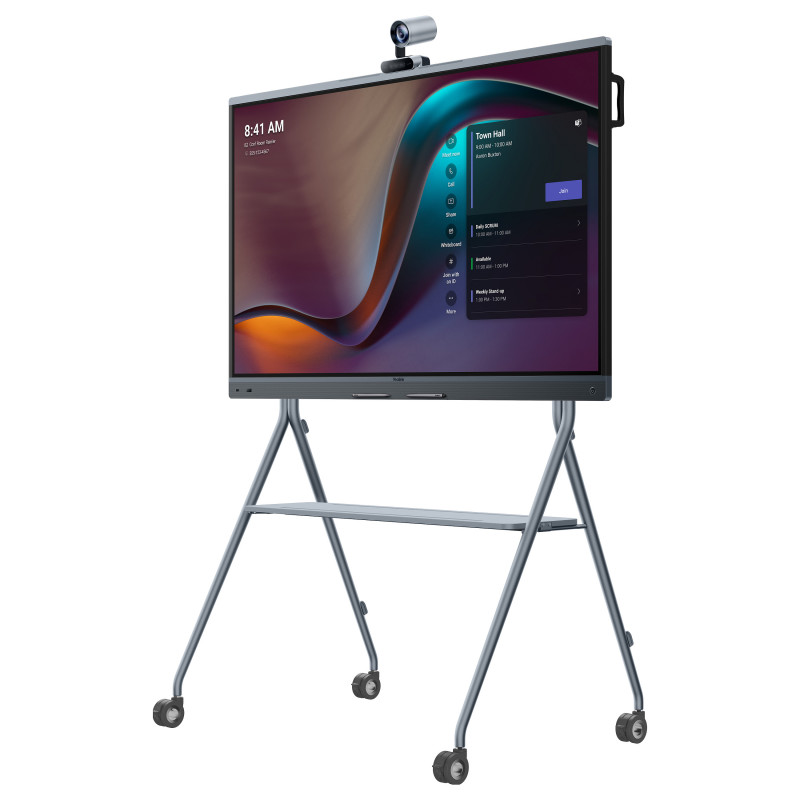

Yealink MeetingBoard Pro interactive whiteboard

Yealink MeetingBoard 86 Pro/MB86Pro-A02. Display diagonal: 2.18 m (86"), Display brightness: 400 cd/m², Display resolution: 3840 x 2160 pixels. Operating system installed: Android, RAM capacity: 8 GB. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Ethernet LAN data rates: 10,100,1000 Mbit/s. Panel mounting interface: 800 x 600 mm. Power consumption (max): 357 W
The MeetingBoard Pro combines video conferencing, display, and smart whiteboarding into a sleek, all-in-one solution with plug-and-play convenience and a clutter-free design. Delivering Pro View, Pro Sound, and powered by Pro Core, it features a triple 50MP camera system with advanced AI for precise tracking and a 16 MEMS mic array with AI-enhanced audio for crystal-clear conversations up to 12m. MeetingBoard Pro supports Android solution or Windows solution. Built on Android 13 with MDEP security and compatible with Teams, Zoom, and BYOD, it's the ultimate meeting solution, expandable with plug-and-play add-ons like 12x Pro PTZ cameras and extension mics.

Display

Display diagonal: 2.18 m (86")
Display brightness: 400 cd/m²
Display resolution: 3840 x 2160 pixels
Contrast ratio (typical): 1200:1
Maximum refresh rate: 60 Hz
Touchscreen: Yes
Number of simultaneous touchpoints: 20

Computer system

Operating system installed: Android
Built-in processor: Yes
Processor cores: 8
RAM capacity: 8 GB

Audio

Built-in speaker(s): Yes
Built-in microphone: Yes

Camera

Built-in camera: Yes

Network

Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.1
Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s

Ports interfaces

HDMI ports quantity: 2
HDMI output ports quantity: 1

Ergonomics

VESA mounting: Yes
Panel mounting interface: 800 x 600 mm

Power

Power consumption (max): 357 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -20 - 60 °C

Weight dimensions

Width: 1951 mm
Depth: 105 mm
Height: 1218 mm
Weight: 65.6 kg

Packaging data

Package width: 2095 mm
Package depth: 225 mm
Package height: 1310 mm
Package weight: 83.2 kg

Packaging content

Cables included: AC, LAN (RJ-45)

Other features

Country of origin: China
