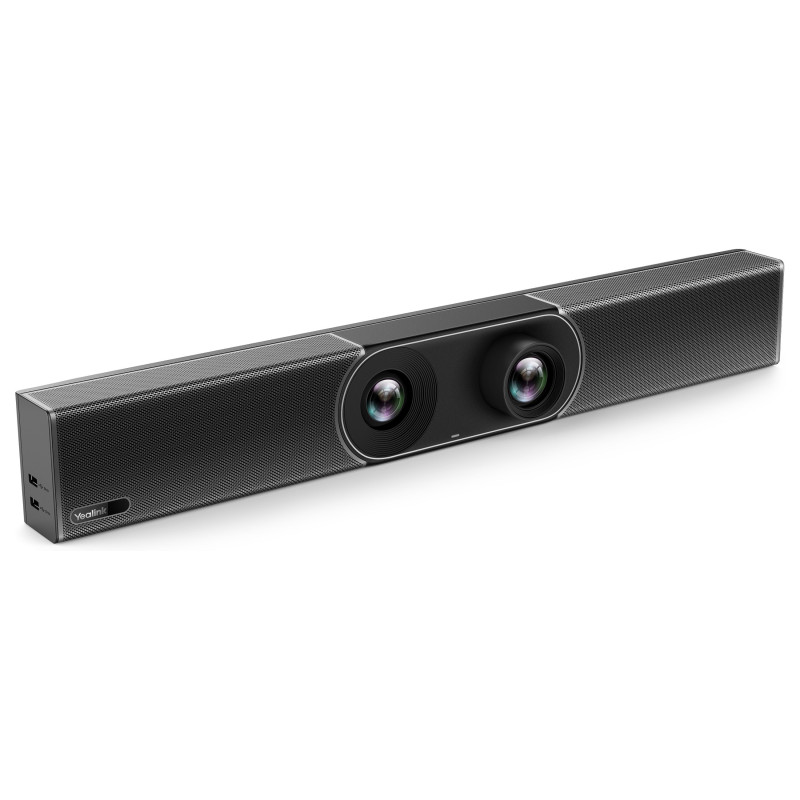

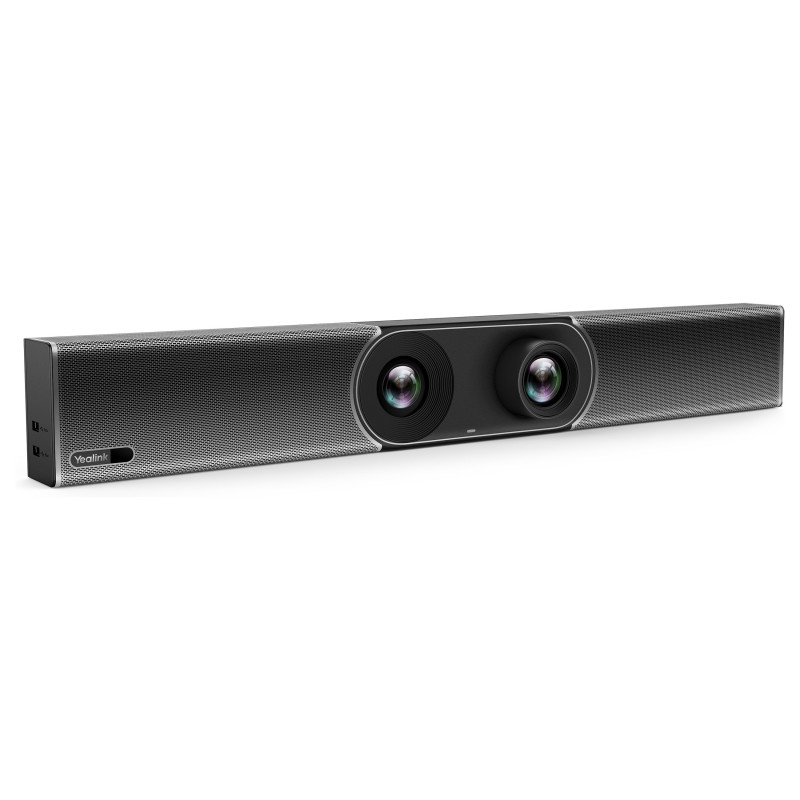

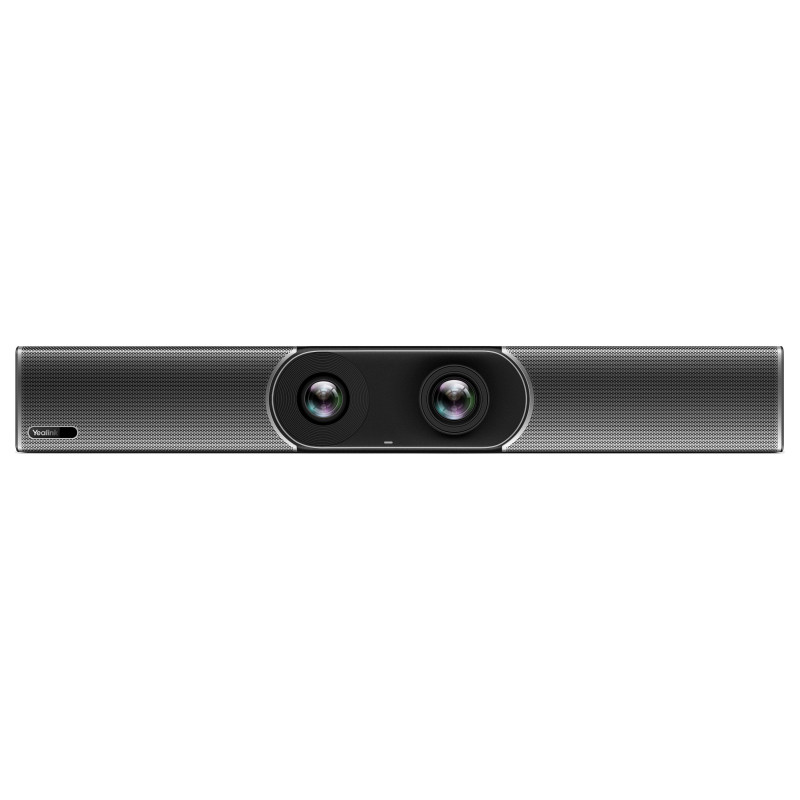

Yealink MeetingBar A30-010 video conferencing system

Yealink MeetingBar A30-010. Product type: Video collaboration bar. Ethernet LAN, Wi-Fi. Bluetooth. Operating system installed: Android 10. Product colour: Black
Yealink MeetingBar A30 is an all-ine-one video bar deisgned for medium space (up to 15, with additional extended wireless mic. VCM36). The dual-camera system catches details in a medium room precisely, with great color. AI-powered features including Auto Framing, Speaker Tracking, Picture-in-Picture and Smart Gallary deliver a focused view without distraction. The built-in 8-MEMS beamforming microphones pick up voice from all directions, and a full-duplex audio algorithm with AI-enhanced noise cancellation delivers clear sound for both sides clearly even if you are talking at the same time.

Performance

Bluetooth: Yes
Product colour: Black
Auto framing: Yes
Meeting features: Add participates, Calendar, Content sharing, Hold/Resume, One-click join, Whiteboard
Product type: Video collaboration bar
PTZ control: Yes

Video

Video codecs: H.264 High profile, H.264 SVC, H.264

Audio

Built-in speaker(s): Yes
Number of speakers: 1
Audio system full duplex: Yes
Echo cancellation: Yes
RMS rated power: 5 W

Ports interfaces

HDMI output ports quantity: 2
HDMI input ports quantity: 1
USB connector type: USB Type-A, USB Type-C
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Line-in: Yes
Line-out: Yes

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wi-Fi: Yes
Networking standards: IEEE 802.1x
VLAN support: Yes
Security algorithms: 256-bit AES, EAP-MD5, EAP-TTLS, PEAP, SRTP, TLS

Camera

Megapixel (approx.): 8 MP
Camera type: Dual camera
Second camera resolution: 8 MP
Field of view (wide): 120°
Field of view (tele): 90°

Microphone

Microphone mute: Yes
Number of microphone arrays: 8

Features

Cable lock slot: Yes

Logistics data

Country of origin: China

Computer system

Processor family: Snapdragon
Processor model: 845
Operating system installed: Android 10

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -30 - 70 °C

Power

Power source type: AC
AC input voltage: 100 - 240 V
DC output voltage: 48 V
DC output current: 0.7 A
Power consumption (typical): 10.5 W
Power consumption (idle): 13 W

Certificates

Certification: CE, FCC, RoHS, REACH, ISO 9001, CCC, NOM

Weight dimensions

Width: 700 mm
Depth: 98 mm
Height: 121 mm
Weight: 4.75 kg

Packaging data

Package width: 325 mm
Package depth: 306 mm
Package height: 903 mm
Package weight: 5.68 kg

Packaging content

Cables included: HDMI, LAN (RJ-45)
Networking cable length: 3 m
HDMI cable length: 1.8 m
AC adapter included: Yes

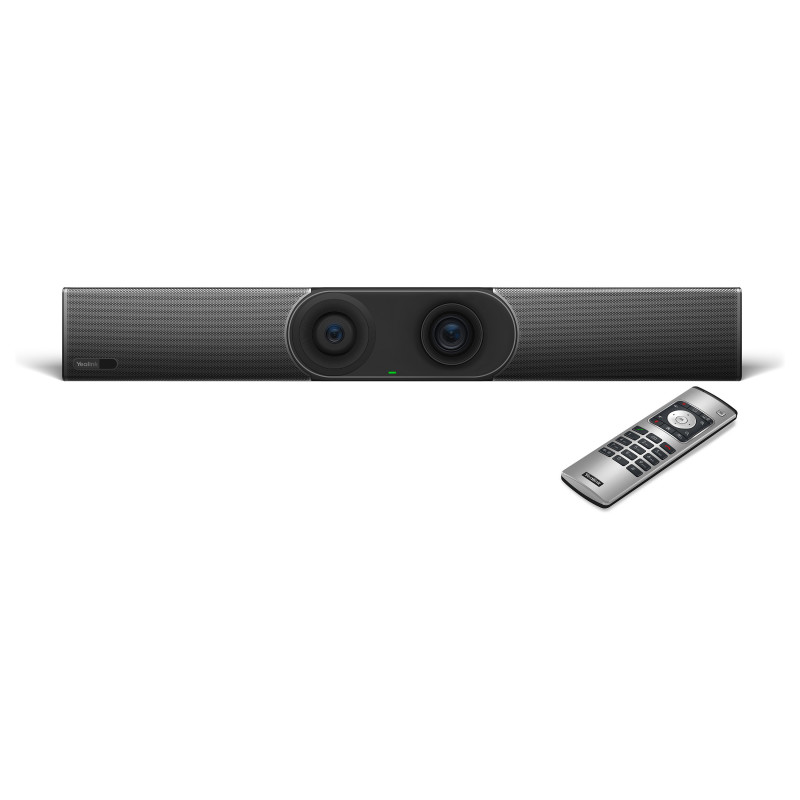

Remote control included: Yes
Quick start guide: Yes
