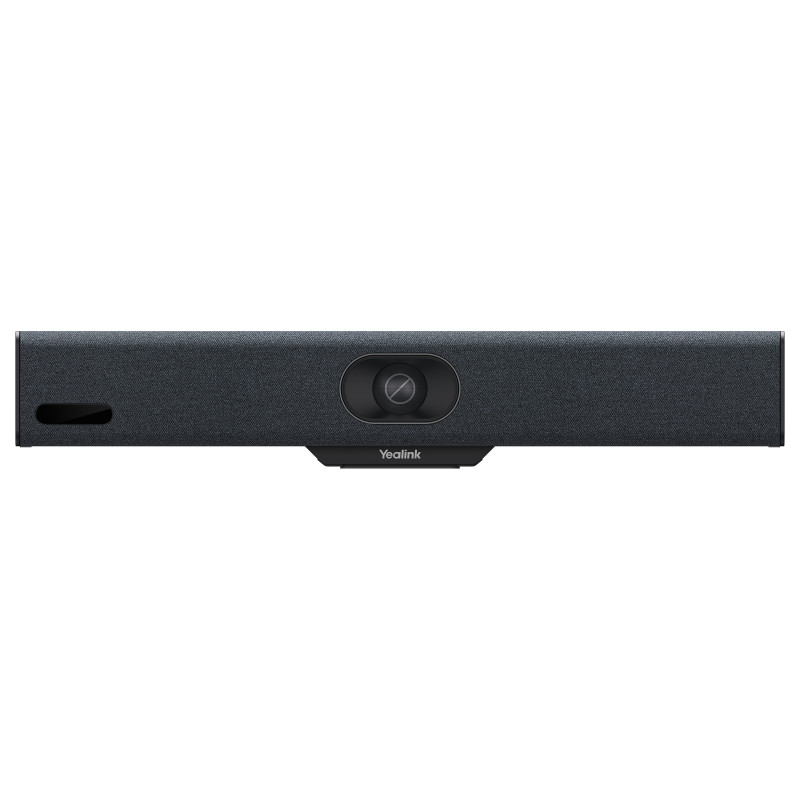

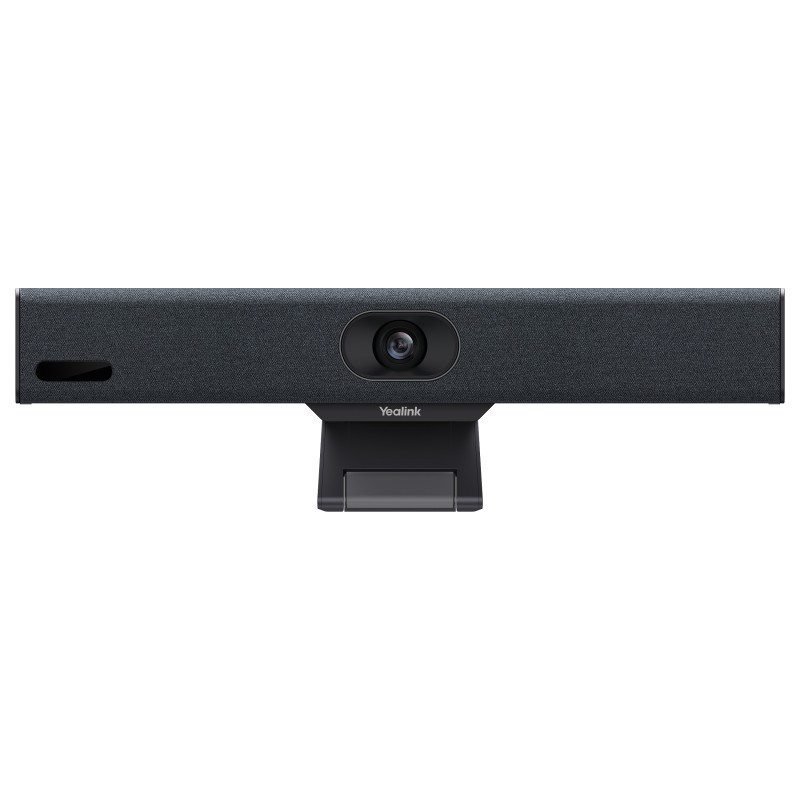

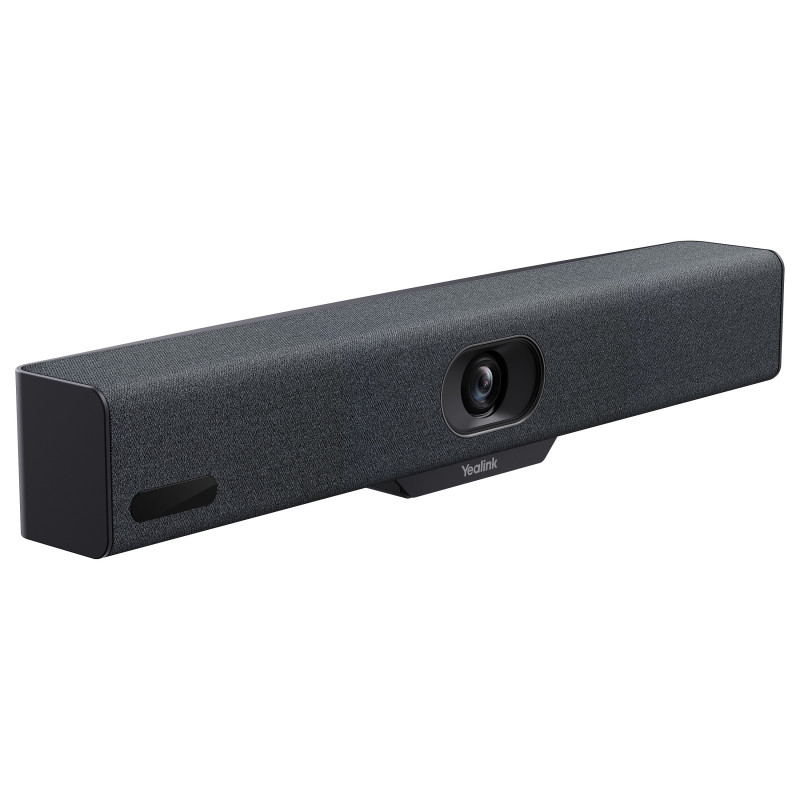

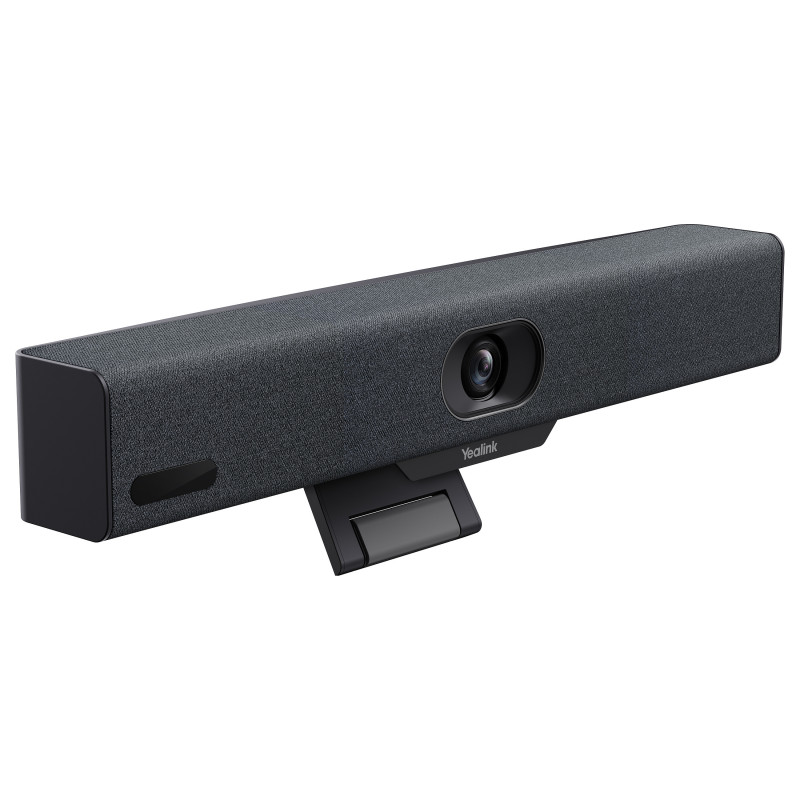

Yealink MeetingBar A10-010 video conferencing system

Yealink MeetingBar A10-010. Product type: Video collaboration bar. HD type: 4K Ultra HD, Maximum frame rate: 30 fps. Ethernet LAN, Wi-Fi. Bluetooth. Operating system installed: Android 10. Product colour: Black, Grey
Yealink MeetingBar A10 is an all-ine-one video bar deisgned for small space (1-7 people) and home office. The built-in 4k camera with 120° field of view catches details precisely, with great color. AI-powered features including Auto Framing, Speaker Tracking and Smart Gallary deliver a focused view without distraction. The built-in 8-MEMS beamforming microphones pick up voice from all directions, and a full-duplex audio algorithm with AI-enhanced noise cancellation delivers clear sound for both sides clearly even if you are talking at the same time.

Performance

Number of cameras: 1
Bluetooth: Yes
Bluetooth version: 4.2
Product colour: Black, Grey
Auto framing: Yes
Auto-tracking: Yes
Tracking modes: Presenter mode
Meeting features: Add participates, Calendar, Content sharing, Hold/Resume, One-click join
Product type: Video collaboration bar
Wall mountable: Yes
PTZ control: Yes

Video

HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Maximum frame rate: 30 fps
Video codecs: H.264 High profile, H.264 SVC, H.264

Audio

Built-in speaker(s): Yes
Audio system full duplex: Yes
Echo cancellation: Yes
Speaker power: 5 W

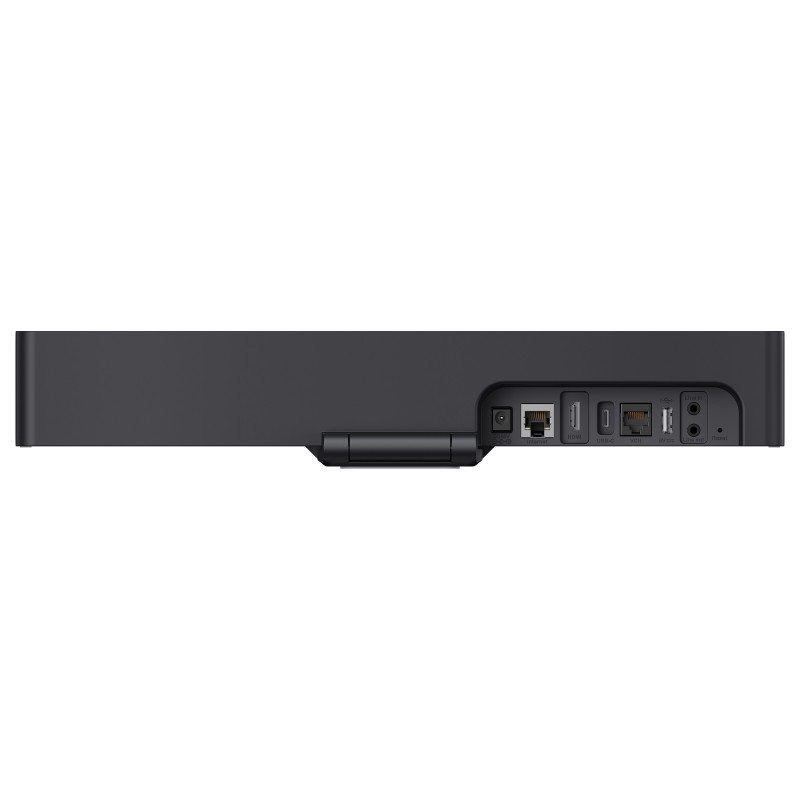

Ports interfaces

HDMI output ports quantity: 1
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Line-in: Yes
Line-out: Yes
Microphone in: Yes
Reset slot: Yes

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wi-Fi: Yes
Security algorithms: 256-bit AES, EAP-TLS, MSCHAPv2, PEAP, TLS

Camera

Camera type: Single camera
Horizontal field of view: 105°
Diagonal field of view: 120°
Auto Focus (AF) object detection: People
Remote control interface: Ethernet
Camera privacy shutter: Yes

Microphone

Microphone sensitivity: 88 dB
Microphone mute: Yes
Number of microphone arrays: 8

Features

Motion sensor: Yes
Cable lock slot: Yes

Logistics data

Country of origin: China

Computer system

Operating system installed: Android 10
Mobile operating systems supported: Android 11.0

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -30 - 70 °C

Power

Power source type: AC
AC input voltage: 100 - 240 V
DC output voltage: 48 V
DC output current: 0.7 A
Power consumption (typical): 10.5 W
Power consumption (max): 14 W
Power consumption (idle): 10 W

Certificates

Certification: CE, FCC, RoHS, REACH, ISO 9001, CCC, NOM

Weight dimensions

Width: 380 mm
Depth: 68 mm
Height: 82 mm
Weight: 2.08 kg

Packaging data

Package width: 165 mm
Package depth: 150 mm
Package height: 447 mm
Package weight: 2.31 kg

Packaging content

Cables included: HDMI, LAN (RJ-45)
Networking cable length: 3 m
HDMI cable length: 1.8 m
AC adapter included: Yes

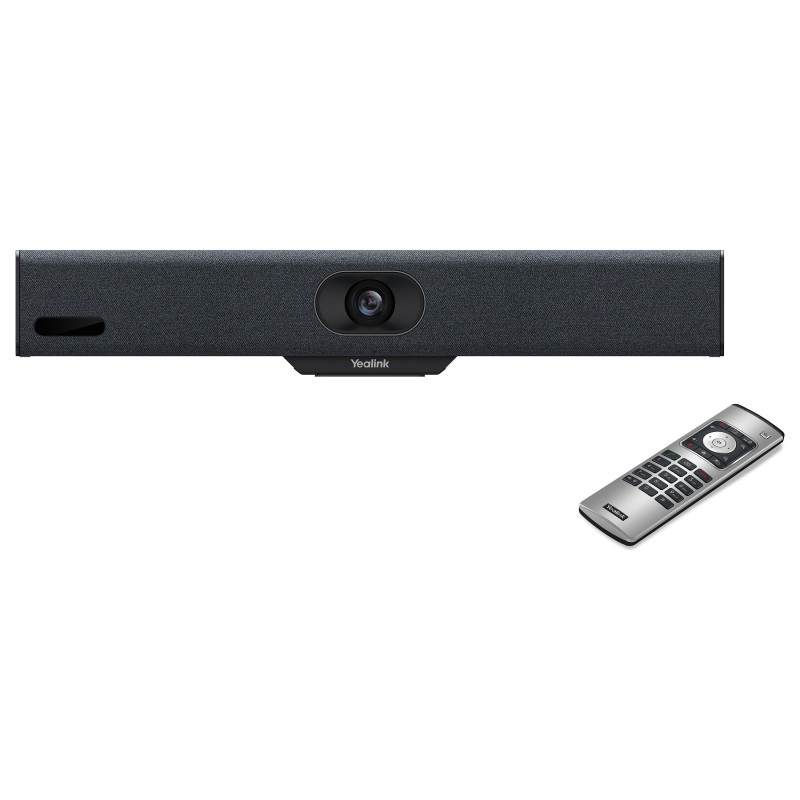

Remote control included: Yes
Quick start guide: Yes
