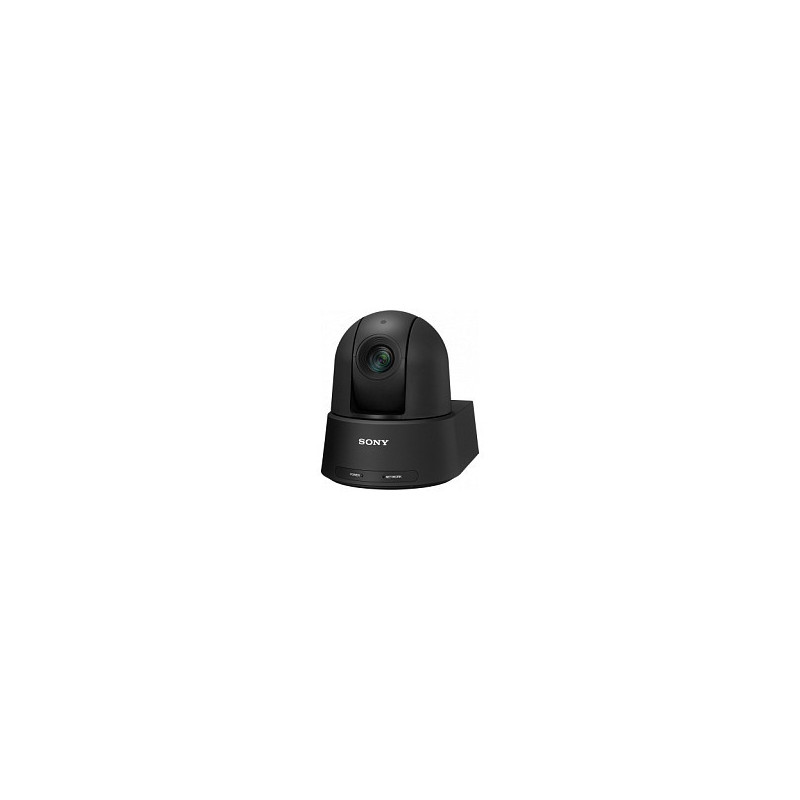

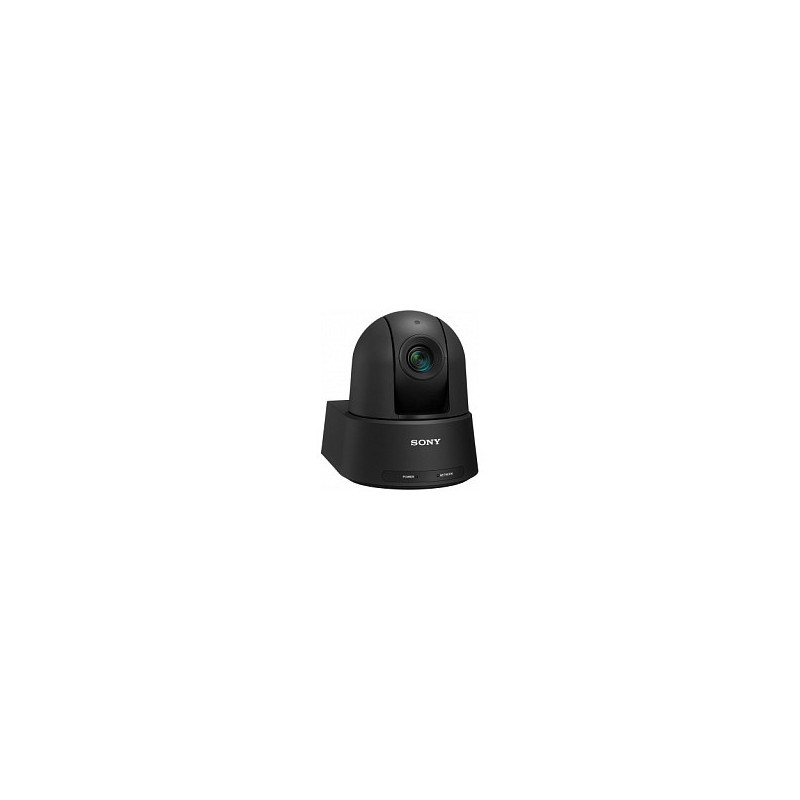

Sony SRG-A40

Sony SRG-A40. Megapixel (approx.): 8.5 MP, Sensor type: CMOS. HD type: 4K Ultra HD, Maximum video resolution: 3840 x 2160 pixels, Maximum frame rate: 60 fps. Optical zoom: 30x. Product colour: Black

SRG-A40 with PTZ Auto Framing
Revolutionary PTZ Auto Framing technology powered by built-in AI analytics ensures high quality composed shots without operator.
Shooting redefined. AI makes you free.

A Camera that Automatically and Naturally Shoots Video for you
With the advanced PTZ Auto Framing feature, the camera automatically track the target in a comfortable viewing with smooth Pan-Tilt-Zoom movement regardless of posture, movement and what one is wearing.
Since the camera does most of the work automatically, the operator can spend its time efficiently.

PTZ Auto Framing with built-in AI analytics
This camera harnesses powerful AI-powered video analytics that can automatically detect and track the position of a presenter within the camera frame. As the presenter moves, the camera's pan/tilt/zoom mechanism ensures that the presenter is always framed naturally, without the need for a human camera operator to manually follow their movements.

Automatically and reliably shoots video for you
With Sony's newly developed AI analytics algorithm, it detects the subject's skeleton and head position and matches the subject's detail features even when there are several people in the frame. It achieves accurate framing and consistent tracking.

Choice from three shooting modes
The camera has a choice of three shooting modes; Full body, Waist, and Close up. In each mode, you can adjust picture composition (size, up & down, and left & right) and the SRG-A40 and SRG-A12 can automatically track and keep the subject in the selected optimal position.

Integrated tally lamp
The SRG-A40 and SRG-A12 feature a built-in tally lamp, just like you'd find on professional studio cameras. The lamp illuminates to give presenters visual confirmation of shooting status, or to show that PTZ Auto Framing mode is active. The lamp colour will change from Red (On Air) to Green (PTZ Auto Framing ON).

Remote control of PTZ operation
Pan/Tilt/Zoom camera movements and other functions can all be precisely controlled using the supplied IR remote controller, for convenient wireless control of PTZ functions without needing additional equipment. It can also be controlled using the optional additional RM-IP500 remote controller, just like professional broadcast cameras.

Easy ceiling mounting
The camera comes supplied with a mounting plate for convenient ceiling installation if required.

Light, compact design
The camera's stylish, compact body fits unobtrusively into any environment.

Choice of colour finishes
The camera is available in a choice of black or while colour finishes, to suit the needs of any application.

Camera

Camera type: Single camera
Megapixel (approx.): 8.5 MP
Sensor type: CMOS
Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
Feature: Zoom capability
Optical zoom: 30x
Focal length range: 4.4 - 88 mm
Horizontal field of view (wide): 70°
Minimum illumination: 1.6 lx
Feature: Flip & mirror
Aperture range (F-F): 2 - 3.8
White balance: Indoor, One push, Outdoor, Auto, Manual, Daylight
Feature: Auto exposure
Light exposure modes: Manual, Auto, Shutter priority AE
Focus adjustment: Auto/Manual
Gain control type: Auto/Manual
Feature: PTZ control
PTZ protocols: VISCA
Minimum working distance (wide): 8 cm
Maximum working distance (tele): 80 cm
Slowest camera shutter speed: 1 s
Fastest camera shutter speed: 1/10000 s

Video

HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Maximum frame rate: 60 fps
Video formats supported: H.264, H.265
Supported graphics resolutions: 3840 x 2160, 1920 x 1080 (HD 1080), 640 x 360, 1280 x 720 (HD 720)
Number of TV lines: 1700

Design

Product colour: Black
Feature: Image stabilizer
Tilt angle range: -20 - 90°
Pan range: -170 - 170°
Feature: Tally light
Tilt speed (min): 0.5 °/sec
Tilt speed (max): 126 °/sec
Pan speed (min): 0.5 °/sec
Pan speed (max): 300 °/sec

Ports & interfaces

HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack
Feature: 3G-SDI output
Feature: Microphone in
VISCA output ports: 1
VISCA input ports: 1

Power

Power source type: AC, DC
DC input voltage: 19.5 V
Power consumption (typical): 80 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Packaging content

Feature: Power supply included
Cables included: AC, HDMI
Feature: Warranty card
Feature: Screws included
Feature: Mounting brackets included

System requirements

Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey

Performance

Feature: Auto framing

Audio

Audio channels: 2
Audio codecs: AAC LC 256kbps/ST (IP), AAC LC 128kbps/ST(IP)

Network

Multi-stream capability: 3
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate range: 512 - 50000 Kbit/s
Supported network protocols: IPv4, IPv6, TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, VISCA over IP, SRT

Weight & dimensions

Width: 156.7 mm
Depth: 200 mm
Height: 184 mm
Weight: 2 kg
