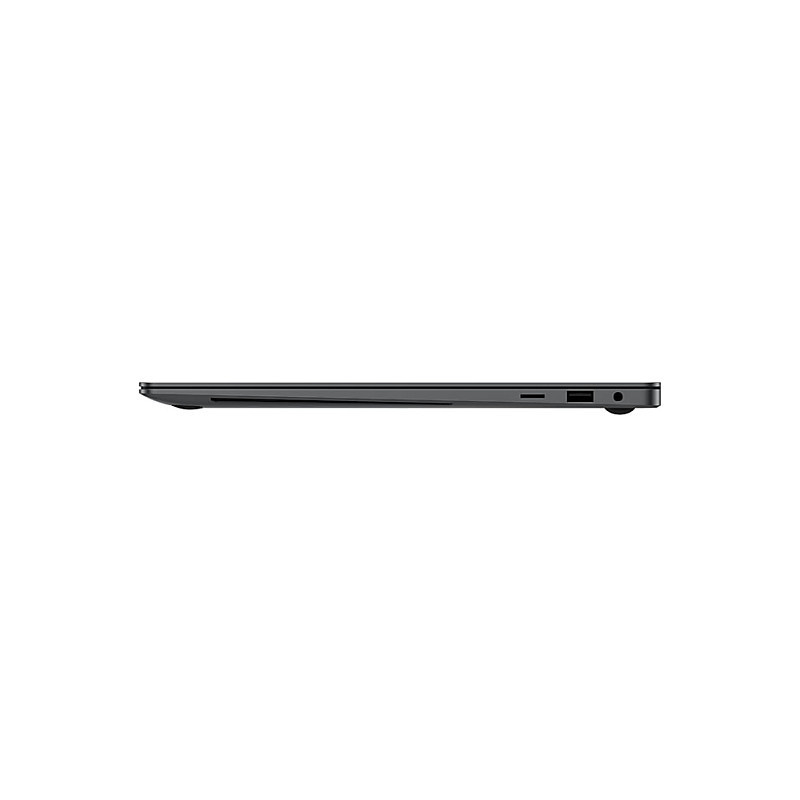

Samsung Galaxy Book5 Pro

Samsung Galaxy Book5 Pro. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 256V, Processor frequency: 4.8 GHz. Display diagonal: 40.6 cm (16"), HD type: WQXGA+, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. Operating system installed: Windows 11 Pro. Product colour: Grey

Design

Colour name: Moonstone Gray
Product type: Laptop
Product colour: Grey
Form factor: Clamshell

Display

Display diagonal: 40.6 cm (16")
Display resolution: 2880 x 1800 pixels
Feature: Touchscreen
HD type: WQXGA+
Panel type: AMOLED
Native aspect ratio: 16:10
Feature: Anti-reflective coating
Display brightness: 400 cd/m²
Maximum refresh rate: 120 Hz

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor model: 256V
Processor cores: 8
Processor threads: 8
Processor frequency: 4.8 GHz
Performance cores: 4
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 4.8 GHz
Low Power Efficient-core Max Turbo Frequency: 3.7 GHz
Performance-core base frequency: 2.2 GHz
Low Power Efficient-core Base Frequency: 2.2 MHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor base power: 17 W
Maximum turbo power: 37 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Maximum frequency NPU: 4.8 GHz
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
NPU performance up to: 47 TOPs
GPU performance up to: 20 TOPs

Memory

Internal memory: 32 GB
Internal memory type: LPDDR5x-SDRAM
Maximum internal memory: 32 GB
Memory channels: Dual-channel
Memory data transfer rate: 8533 MT/s

Storage

Total storage capacity: 512 GB
Storage media: SSD
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
Feature: NVMe
Optical drive type: No
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc Graphics 140V
On-board graphics card memory: 16 GB
On-board graphics card dynamic frequency (max): 1.95 MHz
On-board graphics card DirectX version: 12.2
On-board graphics card OpenGL version: 4.6
Maximum resolution: 7680 x 4320 pixels

Audio

Audio system: Dolby Atmos
Number of built-in speakers: 4
Speaker power: 5 W
Feature: Built-in microphone
Number of microphones: 2

Camera

Feature: Front camera
Front camera resolution (numeric): 2 MP

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Feature: Intel® Thunderbolt 4
Feature: Combo headphone/mic port

Performance

Feature: Ambient light sensor
Repairability index: 8.7

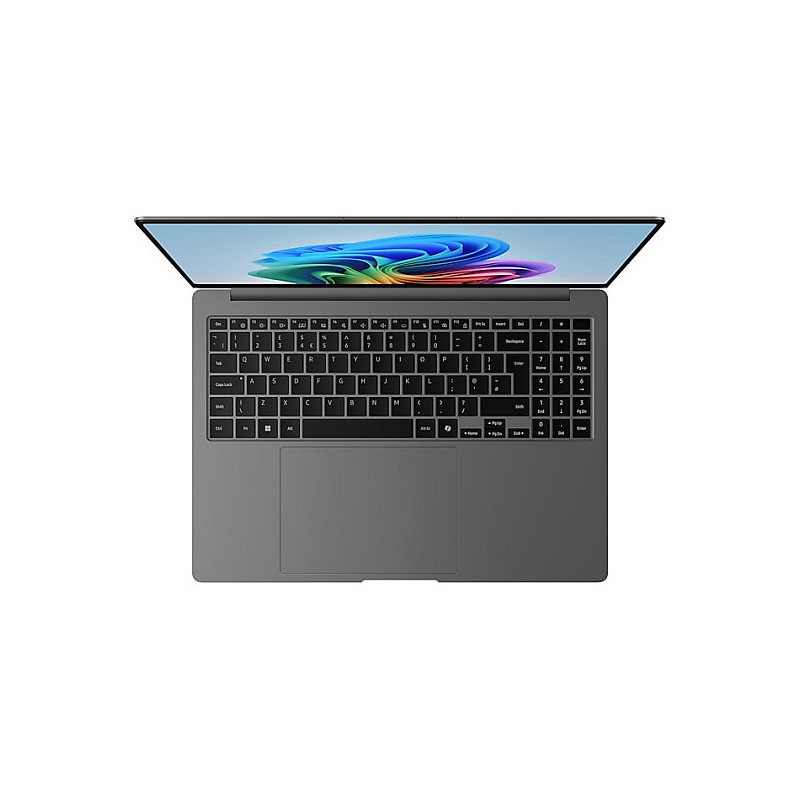

Keyboard

Pointing device: Clickpad
Feature: Numeric keypad
Feature: Keyboard backlit
Keyboard layout: QWERTZ
Keyboard language: German

Software

Operating system installed: Windows 11 Pro

Battery

Battery capacity: 74 Wh
Feature: Fast charging

Power

Feature: USB Type-C charging port

Security

Feature: Fingerprint reader
Feature: Trusted Platform Module (TPM)

Weight & dimensions

Width: 355.4 mm
Depth: 250.4 mm
Height: 12.5 mm
Weight: 1.56 kg
