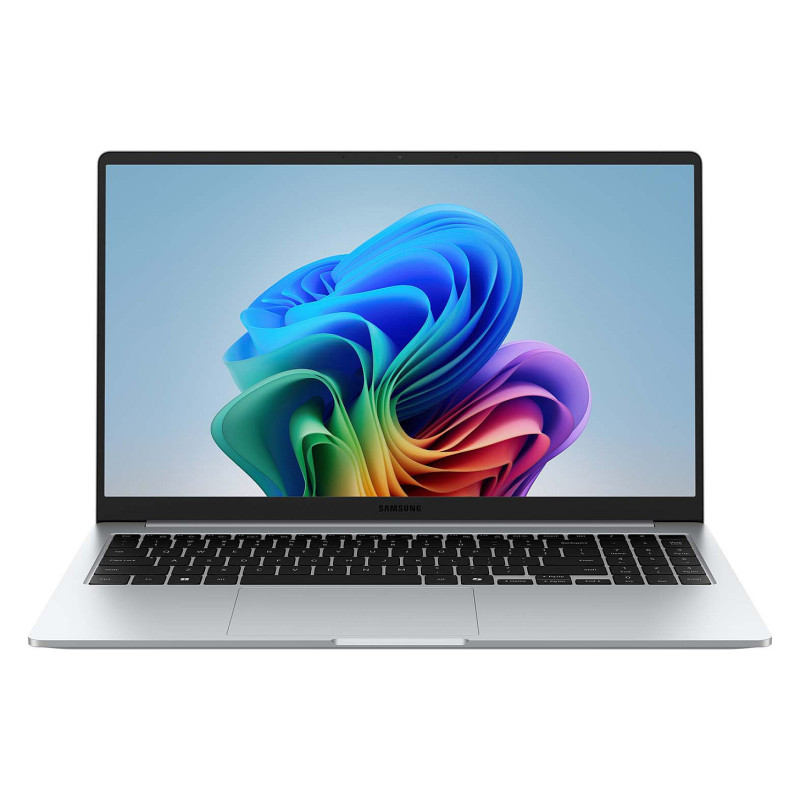

Samsung Galaxy Book5 NP754XHD-KD2DE laptop

Samsung Galaxy Book5 NP754XHD-KD2DE. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 5, Processor model: 226V. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 130V. Operating system installed: Windows 11 Pro. Product colour: Silver. Weight: 1.55 kg
Get ready to upgrade your laptop game with the Samsung Galaxy Book5 range. In this article, we'll break down the differences between the latest Galaxy Book5 360, Galaxy Book5 Pro and Galaxy Book5 Pro 360. Discover which model is perfect for gaming, which offers the best performance for professionals, and which best suits students and creatives. No matter your needs, we're confident that there's a Galaxy Book5 laptop that's just right for you.

Design

Product type: Laptop
Product colour: Silver
Form factor: Clamshell

Display

Display diagonal: 39.6 cm (15.6")
Display resolution: 1920 x 1080 pixels
Touchscreen: No
HD type: Full HD
Panel type: IPS
Anti-glare screen: Yes
Display brightness: 370 cd/m²
Maximum display brightness (HDR): 500 cd/m²
Pixel density: 141 ppi
Maximum refresh rate: 60 Hz

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor model: 226V
Processor cores: 8
Processor threads: 8
Processor boost frequency: 4.5 GHz
Performance cores: 4
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 4.5 GHz
Low Power Efficient-core Max Turbo Frequency: 3.5 GHz
Performance-core base frequency: 2.1 GHz
Low Power Efficient-core Base Frequency: 2100 MHz
Processor cache: 8 MB
Processor cache type: Smart Cache
Processor base power: 17 W
Maximum turbo power: 37 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML
Total processor performance up to: 97 TOPs
NPU performance up to: 40 TOPs
GPU performance up to: 53 TOPs

Memory

Internal memory: 32 GB
Internal memory type: LPDDR5x-SDRAM
Memory form factor: On-board

Storage

Total storage capacity: 512 GB
Storage media: SSD
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
NVMe: Yes
Optical drive type: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)

Graphics

Discrete graphics card model: Not available
On-board graphics card: Yes
On-board GPU manufacturer: Intel
Discrete graphics card: No
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc Graphics 130V

Audio

Audio system: Dolby Atmos
Number of built-in speakers: 2
Speaker power: 2 W
Built-in microphone: Yes
Number of microphones: 2

Camera

Front camera: Yes
Front camera resolution: 1920 x 1080 pixels
Front camera HD type: Full HD

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Mobile network connection: No
Antenna type: 2x2
Bluetooth: Yes
Bluetooth version: 5.4

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB4 Gen 2x2 ports quantity: 2
HDMI ports quantity: 1
Combo headphone/mic port: Yes

Performance

Accelerometer: Yes
Gyroscope: Yes
Hall sensor: Yes

Keyboard

Pointing device: Touchpad
Numeric keypad: Yes
Island-style keyboard: Yes
Keyboard language: German

Software

Operating system installed: Windows 11 Pro

Battery

Battery technology: Lithium-Ion (Li-Ion)
Number of battery cells: 4
Removable battery: No
Battery weight: 259 g

Power

AC adapter power: 65 W

Security

Cable lock slot: Yes
Cable lock slot type: Kensington
Fingerprint reader: No
Trusted Platform Module (TPM): Yes

Weight dimensions

Width: 356 mm
Depth: 228 mm
Height: 15.1 mm
Weight: 1.55 kg

Packaging content

AC adapter included: Yes
