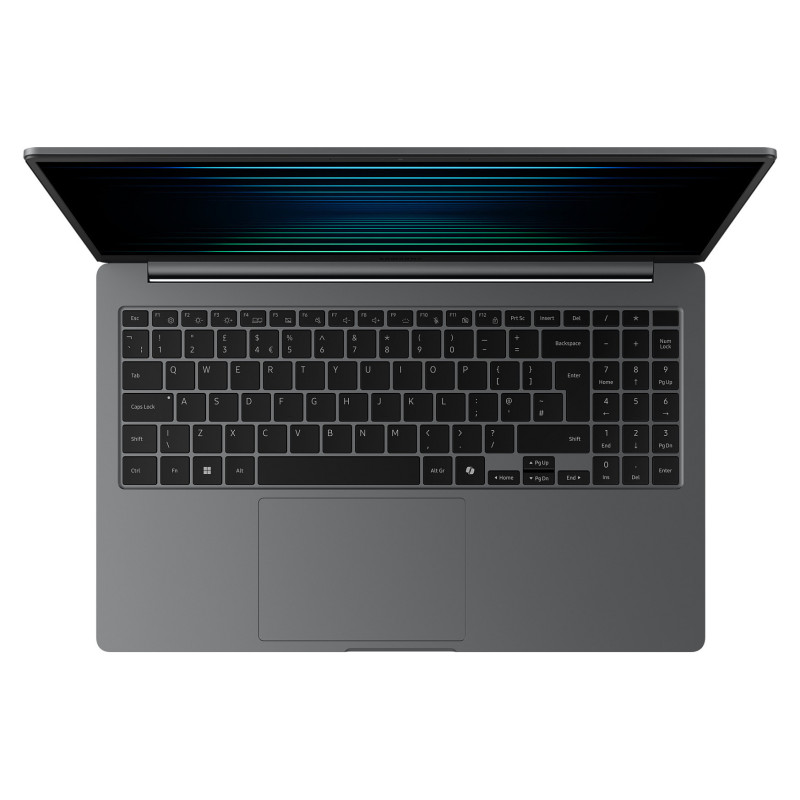

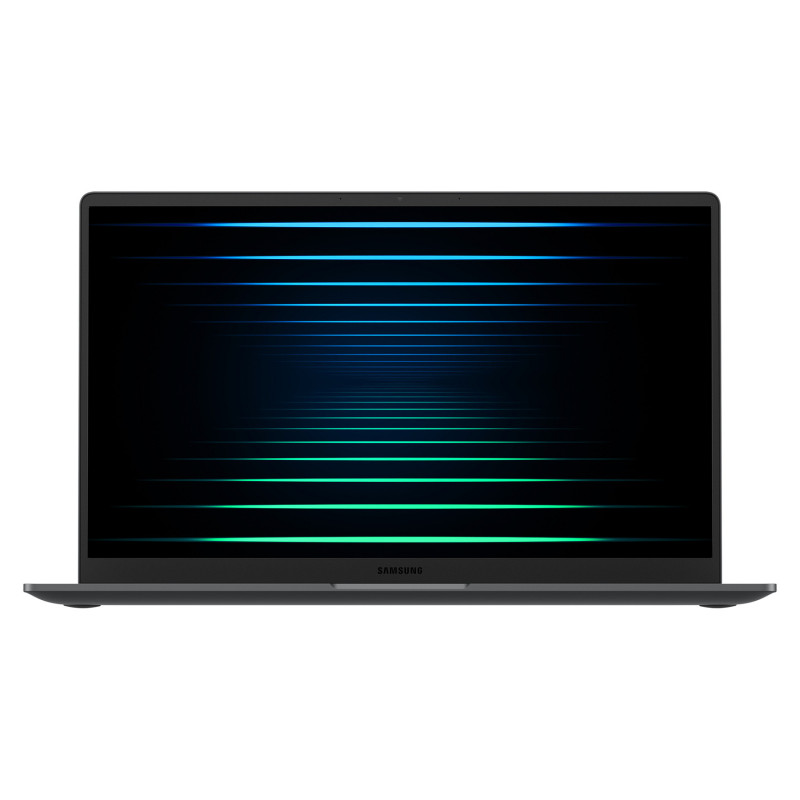

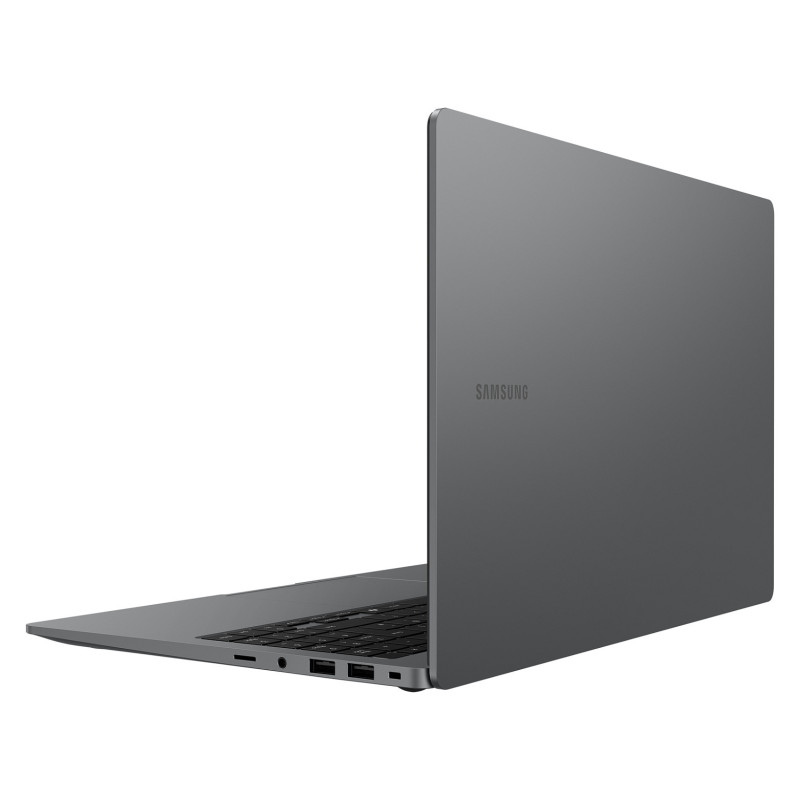

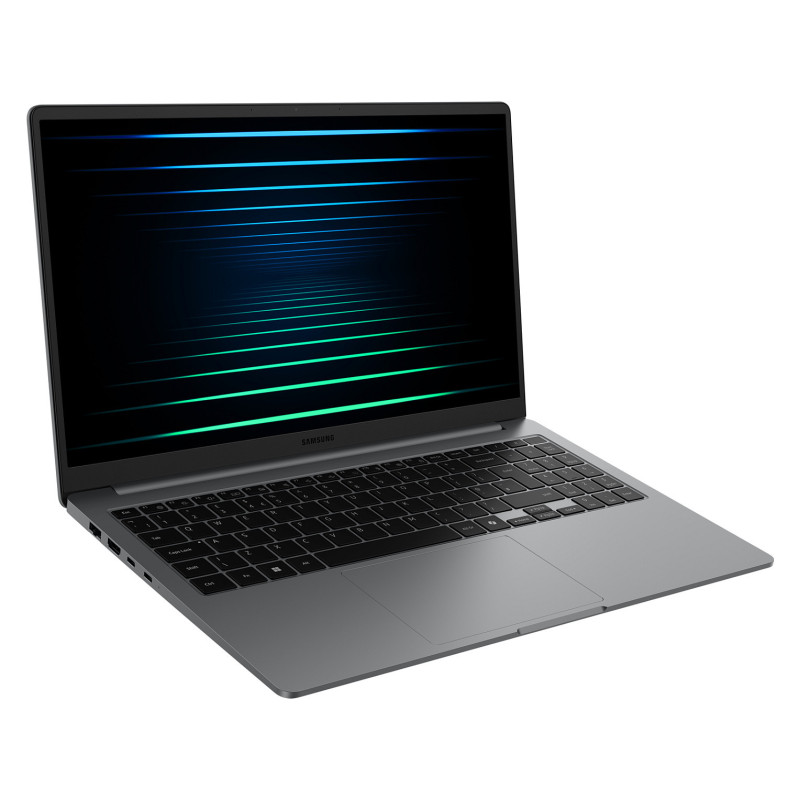

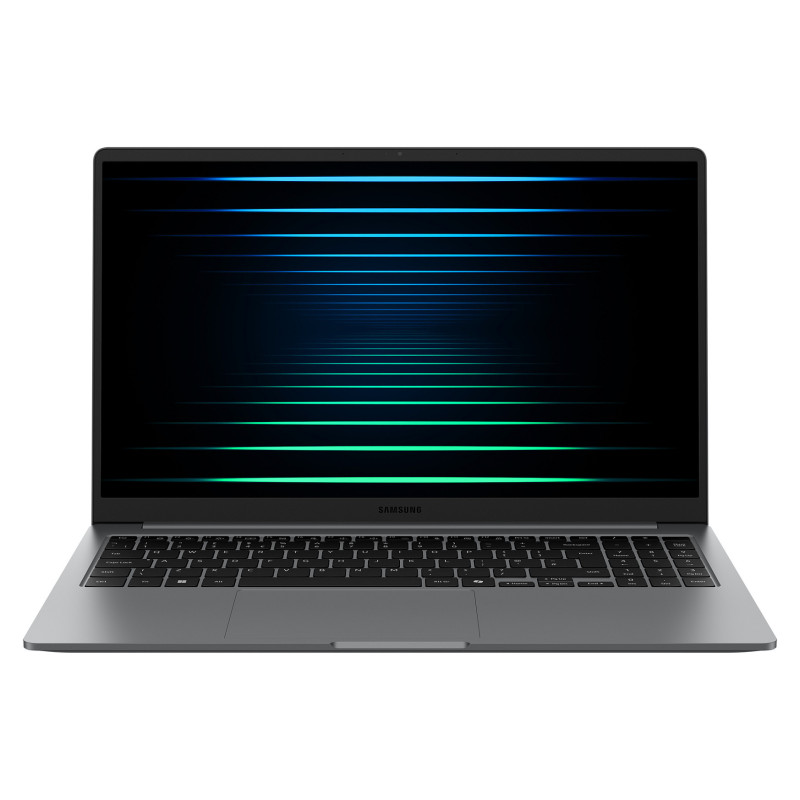

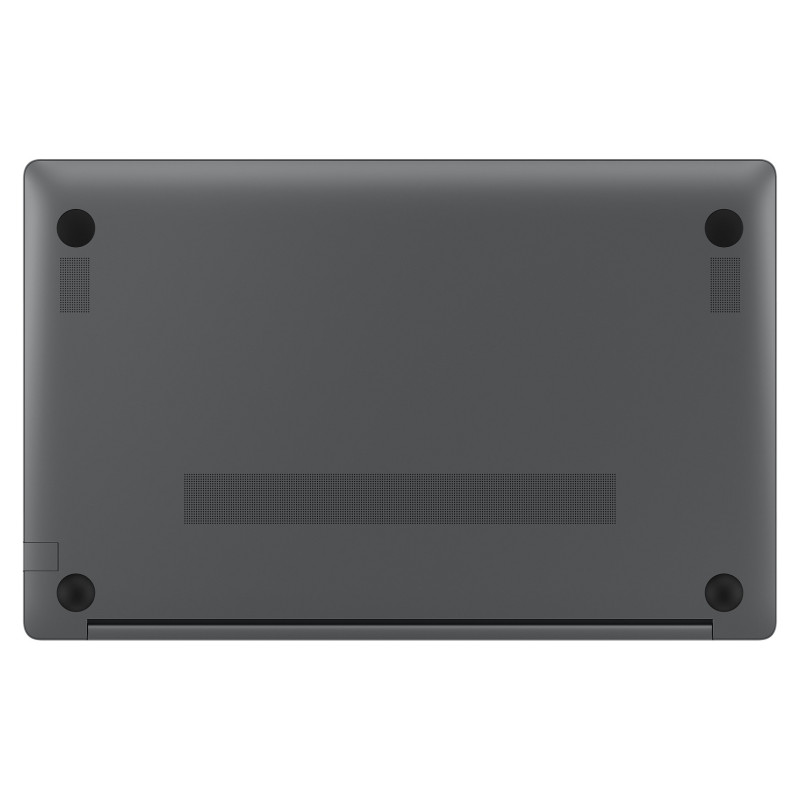

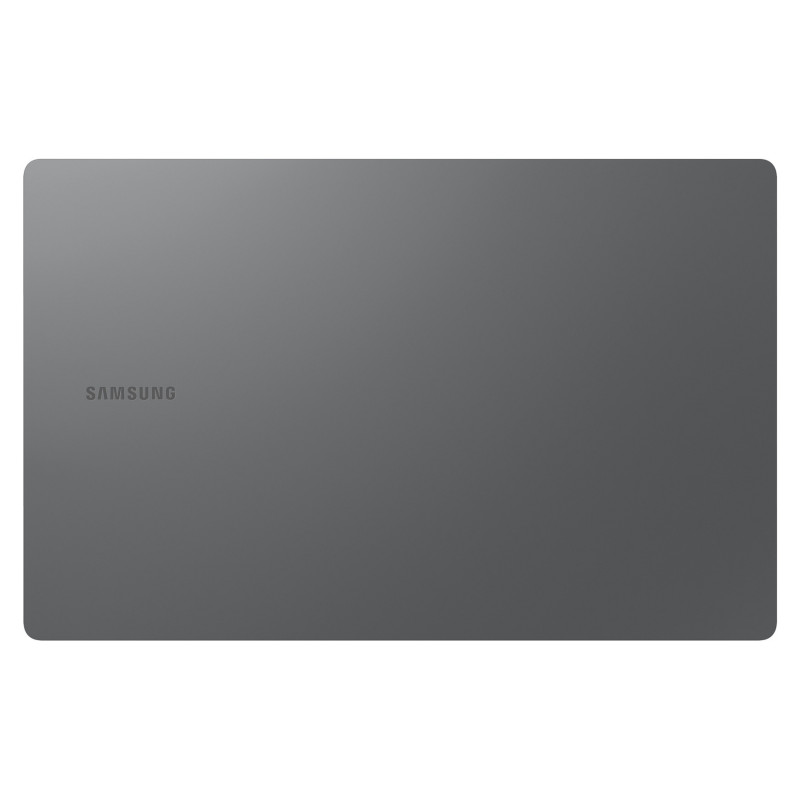

Samsung Galaxy Book5 NP750XHD-KD3DE laptop

Samsung Galaxy Book5 NP750XHD-KD3DE. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255U. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 8 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel Graphics. Operating system installed: Windows 11 Home. Product colour: Grey. Weight: 1.55 kg

Design

Product type: Laptop
Product colour: Grey
Form factor: Clamshell

Display

Display diagonal: 39.6 cm (15.6")
Display resolution: 1920 x 1080 pixels
Touchscreen: No
HD type: Full HD
Panel type: IPS
Anti-glare screen: Yes

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor model: 255U
Processor cores: 12
Processor threads: 14
Processor boost frequency: 5.2 GHz
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.2 GHz
Low Power Efficient-core Max Turbo Frequency: 2.4 GHz
Performance-core base frequency: 2 GHz
Efficient-core base frequency: 1.7 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Processor cache: 12 MB
Processor cache type: Last Level Cache
Processor base power: 15 W
Maximum turbo power: 57 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML
NPU performance up to: 12 TOPs

Memory

Internal memory: 8 GB
Internal memory type: LPDDR5x-SDRAM
Memory form factor: On-board

Storage

Total storage capacity: 256 GB
Storage media: SSD
Total SSDs capacity: 256 GB
Number of SSDs installed: 1
SSD capacity: 256 GB
NVMe: Yes
Optical drive type: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)

Graphics

Discrete graphics card model: Not available
On-board graphics card: Yes
Discrete graphics card: No
On-board graphics card model: Intel Graphics
On-board graphics card DirectX version: 12.2
On-board graphics card 4K support: Yes
On-board graphics card OpenGL version: 4.6
On-board graphics card 6K support: Yes
On-board graphics card 8K support: Yes
Graphics card Open GL support: Yes

Audio

Audio system: Dolby Atmos
Number of built-in speakers: 2
Speaker power: 2 W
Built-in microphone: Yes
Number of microphones: 2

Camera

Front camera: Yes
Front camera resolution: 1920 x 1080 pixels
Front camera HD type: Full HD

Network

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Mobile network connection: No
Antenna type: 2x2
Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Bluetooth: Yes
Bluetooth version: 5.2

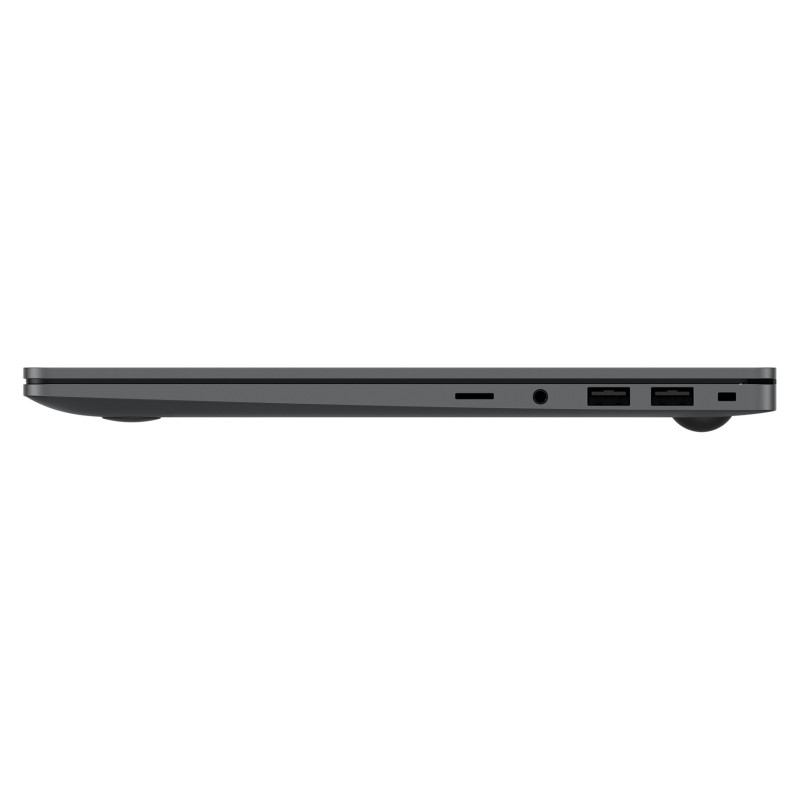

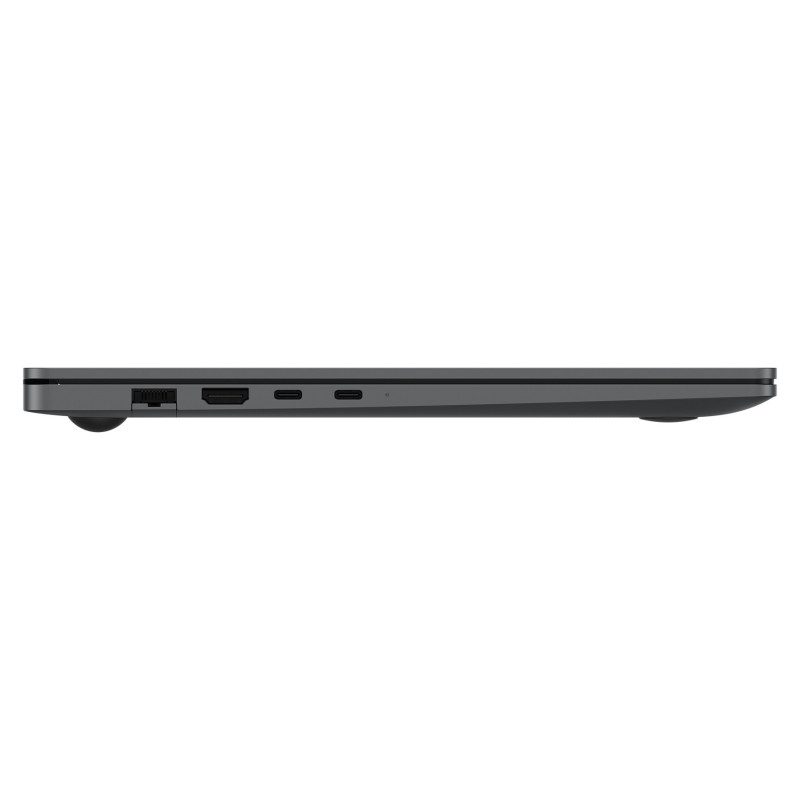

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Combo headphone/mic port: Yes

Keyboard

Pointing device: Touchpad
Numeric keypad: Yes
Island-style keyboard: Yes
Keyboard layout: QWERTZ
Keyboard language: German

Software

Operating system installed: Windows 11 Home
Bundled software: Galaxy Book ExperienceMulti ControlSecond ScreenSamsung NotesSamsung GalleryQuick ShareSamsung AccountSamsung SettingsAI SelectSmartThingsQuick SearchSamsung Device CareEnregistreur d'écranFond d'écran animé (Live Wallpaper)BixbySamsung FindSamsung FlowSamsung StudioPhoneGalaxy Book Smart SwitchSamsung Pass

Processor special features

CPU configuration (max): 1

Battery

Battery capacity: 61.2 Wh
Battery life (max): 19 h

Power

AC adapter power: 45 W

Security

Cable lock slot: Yes
Cable lock slot type: Kensington
Fingerprint reader: No
Trusted Platform Module (TPM): Yes

Weight dimensions

Width: 356.6 mm
Depth: 228 mm
Height: 15.1 mm
Weight: 1.55 kg

Packaging content

AC adapter included: Yes
