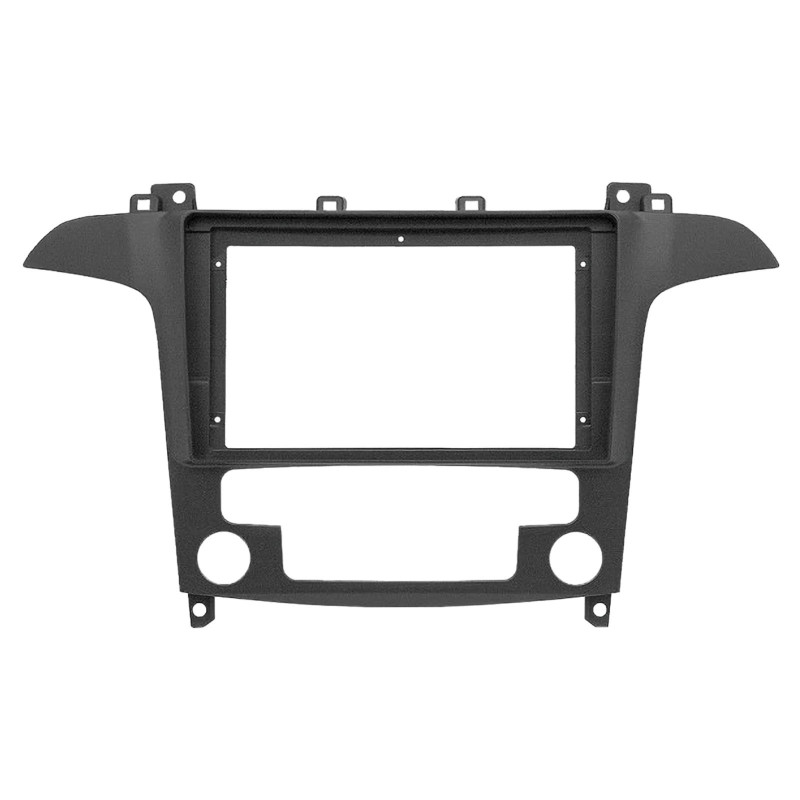

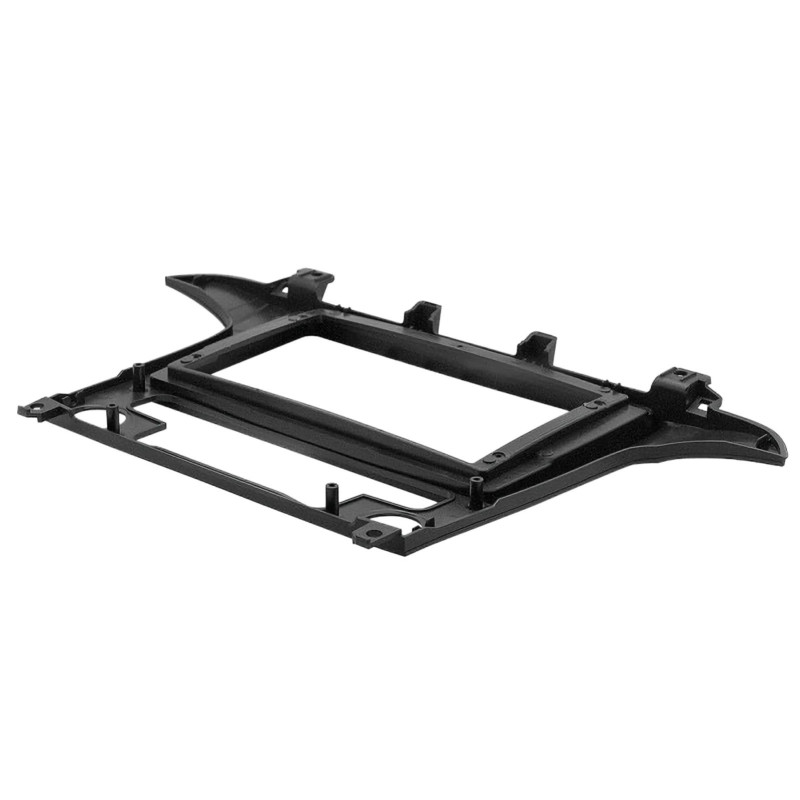

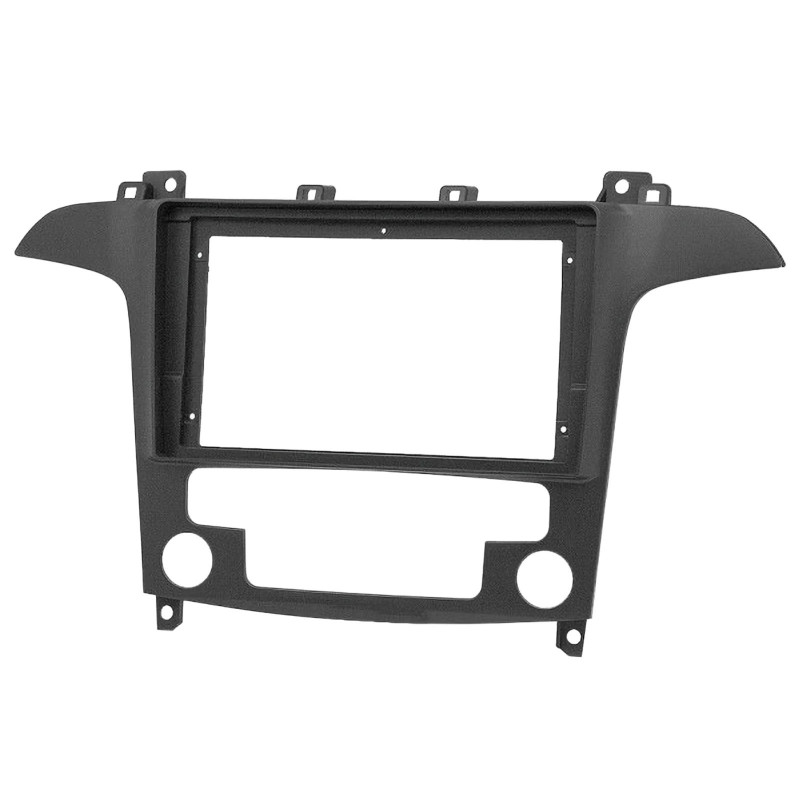

Radio frame 9 inches Ford Galaxy II / S-Max 2006-2015 Klimatronik (black) 381114-98-1

The 9-inch mounting frame was designed for owners of the Ford Galaxy II and Ford S-Max WA6 equipped with automatic air conditioning (Klimatronic). Because the factory radio and navigation system have non-standard dimensions, upgrading to a modern multimedia station requires the use of a properly fitted mounting frame.

This product ensures proper mounting hole alignment for 9-inch devices. Furthermore, the frame aesthetically integrates the new radio with the center console, maintaining a cohesive look for the vehicle's interior. Furthermore, the black finish blends seamlessly with the factory cockpit elements, while also enhancing the interior's modern character.

The frame is made of high-quality plastic, making it durable and resistant to everyday use. It also allows for the installation of modern devices equipped with GPS navigation, Bluetooth, Apple CarPlay, and Android Auto.

Advantages of the radio frame

• Perfect fit for Ford Galaxy II and Ford S-Max WA6 • Designed for vehicles equipped with Klimatronik • Allows for the installation of a 9" aftermarket radio • Thanks to its precise workmanship, it ensures an aesthetic finish to the cockpit • It also allows you to maintain the original appearance of the vehicle interior • Effectively masks gaps after dismantling the factory device • Additionally, it facilitates the modernization of the multimedia system • Durable construction guarantees a long product life • Black color harmoniously matches the dashboard

Vehicle compatibility

Ford Galaxy II (WA6)

• 03/2006 - 04/2010• 05/2010 - 05/2015

Ford S-Max (WA6)

• 06/2006 - 04/2010• 05/2010 - 05/2015

Equipment requirements

• Vehicles equipped with automatic air conditioning (Klimatronik) • Vehicles without factory-installed 7" color navigation with integrated Klimatronik system

Technical data

• Radio size: 9 inches
• Color: black
• Material: high-quality plastic
• Mounting hole dimensions: 230/220 × 130 mm

Supported devices

• 9" Tablet devices with a trapezoidal screen • 9" modular devices with a display and Silverbox unit • 9" L-Body devices (however, individual mounting conditions must be checked)

Additional adapters and interfaces

Depending on the vehicle's equipment level, additional accessories may be required. These most commonly include:

• radio connection cables • antenna adapter • steering wheel control adapter • rear view camera adapter • active system adapter

Moreover, properly selected adapters allow you to maintain the functionality of the vehicle's factory systems, so it is worth taking them into account when planning the installation.

Installation

• device assembly with individually selected accessories • display assembly with appropriate installation elements • recommended additional mounting of the frame in the radio pocket • if necessary, adjustments can be made using workshop tools

Additionally, before beginning assembly, it's worth checking the compatibility of all components. This will make installation more efficient and help avoid unnecessary modifications.

Application: This radio frame is perfect for upgrading the multimedia system in the Ford Galaxy II and Ford S-Max WA6. It allows you to install an Android radio with GPS navigation, as well as Apple CarPlay and Android Auto support. It also allows you to connect a reversing camera, a driving recorder, and other modern multimedia accessories. This makes it an ideal solution for drivers who want to enhance their car's functionality while maintaining the aesthetic appearance of the interior.
