Radio frame 9 inch Ford Galaxy II / S-Max 2006-2015 manual air conditioning (black) 381114-98-2

Radio frame 9 inch Ford Galaxy II / S-Max 2006-2015 manual air conditioning (black) 381114-98-2

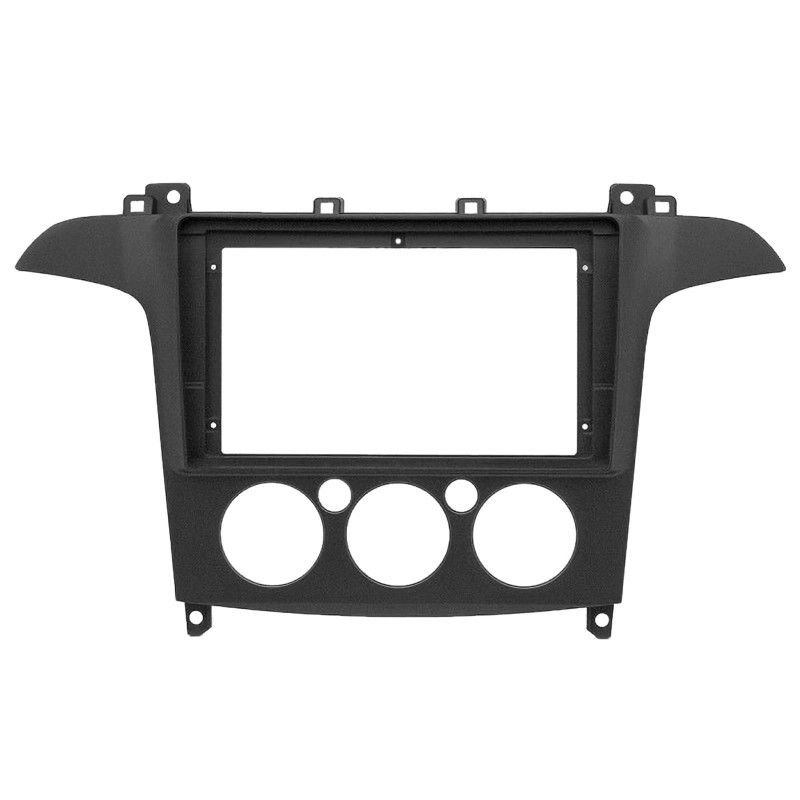

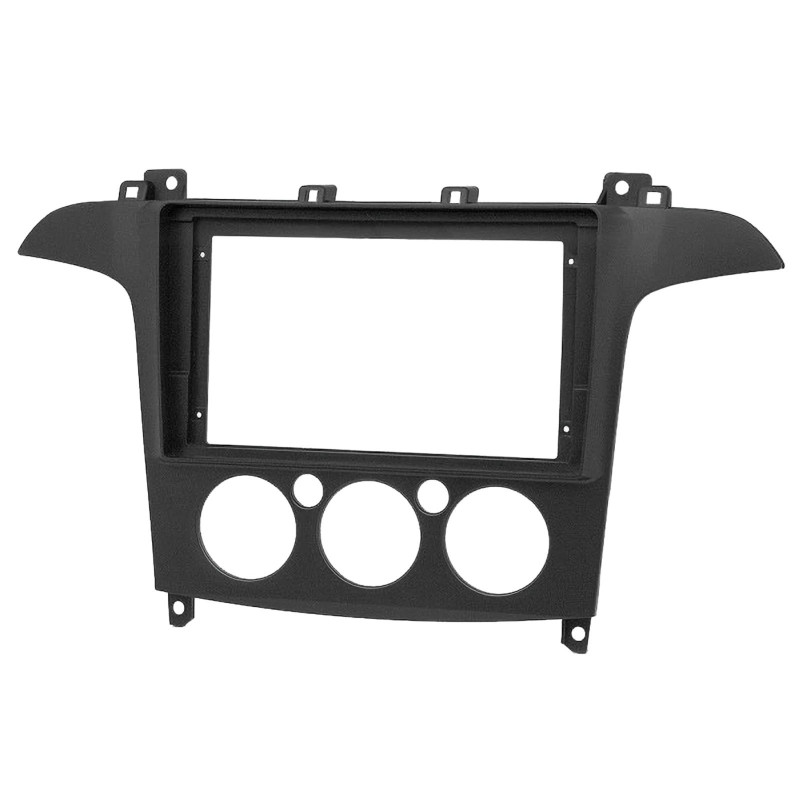

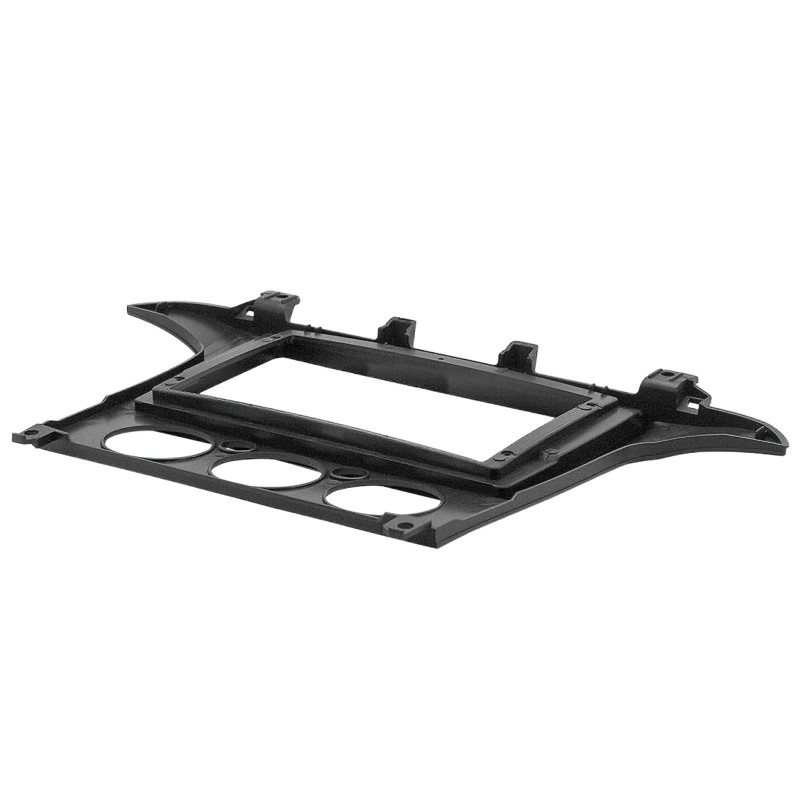

This 9-inch mounting frame for Ford Galaxy II and Ford S-Max vehicles equipped with manual air conditioning is designed to replace the factory radio or navigation system with a modern multimedia device. Because vehicle manufacturers use custom-tailored audio solutions, installing an aftermarket radio requires the use of a suitable mounting frame.

This product allows for precise adjustment of the mounting hole for 9-inch devices. Furthermore, the frame allows for aesthetic integration of the new radio with the dashboard, creating a cohesive and professional overall look. It also effectively conceals gaps created by removing the factory unit, while also enhancing the appearance of the vehicle's interior.

The frame is made of durable plastic, ensuring its aesthetic appearance is maintained for a long time. Furthermore, it allows for convenient multimedia system upgrades without altering the cockpit's design.

Advantages of the radio frame

• Perfect fit for Ford Galaxy II and Ford S-Max
• Allows installation of an aftermarket 9" radio
• Thanks to precise workmanship, it ensures aesthetic interior finish
• Moreover, it allows to maintain the factory character of the cockpit
• Effectively masks the spaces around the new device
• Additionally, it facilitates the modernization of the audio and navigation system
• Durable construction guarantees long product life

Vehicle compatibility

Ford Galaxy II (WA6)
• 03/2006 - 04/2010
• 05/2010 - 05/2015

Ford S-Max (WA6)
• 06/2006 - 04/2010
• 05/2010 - 05/2015

Equipment requirements

• Vehicles equipped with manual air conditioning
• Vehicles without factory color 7" navigation with integrated automatic air conditioning

Technical data

• Radio size: 9 inches
• Color: black
• Mounting hole dimensions: 230/220 × 130 mm

Supported devices

• 9" Tablet devices with trapezoidal screen
• 9" modular devices with display and Silverbox unit
• 9" L-Body devices (please check individual mounting conditions)

Additional adapters and interfaces

Depending on the vehicle's equipment level, additional accessories may be required. These most commonly include:

• radio connection cables
• antenna adapter
• steering wheel control adapter
• reversing camera adapter
• active system adapter

Moreover, properly selected adapters allow you to maintain the functionality of the vehicle's factory systems, so it is worth taking them into account when planning the installation.

Installation

• device assembly with individually selected accessories
• display assembly with appropriate installation elements
• recommended additional mounting of the frame in the radio pocket
• if necessary, adjustments can be made using workshop tools

Additionally, before beginning installation, it's worth verifying the compatibility of all components. This will make installation more efficient and help avoid unnecessary modifications.

Application

The 9-inch radio frame for the Ford Galaxy II / S-Max 2006-2015 manual air conditioning (black) 381114-98-2 is perfect for upgrading the multimedia system in the Ford Galaxy II and Ford S-Max models. It allows you to install a radio with Android, GPS navigation, and support for
