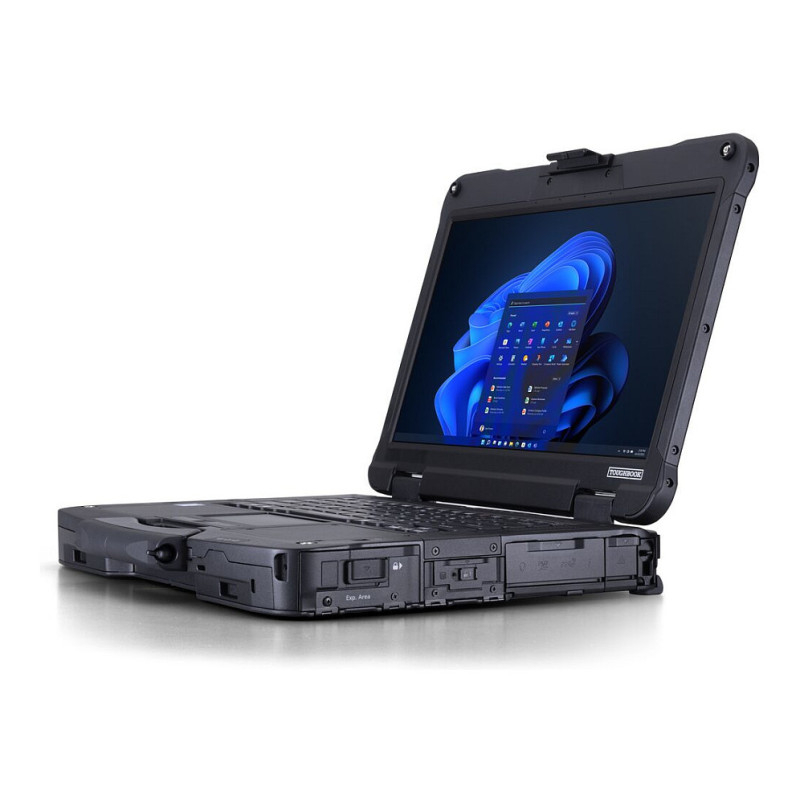

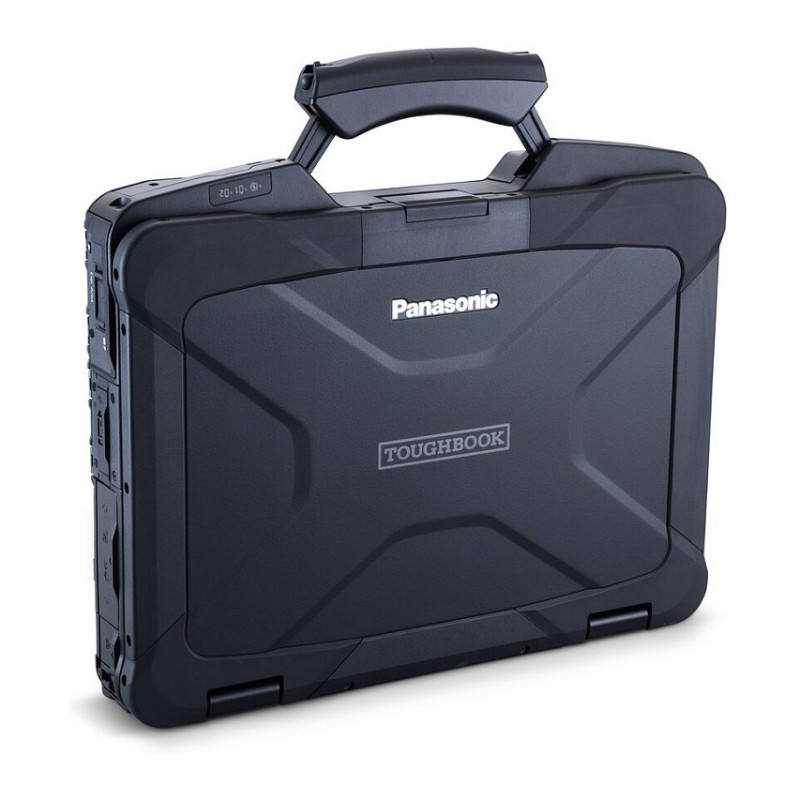

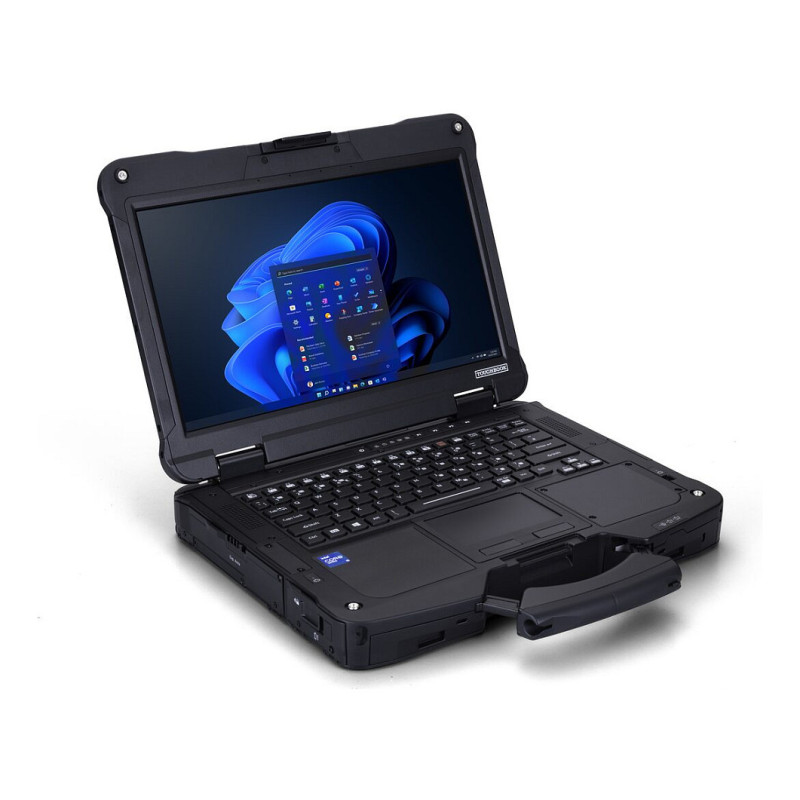

Panasonic Toughbook FZ-40FZ001B4 laptop

Panasonic Toughbook FZ-40FZ001B4. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 5, Processor model: 135H. Display diagonal: 35.6 cm (14"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Touchscreen. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. Mobile network generation: 4G. Operating system installed: Windows 11 Pro. Product colour: Black

AI capabilities underpinned by enhanced graphics performance
One of the first rugged notebooks using Windows 11 Pro to offer AI edge processing capabilities, the new 14-inch TOUGHBOOK 40 utilises the Intel® Core™ Ultra 5 processor 135H (with Intel vPro® Technology).

For those requiring unmatched performance for the most demanding applications, the optional new Intel® Core™ Ultra7 processor 165H (with Intel vPro® Technology) delivers an additional boost in computing power.

Both processors feature a dedicated AI chipset that enables data to be collected, stored, and analysed using artificial intelligence, without uploading and downloading data through a connection to the cloud - and without affecting the device's overall performance and processing power.

Future-proofed connectivity
The TOUGHBOOK 40mk2 is better connected than ever before as one of the first rugged notebooks to include the latest Intel® Wi-Fi 7 BE200 specification. The increased connectivity speeds (up to 5.8 Gbps and greater than 2x compared to Wi-Fi 6E) and ultra-low latency, enable field workers to take advantage of reliable, super-fast transfers of data when back in the office or field base.

For truly remote workers, the new TOUGHBOOK 40 features optional 4G and 5G connectivity with eSIM support, providing reliable connectivity on the move.

Market-leading ruggedness or modularity
The TOUGHBOOK 40mk2 features the same market-leading ruggedness and modularity, providing the modern mobile worker with a balanced solution, regardless of the task, application or environment.

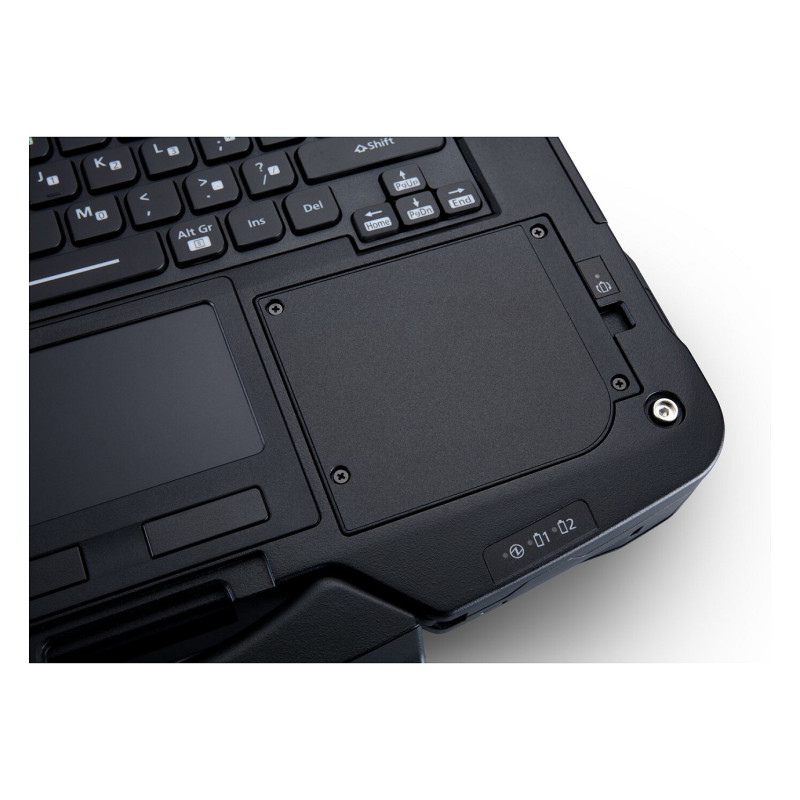

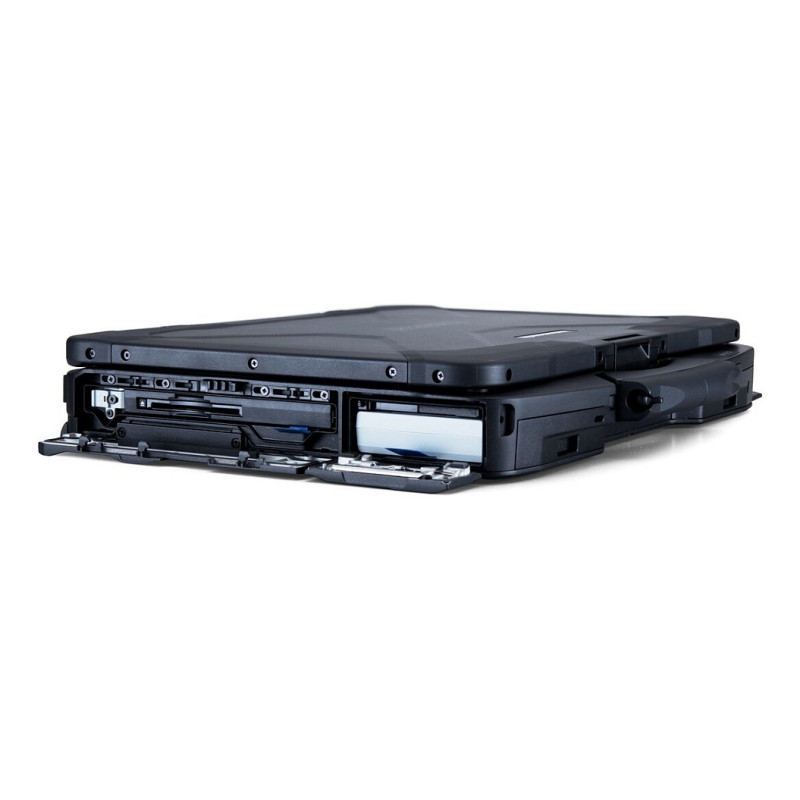

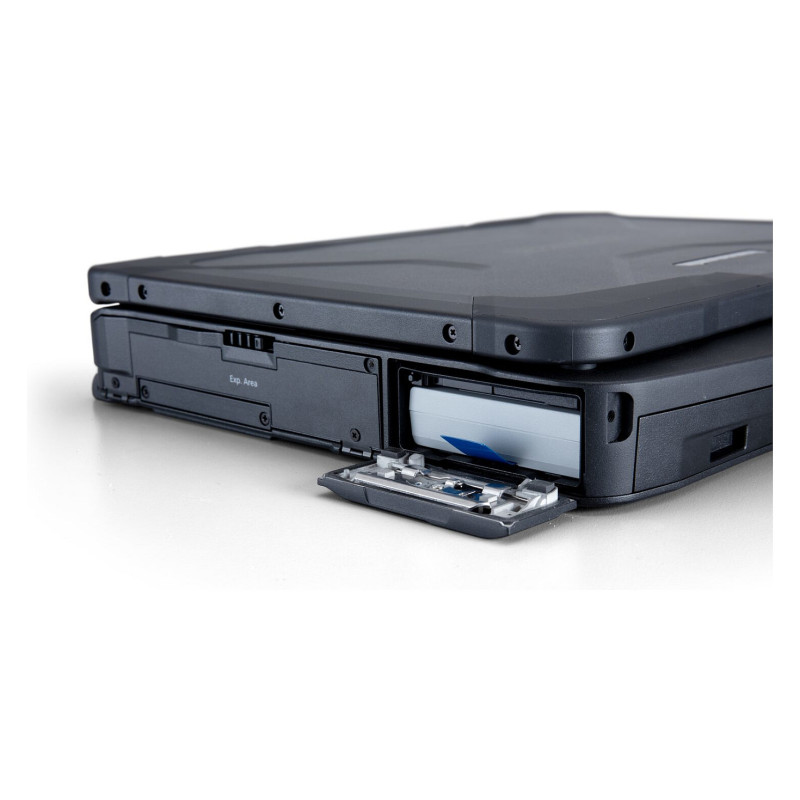

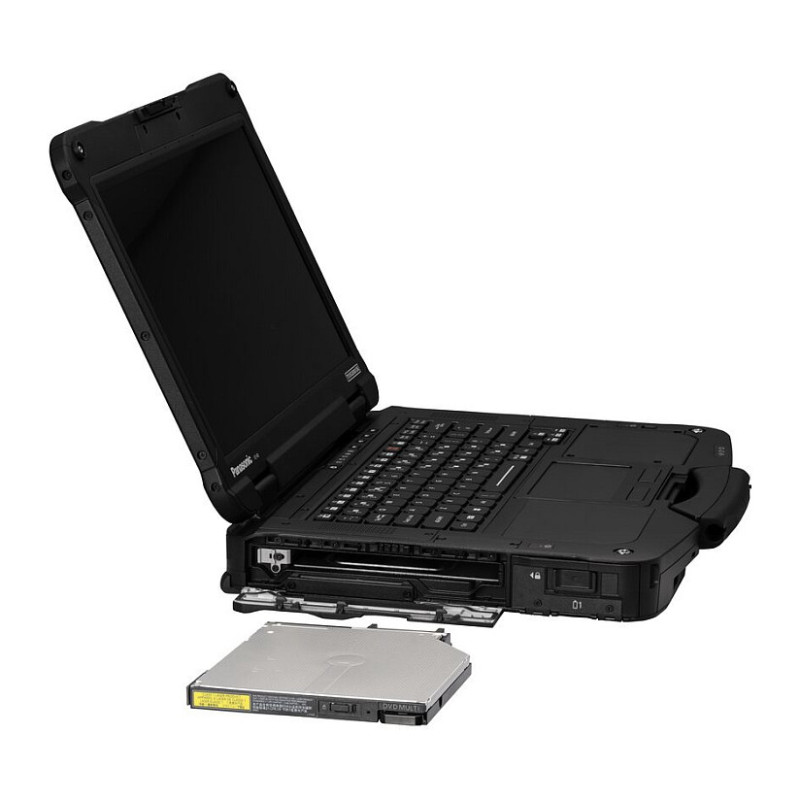

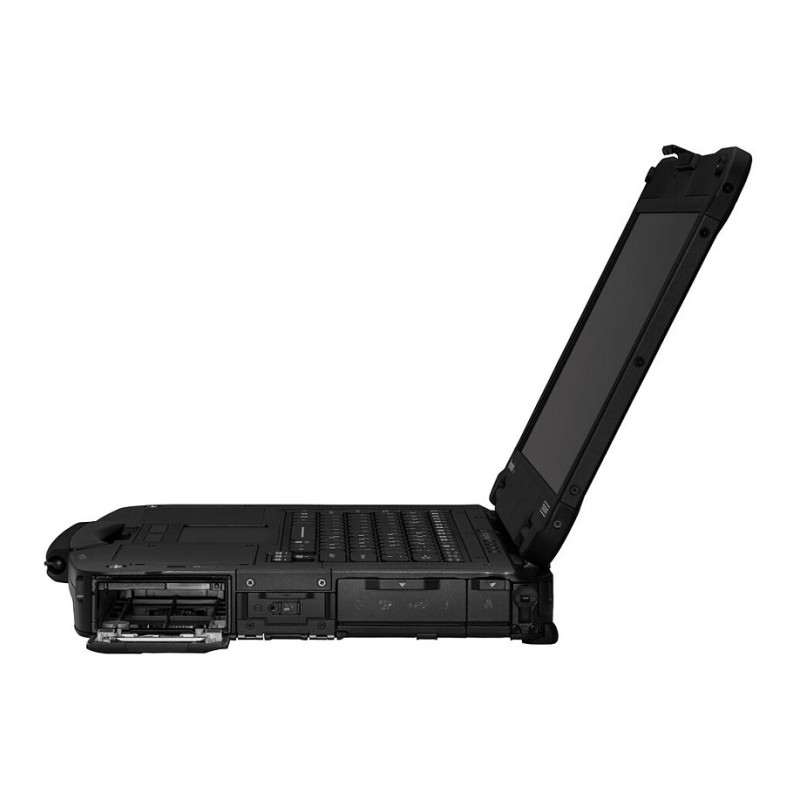

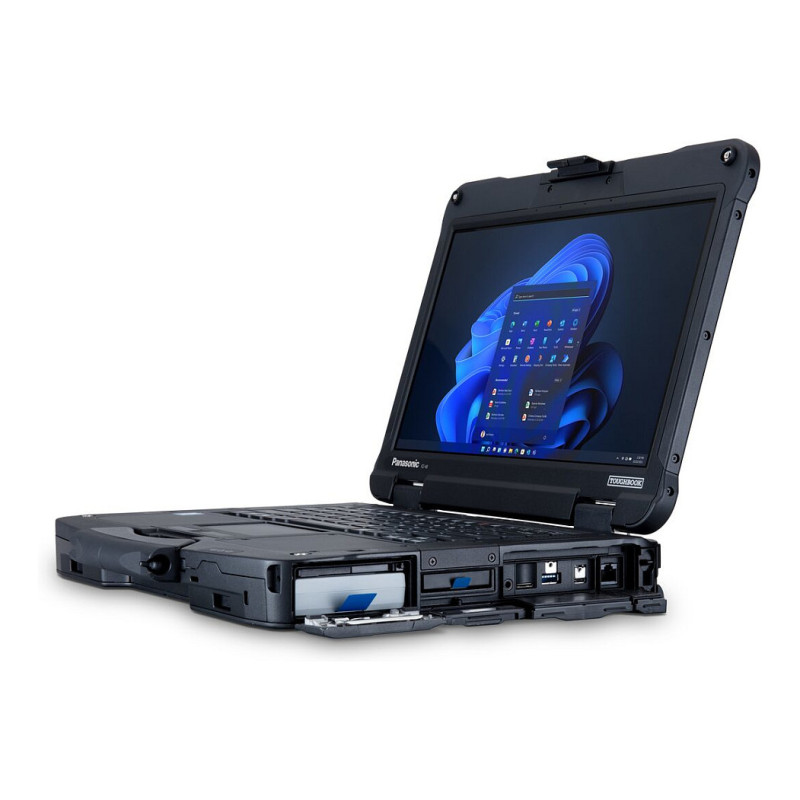

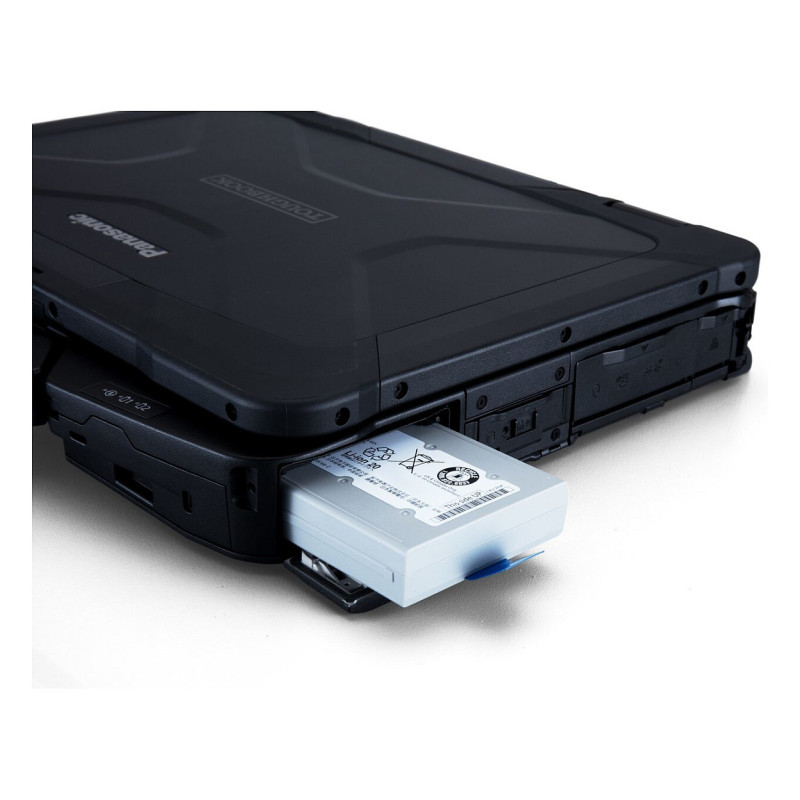

The latest TOUGHBOOK 40 is IP66**-rated for water and dust ingress and can comfortably operate in temperatures between -29°C and +63°C**, ensuring that productivity isn't affected. In addition to a replaceable battery, storage and RAM, the 40mk2 also features four additional expansion areas, providing maximum flexibility.

The increased graphics performance and AI-enabled edge processing doesn't compromise the TOUGHBOOK 40mk2's battery performance. The 40mk2 delivers up to 12 hours (MobileMark 25) from a single battery, giving today's modern worker peace of mind when using power-hungry applications.

Designed for discretion

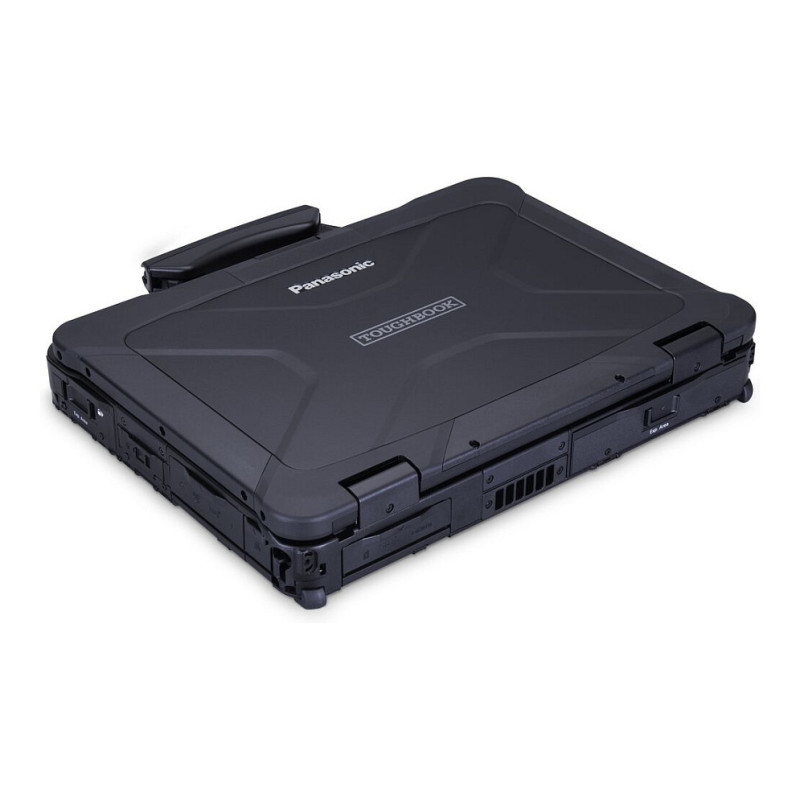

On the road or in the field, the TOUGHBOOK 40 notebook is geared up for vehicle diagnostics and maintenance as well as defence training. It also has a new all-black exterior, and a one touch Concealed Mode function, making it the perfect partner for operations that require some stealth.

Reliable tool for service technicians

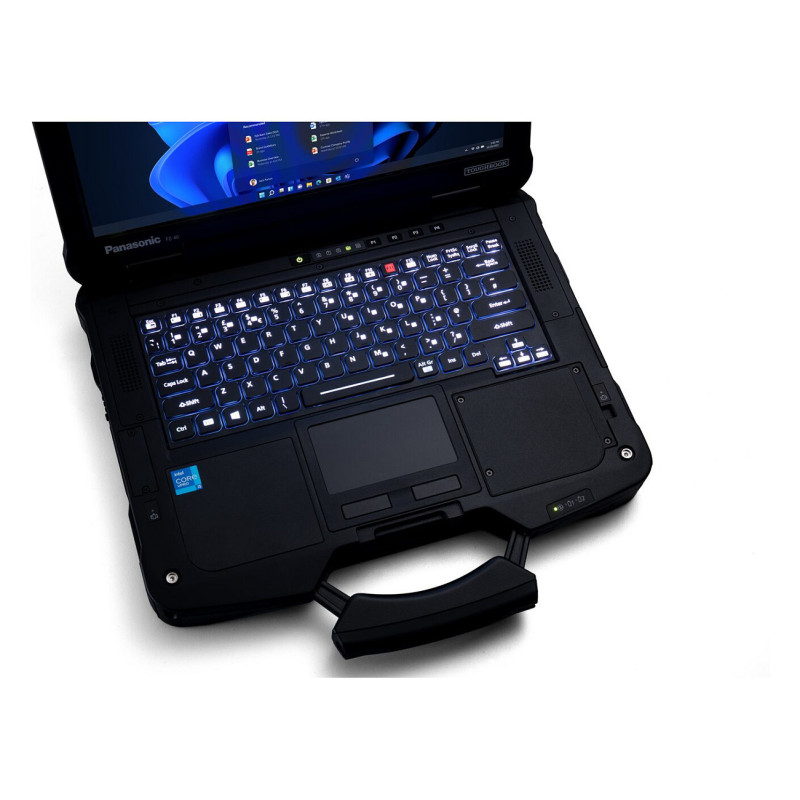

For service technicians, it's the ideal tool for mobile working outdoors: it withstands extreme temperatures, has a 14" outdoor viewable screen, and can even be used in the rain while wearing gloves. Modularly and adaptable, its adept at multiple tasks: from solar panel installation and maintenance of utilities infrastructure to maritime repairs in salt spray conditions.

No more device failures, downtime or interrupted work
Engineered from the ground up to be used on-the-go and in harsh environments, this device is tested to military standard (MILSTD810H) and is the first TOUGHBOOK notebook that contains a complete IP66 rating. It's also built to withstand drops of up to 180cm as well as knocks, vibrations and extreme temperatures for ultimate reliability in any environment.

Design

Product type: Laptop
Product colour: Black
Form factor: Clamshell
Feature: Rugged design
Feature: Stylus pen support

Display

Display diagonal: 35.6 cm (14")
Display resolution: 1920 x 1080 pixels
Feature: Touchscreen
HD type: Full HD
Panel type: IPS
Feature: Anti-reflective coating
Display brightness: 1200 cd/m²

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel® Core™ Ultra (Series 1)
Processor model: 135H
Processor cores: 14
Processor threads: 18
Performance cores: 4
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 4.6 GHz
Efficient-core Max Turbo Frequency: 3.6 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 1.7 GHz
Efficient-core base frequency: 1.2 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Processor cache: 18 MB
Processor cache type: Smart Cache
Processor base power: 28 W
Maximum turbo power: 115 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML

Memory

Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory clock speed: 5600 MHz
Memory form factor: SO-DIMM
Memory slots: 2x SO-DIMM
Maximum internal memory: 64 GB

Storage

Total storage capacity: 512 GB
Storage media: SSD
Number of SSDs installed: 1
SSD capacity: 512 GB
Feature: NVMe
Optical drive type: No
Feature: Card reader integrated
Compatible memory cards: SDXC

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card model: Intel Arc Graphics

Audio

Audio system: MaxxAudio

Network

Mobile network generation: 4G
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Mobile network connection
WLAN controller model: Intel Wi-Fi 7 BE200
Feature: Ethernet LAN
Feature: Bluetooth
Bluetooth version: 5.3

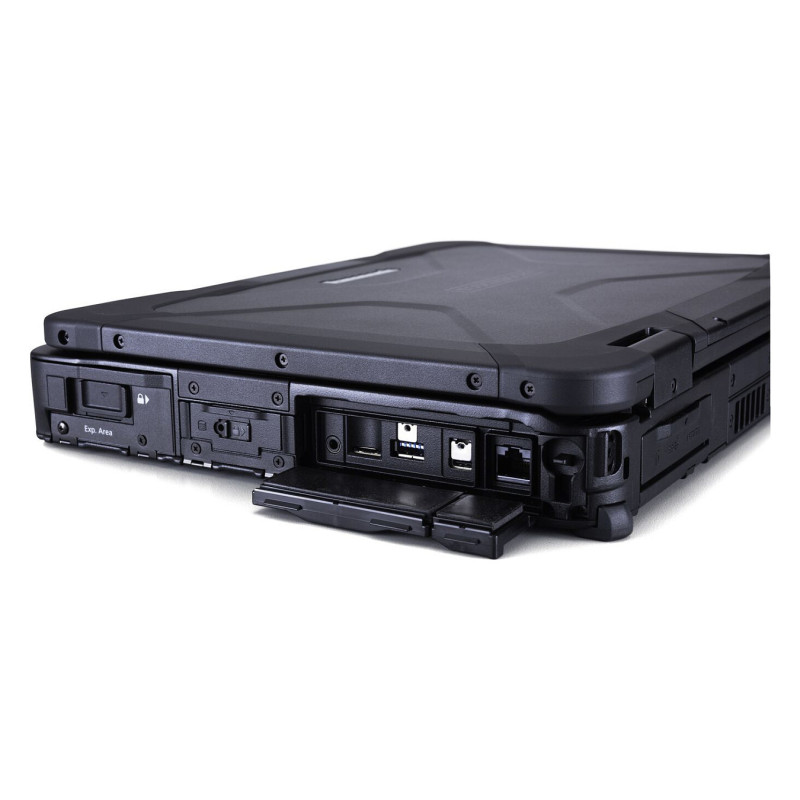

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
Thunderbolt 4 ports quantity: 1
Feature: Combo headphone/mic port

Keyboard

Pointing device: Touchpad
Keyboard layout: QWERTZ
Keyboard language: German

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 6300 mAh
Battery voltage: 10.8 V
Battery life (max): 12 h

Power

AC adapter frequency: 50/60 Hz
AC adapter input voltage: 100-240 V
AC adapter output current: 7.05 A
AC adapter output voltage: 15.6 V
Feature: DC-in jack

Security

Feature: Cable lock slot
Feature: Windows Hello
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Feature: Password protection

Operational conditions

Operating temperature (T-T): -29 - 63 °C
Drop proof: 180 cm

Weight & dimensions

Width: 354 mm
Depth: 301 mm
Height: 54.4 mm
Weight: 3.35 kg

Packaging content

Feature: AC adapter included
