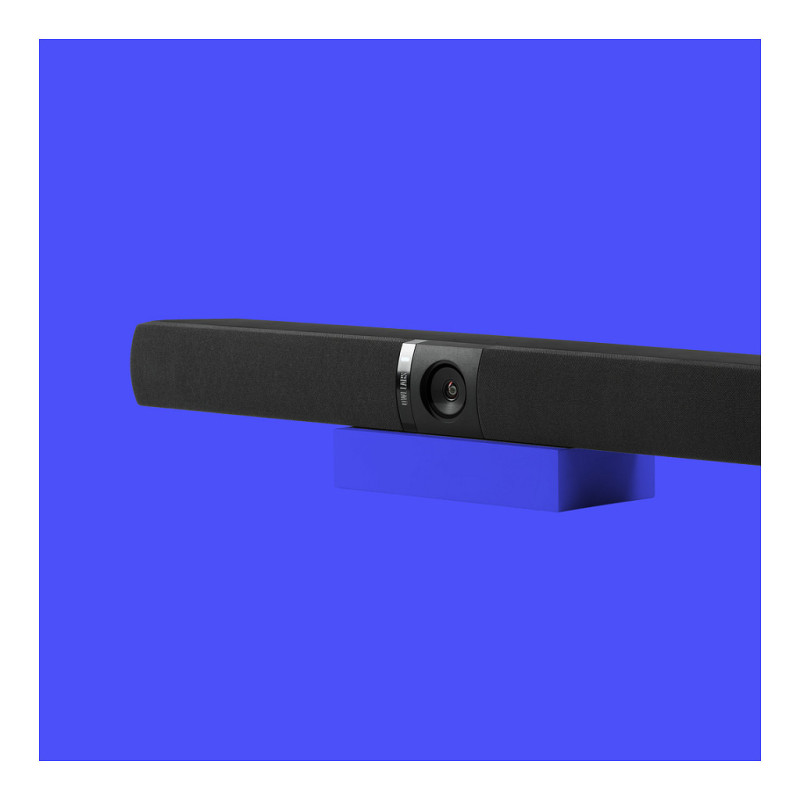

Owl Labs Owl Bar - Charcoal video conferencing system

Owl Labs Owl Bar Video Conferencing Device — 4K Video Conferencing Bar with Active Speaker Focus (Add a Meeting Owl 3 or Pro for 360-Degree Coverage and Automatic Camera Switching). Product type: Video collaboration bar. Sensor type: CMOS. HD type: 4K Ultra HD, Supported video modes: 360p, 1080p, 1440p, 2160p, Maximum frame rate: 30 fps. Ethernet LAN, Wi-Fi. Product colour: Charcoal

Our intelligent 114° 4K front-of-room camera, mic, and speaker device. Featuring a 4K, 30MP camera lens, 4 omnidirectional microphones, and an integrated speaker. Pairs with the Meeting Owl 3 or Pro (sold separately) to automatically focus on whoever is speaking and switch between cameras to always share the best perspective of the room for remote participants.

Front and center room coverage with intelligent camera-switching and automatic speaker focus to capture every angle
Clear video and audio with 4K 30MP camera, 4 omnidrectional mics, and high-fidelity speaker
Pairs seamlessly with other Owl Labs solutions, including the Meeting Owl, the Whiteboard Owl and the Expansion Mic, to foster active collaboration and increased participation

Performance

Number of cameras: 1
Product colour: Charcoal
Product type: Video collaboration bar

Video

HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Supported video modes: 360p, 1080p, 1440p, 2160p
Supported graphics resolutions: 640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
Maximum frame rate: 30 fps
Video formats supported: MJPG, NV12

Audio

Feature: Built-in speaker(s)
Number of speakers: 1
Output level: 79/1 dB
RMS rated power: 5 W
Microphone pick-up range: 2.5 m

Ports & interfaces

HDMI ports quantity: 1
USB connector type: USB Type-C

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Security algorithms: WPA2, WPA3

Camera

Megapixel (approx.): 30 MP
Camera type: Single camera
Effective sensor resolution: 48 MP
Sensor type: CMOS
Focal length range: 500 - 5000 mm
Horizontal field of view: 114°
Vertical field of view: 73°

Microphone

Microphone sensitivity: 69 dB
Microphone frequency: 100 - 10000 Hz
Microphone direction type: Omnidirectional
Number of microphones: 4

Logistics data

Country of origin: Vietnam
Harmonized System (HS) code: 8525.5000.00

Computer system

Processor family: Snapdragon
Processor model: QCS8250
Windows operating systems supported: Yes
Mac operating systems supported: Yes
Other operating systems supported: ChromeOS, Linux

Power

Power source type: DC
DC output voltage: 19 V

Certificates

Feature: Certified for Microsoft Teams

Weight & dimensions

Width: 97 mm
Depth: 769 mm
Height: 76 mm
Weight: 1.88 kg

Packaging data

Package width: 149 mm
Package depth: 820 mm
Package height: 162 mm
Package weight: 5 kg

Packaging content

Cables included: AC, USB Type-C
Feature: Wall mounting kit
Feature: Warranty card
Feature: Quick start guide
