Newland WD3

Newland WD3. Type: Wearable bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired & Wireless, Standard interfaces: Bluetooth, USB, Wireless range: 30 m. Product colour: Black, International Protection (IP) code: IP65, Protection features: Drop proof, Electrostatic Discharge (ESD) protection. Power source type: Battery, Battery type: Built-in battery, Battery voltage: 5 V. Weight: 53 g, Width: 110.8 mm, Depth: 62.3 mm

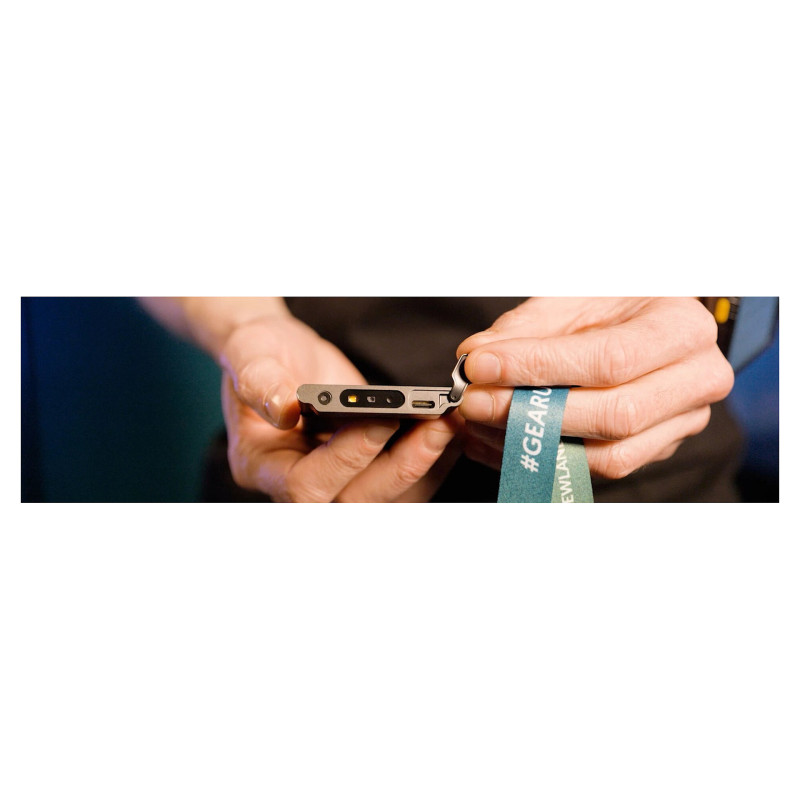

The WD3 is a feather-light badge scanner that packs high-performance in a compact yet sturdy design. You can use the scanner as a stand-alone device or wear it on a lanyard as a badge.

Gearup with the WD3
The lightweight WD3 Badge Scanner ensures reduced weariness and uninterrupted workflow to make your everyday tasks easier to perform.

Outstanding performance
Equipped with Newland's latest megapixel 2D technology, the WD3 can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on the screen.

Batch collection
The WD3 can be set to collect barcodes and store them in the memory to be uploaded to a host via a Bluetooth or cable connection. So, if you're delivering bulk items to a single delivery point or taking the time to create a little inventory, the WD3 can work without the need for live host interaction.

Precision scanning
Acuscan can be set on the WD3, so the red laser cross aimer only decodes the exact barcode you want it to. Even on a cluttered picklist or when many smaller items are stored close to each other, the user can be sure their picking out the correct item all the time.

Compact and light-weight design
The WD3 is extremely thin and lightweight. So not only does it feel comfortable to hold, but if it is attached to the lanyard or retractable belt clip supplied, the weight and bulk are not noticeable.

High protection and industrial structure
The WD3 is built into an IP65-sealed and drop resistant (1.2m) housing with no moving parts that fortify itself inside and out. It can be used in all weather and cope with bumps, knocks and drops.

Nwear DNA
The WD3, as part of the Nwear family of devices, can easily connect to the Newland family of Android devices via the easy pairing application. Third-party devices running Android can also be connected easily with the scan of a QR code via the generic EasyConnect APK.

Scanning

Type: Wearable bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
2D (matrix & stacked) barcodes supported: Aztec Code, Data Matrix, Grid Matrix Code, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Optical sensor resolution (W x H): 1280 x 800 pixels
Tilt reading angle: -55 - 55°
Pitch reading angle: -55 - 55°
Yaw reading angle: 0 - 360°

Ports & interfaces

Connectivity technology: Wired & Wireless
Standard interfaces: Bluetooth, USB
Wireless range: 30 m
Feature: Bluetooth Low Energy (BLE)

Performance

International Protection (IP) code: IP65
Protection features: Drop proof, Electrostatic Discharge (ESD) protection
LED indicators: Yes
Feature: Buzzer
Print contrast: 25%
Product colour: Black
Certification: CE RED, FCC IF, SRRC, IEC 62471

Power

Power source type: Battery
Battery type: Built-in battery
Battery voltage: 5 V
Battery life: 8 h
Charging time: 2 h
Input voltage: 5 V

Weight & dimensions

Width: 110.8 mm
Depth: 62.3 mm
Height: 10.6 mm
Weight: 53 g

Packaging data

Cables included: USB Type-C

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 300 mAh

Technical details

Compliance certificates: RoHS
