Newland HR33 Marlin

Newland HR33 Marlin. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 100 m. Product colour: Black, International Protection (IP) code: IP52, Print contrast: 15%. Power source type: Battery, Battery type: Built-in battery, Battery life: 15 h. Weight: 210 g, Width: 117.5 mm, Depth: 87.5 mm

The legacy continues with the latest HR33 Marlin Bluetooth, which offers effortless barcode capture thanks to Newland EMEA decoding technology. Cutting-edge scanning and decoding are showcased in a design that represents premium quality to become Newland's best wireless handheld 2D barcode reader so far. The HR33 Marlin Bluetooth, with its easily replaceable battery, is the ideal choice for uninterrupted barcode scanning.


Easily replaceable battery

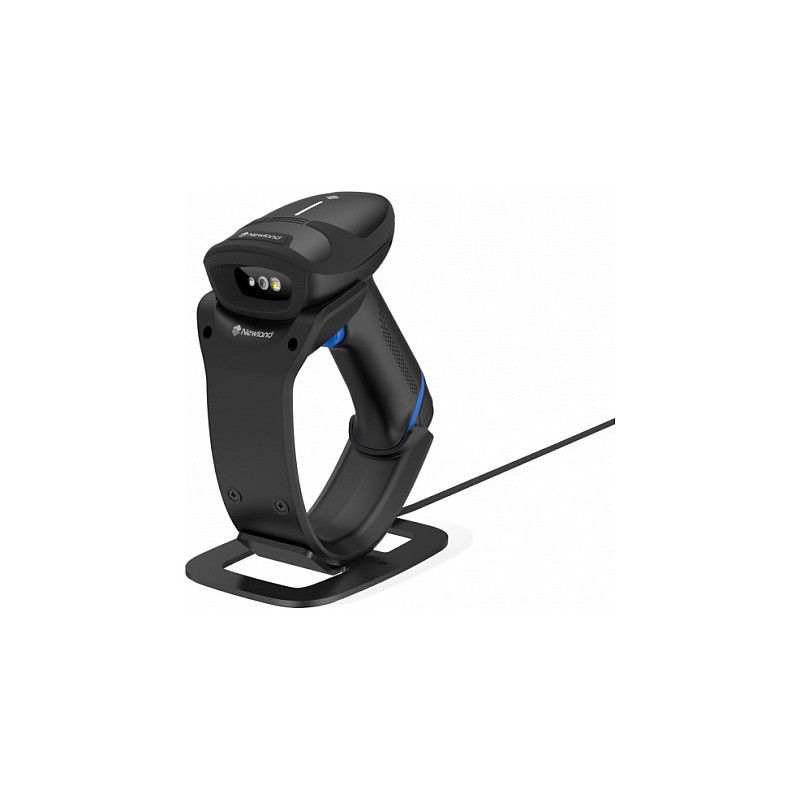

The HR33 Marlin Bluetooth provides more than 12 hours of continuous use on a single charge. If the battery runs out, the compartment features a latch-release opening design to replace it easily without interrupting your tasks. Additionally, the low battery indicator comes in two different colors, providing a quick visual cue for when the battery needs to be changed. The new magnetic contact on the stand allows for easy connection and high reliability.

High Connectivity

The HR33 Marlin Bluetooth scanner features 5.0 Bluetooth connectivity and can scan items within a 100m range in open space. Whether you use the communication and charging stand directly with a device's Bluetooth or via a dongle, the HR33 Marlin BT provides a reliable wireless connection.

High Performance

The HR33 Marlin Corded has a laser aimer for accurate barcode scanning and a megapixel sensor to capture various types of barcodes, even if they are damaged or distorted. This makes it ideal for high-density workloads.

Personalized Configuration

The HR33 Marlin is the first Bluetooth handheld in the portfolio to include advanced Scripting for programming intricate commands. Easyset is still available to those familiar with the program, but adding Scripting allows even finer detail, making the HR33 Marlin series the best in class.

Be confident with Newland

The confidence in the new HR33 BT Marlin's IP52 and 1.5m drop specification means becoming the first to receive a 5-year warranty from Newland EMEA. Select the HR33 BT Marlin with confidence that Newland has created a scanner that's up for the job no matter the environment.

Scan & send or collect & send

The HR33 BT Marlin has configurable modes that allow the user to select a real-time scan and send via a wireless connection or a choice of two types of offline storage and batch sending of the data. The scanner's memory allows for thousands of codes to be stored if needed.

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
2D (matrix & stacked) barcodes supported: Aztec Code, Code 1, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, Chinese Sensible Code, GM Code
OCR types supported: China Travel Permit OCR, Chinese ID Card, Passport OCR
Feature: Laser guide
Optical sensor resolution (W x H): 1280 x 800 pixels
Horizontal field of view: 48°
Vertical field of view: 30°
Tilt reading angle: 0 - 360°
Pitch reading angle: 0 - 60°

Ports & interfaces

Connectivity technology: Wireless
Standard interfaces: Bluetooth
USB 2.0 ports quantity: 1
Wireless range: 100 m
Bluetooth version: 5.0

Performance

International Protection (IP) code: IP52
LED indicators: Yes
Feature: Buzzer
Print contrast: 15%
Product colour: Black
Feature: Vibration function
Certification: IEC62471, IEC60825

Power

Power source type: Battery
Battery type: Built-in battery
Battery life: 15 h
Charging time: 6 h
Input voltage: 5 V

Weight & dimensions

Width: 117.5 mm
Depth: 87.5 mm
Height: 144 mm
Weight: 210 g
Presentation base dimensions (WxDxH): 140 x 144.5 x 90 mm
Presentation base weight: 340 g

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Drop resistance: 1.5 m

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 2600 mAh

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
