Newland FM430 Barracuda

Newland FM430 Barracuda. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: USB, Cable length: 2 m. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), International Protection (IP) code: IP54. Power source type: USB, Input voltage: 5 V, Input frequency: 50 - 60 Hz. Weight: 75 g, Width: 41.5 mm, Depth: 49.5 mm

The new FM430 Barracuda is Newland's most aggressive and efficient fixed mount scanner to date, making it a strong all-round solution. It's equipped with a megapixel camera that scans virtually any 1D and 2D barcode with impressive speed and ease.

It allows it to pick up on barcodes quickly, making it easy to use, even for inexperienced users
On top of that, the FM430 Barracuda's programming, IR sensor and light sensor help keep users moving, even in low light conditions. The combination of these features is what makes the device really knock the socks off similar scanners in the industry. It allows it to pick up on barcodes quickly, making it easy to use, even for inexperienced users.

Megapixel camera.
The FM430 Barracuda is a barcode scanning powerhouse. No matter what type of barcode is presented, the megapixel camera allows users to scan 1D and 2D barcodes, including very small ones, with impressive speed and ease.

Snappy, also in less than perfect conditions.
A combination of the IR sensor and the light sensor helps to keep workers moving, even in low light conditions. Its strong, white light ensures barcodes are always well lit.

Handsfree or manual scanning.
Companies looking for automatic scanning to relieve manual labor can set up the FM430 Barracuda for handsfree scanning. Alternatively, a manual trigger button can be used if preferred.

Intelligent programming.
The sensors of the FM430 Barracuda automatically adjust the brightness of supplementary lighting based on the light that reflects off the barcode. This also makes it an optimal solution for scanning from mobile phone screens. Depending on the application, the scanner can be set to optimally read from close and long distance.

Reliable outdoor use.
With an IP rating of 54, this fixed mount scanner can be placed in a housing and used outdoors without worrying about dust or moisture.

Bright laser aimer (optional).
The FM430 Barracuda is available with a red cross laser that makes scanning easy and intuitive, even for the most inexperienced users.

Application scenarios.

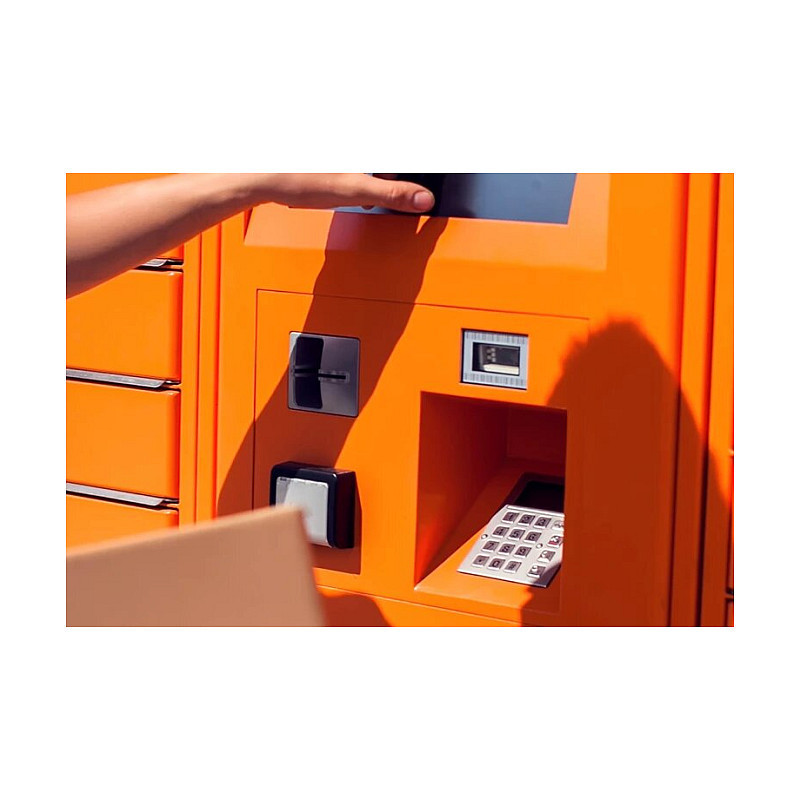

Self-service kiosks used in e-commerce, express delivery services, access control, loyalty, mobile payment, events ticket redemption, gaming cash outs, postal services, transport boarding passes, parking ticket machines, production line.

2D Mega Pixel Fixed Mounted Reader with 2 meter USB extension cable. Green LED Aimer, white light & IR sensor.

Scanning

Type: Fixed bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, ITF-14, ITF-6, Industrial 2 of 5, MSI, Matrix 2 of 5, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported: Aztec Code, Code 1, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Optical sensor resolution (W x H): 1280 x 800 pixels
Read rate (max): 60 reads/s
Tilt reading angle: -55 - 55°
Pitch reading angle: -55 - 55°
Yaw reading angle: 0 - 360°

Ports & interfaces

Connectivity technology: Wired
Standard interfaces: USB
Cable length: 2 m

Performance

Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
International Protection (IP) code: IP54
Protection features: Drop proof, Electrostatic Discharge (ESD) protection
Feature: Buzzer
Print contrast: 25%
Feature: Built-in processor
Processor frequency: 1000 MHz
Product colour: Black
Certification: FCC Part15 Class B, CE EMC Class B, IEC60825, IEC62471, KC

Power

Power source type: USB
Input voltage: 5 V
Input frequency: 50 - 60 Hz
AC adapter output voltage: 100 - 240 V
Power consumption: 276.8 mA

Weight & dimensions

Width: 41.5 mm
Depth: 49.5 mm
Height: 24.3 mm
Weight: 75 g

Packaging data

Cables included: USB

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%

Technical details

Compliance certificates: RoHS
