Logitech Tap IP video conferencing system

Logitech Tap IP. Product type: Video conferencing service management system. Ethernet LAN, Wi-Fi. Bluetooth. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels. Product colour: White
Logitech TAP IP
Make video meetings simple to join with a network-connected touch controller.
DEPLOY ROOM SOLUTIONS WITH EASE
Transform collaboration spaces with Logitech Tap IP and leading video conferencing room solutions. Deliver one-touch join, easy content-sharing, and a seamless meeting experience across all rooms.
CLEAN AND CONVENIENT SETUP
Just the Right Presence
With a spacious 10.1" display, low profile, and motion sensor for always-on readiness, Tap IP has a sleek and unobtrusive presence in the room.

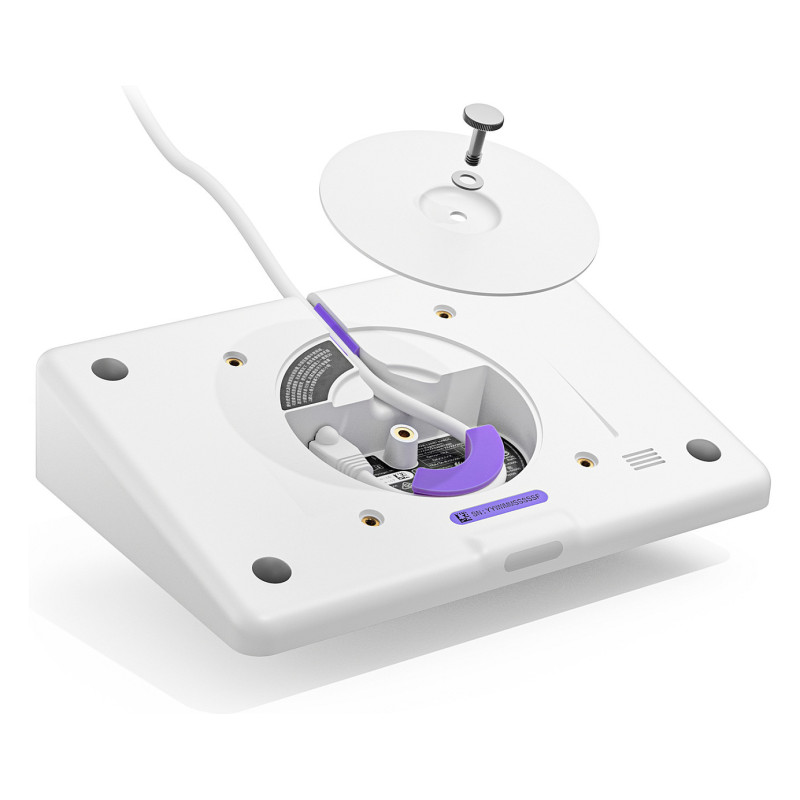

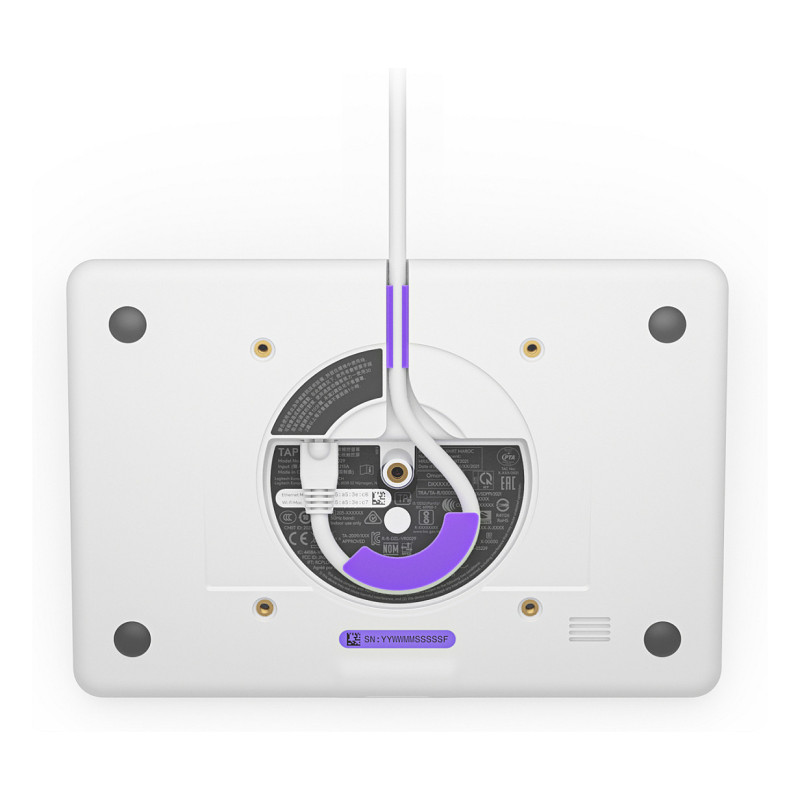

Simple and Secure Cabling
Streamline setup with a single cable that can be routed through the back or below the device. Keep connections tight with built-in strain relief and retention mechanisms.
Multiple Mounting Options
Install Tap IP almost anywhere in the room with Table and Riser Mounts that fit standard table grommets and rotate 180° for visibility and convenience. Or save table space in small rooms with the Wall Mount.
SINGLE CABLE SIMPLICITY
With a single Power over Ethernet cable, place Tap IP conveniently near room participants for a tidy and professional install.
PAIRS WELL WITH PARTNERS
Enable easy and effective meetings for onsite and remote workers. Tap IP and the Logitech suite of room solutions integrate with leading video conferencing services for a seamless meeting experience.
SIMPLE TO MANAGE WITH LOGITECH SYNC
With Logitech Sync, you can monitor and manage Tap IP along with your other meeting room devices from one single platform.
AN ALL-IN-ONE SERVICE PLAN
Logitech Select is a comprehensive service plan that delivers reliability, continuity, and peace of mind for each room you designate. Select provides 24/7 support, a dedicated Customer Success Manager, accelerated RMA, onsite spares, and advanced Sync analytics including customizable alerts through ServiceNow integration.
UP TO FIVE YEAR WARRANTY
Purchasing an extended warranty offers security and peace of mind that comes with knowing your Logitech video collaboration room systems and devices are protected against defects for up to five years from the purchase date. Extended warranties are available for either one year or three years beyond the original Logitech manufacturer's two-year warranty.

Performance

Bluetooth: Yes
Bluetooth version: 5.0
Product colour: White
Product type: Video conferencing service management system

Audio

Built-in speaker(s): Yes
Number of speakers: 1

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100 Mbit/s
Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Networking standards: IEEE 802.3af
Security algorithms: 128-bit AES

Display

Display diagonal: 25.6 cm (10.1")
Display resolution: 1280 x 800 pixels
Display brightness: 400 cd/m²
Oleophobic coating: Yes

Features

Cable lock slot: Yes
Cable lock slot type: Kensington

Logistics data

Master (outer) case gross weight: 3.3 kg
Master (outer) case length: 358 mm
Master (outer) case width: 260 mm
Master (outer) case height: 199 mm

Computer system

VESA mounting: Yes

System requirements

Minimum system requirements: Internet Connection: Wired through PoE or wirelessCustomer-Supplied Cabling: Power over Ethernet (PoE)cable, IEEE 802.3af Type 1, Class 3 device

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -40 - 70 °C

Power

Power source type: PoE

Weight dimensions

Width: 246.2 mm
Depth: 171.3 mm
Height: 56.1 mm
Weight: 1 kg

Packaging data

Package width: 247 mm
Package depth: 346 mm
Package height: 93 mm
Package weight: 1.5 kg

Packaging content

Batteries included: No
Packaging content: Tap IP Touch Controller Documentation
