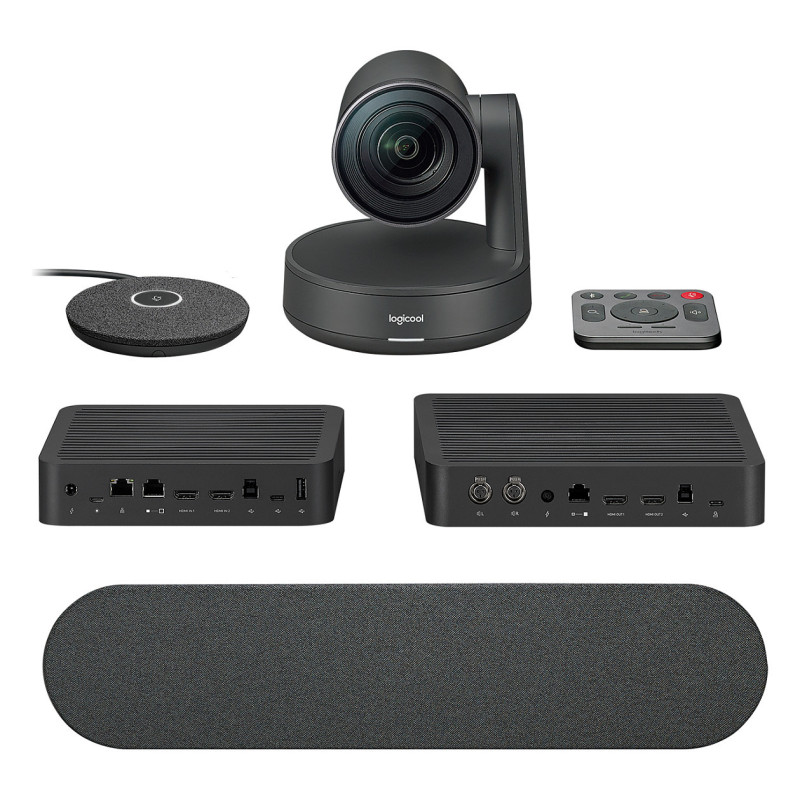

Logitech Rally video conferencing system

Logitech Rally. Product type: Group video conferencing system, Number of persons: 10 person(s). HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1080p, 1440p, 2160p, Maximum frame rate: 60 fps. Digital zoom: 15x. Ethernet LAN. Product colour: Black

The purchase of a one-year Logitech extended warranty along with the purchase of Rally adds one additional year to the original Logitech manufacturer's two-year guarantee and is intended to ensure that your Logitech hardware is free from defects in material and workmanship.

This extended guarantee helps to protect your investment, maximise its value and ensure optimal performance of your Logitech conference room hardware for a total of three years. This is right in line with the typical depreciation and replacement cycle of most conference room equipment.

Performance

Number of persons: 10 person(s)
Product colour: Black
Product type: Group video conferencing system
Pan range: -90 - 90°
Pan speed: 70 °/sec
Tilt speed: 70 °/sec
Tilt angle range: -90 - 50°
Feature: PTZ control
Feature: Tripod mounting supported

Video

HD type: 4K Ultra HD
Supported video modes: 576p, 720p, 900p, 1080p, 1440p, 2160p
Maximum frame rate: 60 fps

Audio

Frequency range: 300 - 10000 Hz
Output level: 95/100 dB
Feature: Echo cancellation
Feature: Automatic gain control
Microphone pick-up range: 4.5 m
Sample rates: 0 - 48 kHz

Ports & interfaces

HDMI ports quantity: 4
USB connector type: USB Type-A, USB Type-B, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 2
Ethernet LAN (RJ-45) ports: 3
Feature: DC-in jack
Feature: Line-in

Interface module

Interface module HDMI input ports quantity: 2
Interface module HDMI output ports quantity: 2

Network

Feature: Ethernet LAN

Camera

Feature: Zoom capability
Digital zoom: 15x
Focus adjustment: Auto
Number of camera presets: 3

Microphone

Microphone colour: Black
Microphone sensitivity: -27 dB
Microphone frequency: 90 - 16000 Hz
Microphone direction type: Omnidirectional
Feature: Microphone mute
Sound pressure level (max): 95 dB
Number of microphones: 4
Number of microphone arrays: 1

Features

Feature: Cable lock slot
Cable lock slot type: Kensington

Logistics data

Master (outer) case gross weight: 10.3 kg
Master (outer) case length: 726 mm
Master (outer) case width: 345 mm
Master (outer) case height: 235 mm
Harmonized System (HS) code: 85176990

Battery

Battery capacity: 0.675 Wh
Battery technology: Lithium
Battery capacity: 220 mAh

Computer system

Windows operating systems supported: Yes
Mac operating systems supported: Yes, MacOS
Other operating systems supported: ChromeOS

Power

Power source type: AC
Number of batteries supported: 2

Weight & dimensions

Microphone dimensions (WxHxD): 102 x 102 x 21 mm
Speaker dimensions (WxDxH): 449 x 80 x 103 mm
Camera dimensions (WxDxH): 152 x 152 x 182.5 mm

Packaging data

Package width: 275 mm
Package depth: 700 mm
Package height: 220 mm
Package weight: 8.53 kg

Packaging content

Feature: External interface module included
Cables included: AC, HDMI, LAN (RJ-45), USB Type-A to Micro USB-B, USB Type-C to USB Type-C
Power cable length: 1.5 m
Networking cable length: 5 m
HDMI cable length: 2 m
Feature: AC adapter included
Feature: Speaker included
Feature: Remote control included
Feature: Camera included
Feature: Microphone included
Feature: Batteries included
Feature: Quick start guide
