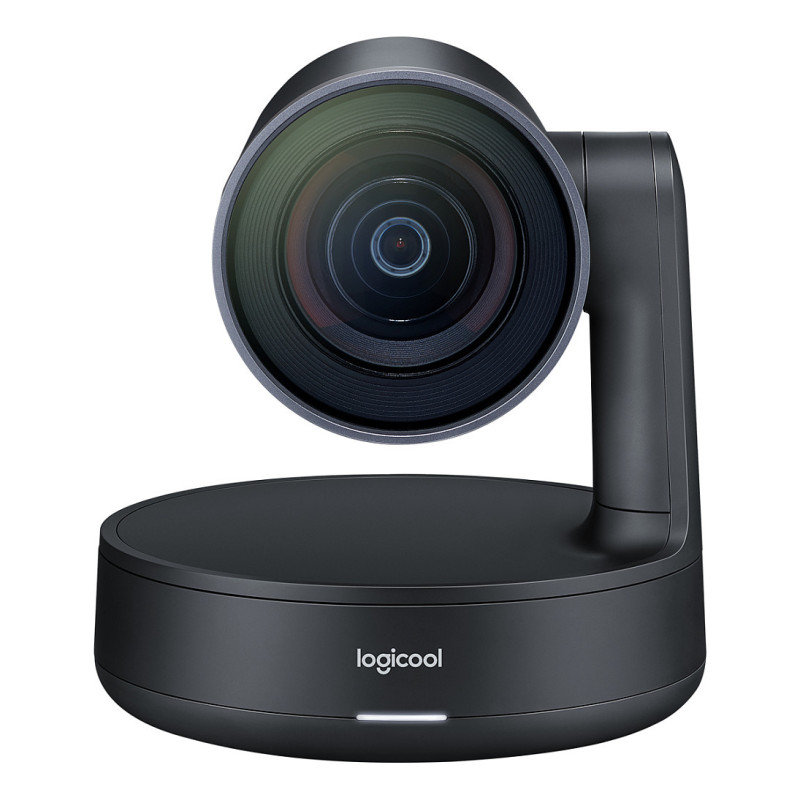

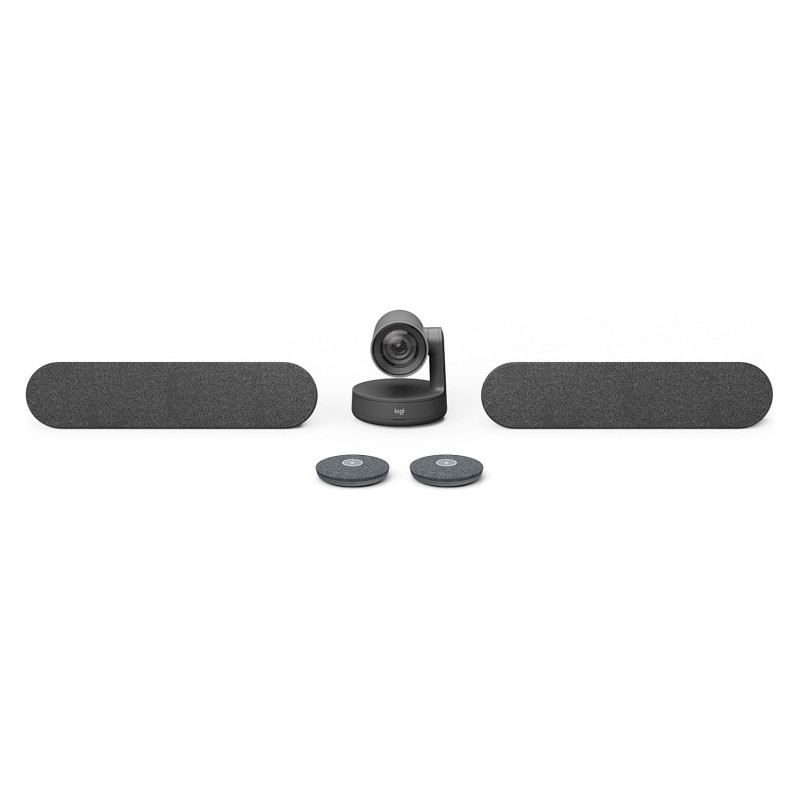

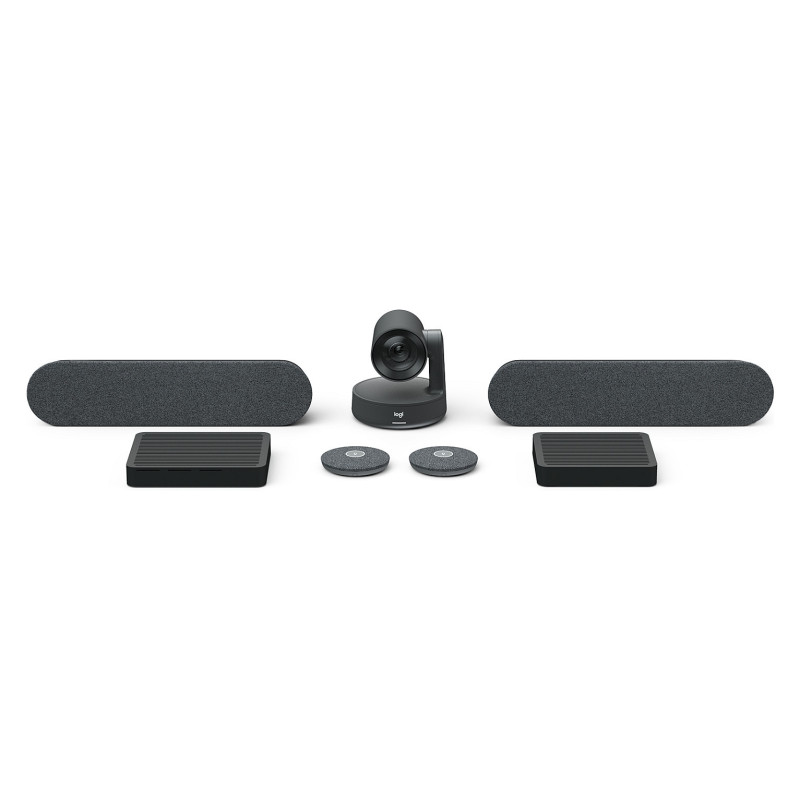

Logitech Rally video conferencing system

Logitech Rally. Product type: Group video conferencing system, Number of persons: 16 person(s). HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1080p, 1440p, 2160p, Maximum frame rate: 60 fps. Field of view (FOV) angle: 90°, Digital zoom: 15x. Ethernet LAN. Bluetooth, Product colour: Black
The purchase of a one-year Logitech extended warranty along with the purchase of Rally adds one additional year to the original Logitech manufacturer's two-year guarantee and is intended to ensure that your Logitech hardware is free from defects in material and workmanship.
This extended guarantee helps to protect your investment, maximise its value and ensure optimal performance of your Logitech conference room hardware for a total of three years. This is right in line with the typical depreciation and replacement cycle of most conference room equipment.

Performance

Number of persons: 16 person(s)
Bluetooth: Yes
Product colour: Black
Product type: Group video conferencing system
Pan range: -90 - 90°
Pan speed: 70 °/sec
Tilt speed: 70 °/sec
Tilt angle range: -90 - 50°
PTZ control: Yes
Tripod mounting supported: Yes

Video

HD type: 4K Ultra HD
Supported video modes: 576p, 720p, 900p, 1080p, 1440p, 2160p_
Maximum frame rate: 60 fps

Audio

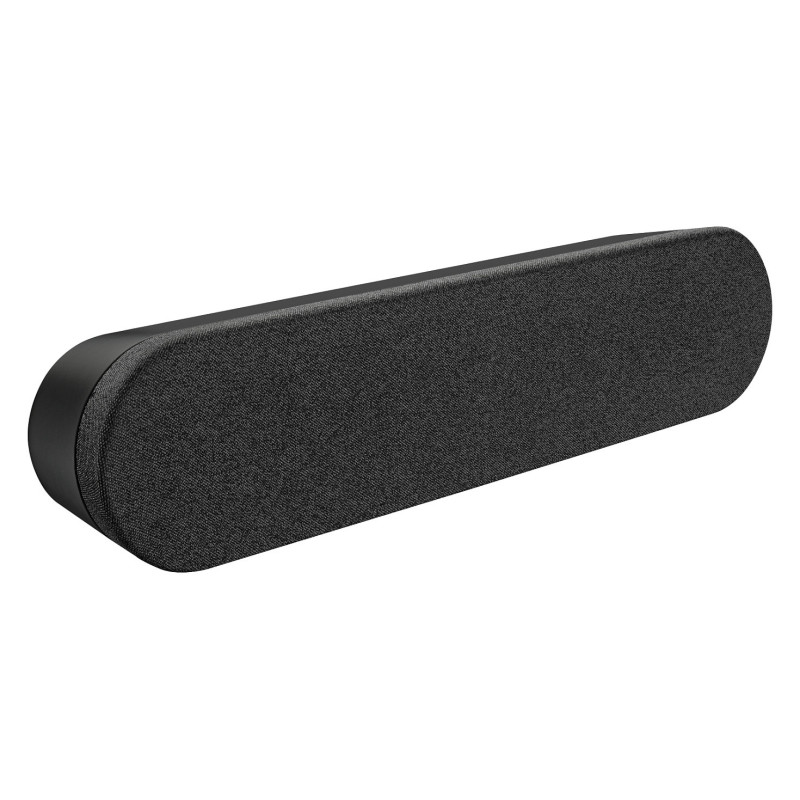

Built-in speaker(s): Yes
Frequency range: 300 - 10000 Hz
Output level: 95/100 dB
Noise reduction: Yes
Echo cancellation: Yes
Microphone pick-up range: 4.5 m
Sample rates: 0 - 48 kHz

Ports interfaces

HDMI ports quantity: 2
USB connector type: USB Type-A, USB Type-B, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 2
Ethernet LAN (RJ-45) ports: 3
DC-in jack: Yes
Line-in: Yes

Network

Ethernet LAN: Yes

Camera

Zoom capability: Yes
Digital zoom: 15x
Field of view (FOV) angle: 90°
Focus adjustment: Auto
Number of camera presets: 3

Microphone

Microphone colour: Black
Microphone sensitivity: -27 dB
Microphone frequency: 90 - 16000 Hz
Microphone direction type: Omnidirectional
Microphone mute: Yes
Sound pressure level (max): 95 dB
Number of microphones: 4
Number of microphone arrays: 2

Features

Telepresence: No
Cable lock slot: Yes
Cable lock slot type: Kensington

Logistics data

Master (outer) case gross weight: 12.3 kg
Master (outer) case length: 417 mm
Master (outer) case width: 227 mm
Master (outer) case height: 722 mm
Harmonized System (HS) code: 85176990

Battery

Battery capacity: 0.675 Wh
Battery technology: Lithium
Battery capacity: 220 mAh

Computer system

Windows operating systems supported: Yes
Mac operating systems supported: Yes, MacOS
Other operating systems supported: ChromeOS

Power

Power source type: AC
Number of batteries supported: 2

Weight dimensions

Microphone dimensions (WxHxD): 102 x 102 x 21 mm
Speaker dimensions (WxDxH): 449 x 80 x 103 mm
Camera dimensions (WxDxH): 152 x 152 x 182.5 mm

Packaging data

Package width: 210 mm
Package depth: 400 mm
Package height: 690 mm
Package weight: 11.2 kg

Packaging content

External interface module included: Yes
Cables included: AC, HDMI, LAN (RJ-45), USB Type-A to Micro USB-B, USB Type-C to USB Type-C
Power cable length: 1.5 m
Networking cable length: 5 m
HDMI cable length: 2 m
AC adapter included: Yes
Speaker included: Yes
Remote control included: Yes
Camera included: Yes
Microphone included: Yes
Batteries included: Yes
Quick start guide: Yes
