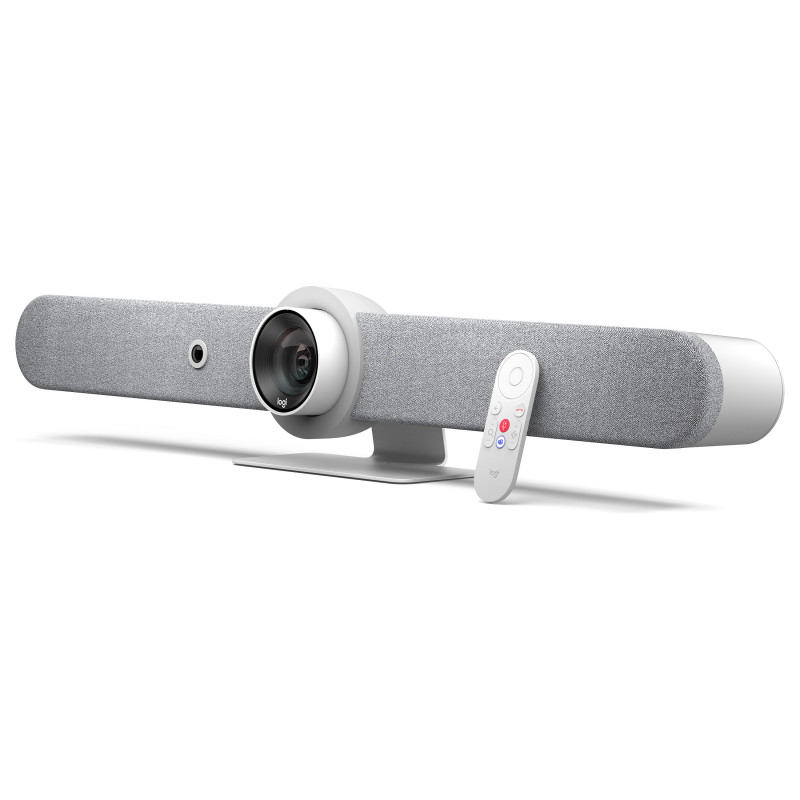

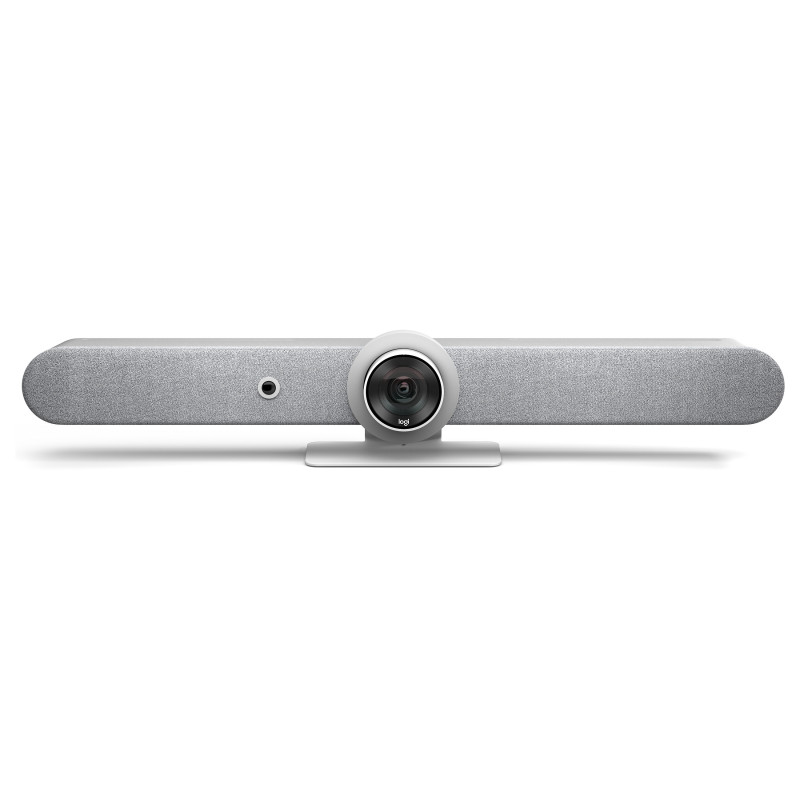

Logitech Rally Bar video conferencing system

Logitech Rally Bar. Product type: Group video conferencing system. HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1440p, 2160p, Maximum frame rate: 30 fps. Optical zoom: 5x, Digital zoom: 3x. Ethernet LAN, Wi-Fi. Product colour: White

Performance

Product colour: White
Product type: Group video conferencing system
Pan range: -25 - 25°
Tilt angle range: -15 - 15°
PTZ control: Yes

Video

HD type: 4K Ultra HD
Supported video modes: 576p, 720p, 900p, 1440p, 2160p
Maximum frame rate: 30 fps

Audio

Built-in speaker(s): Yes
Output level: 92/99 dB
Line-out impedance: 4 Ω
Output voltage Total Harmonic Distortion (THD): 2%
Audio beamforming: Yes
Noise reduction: Yes
Echo cancellation: Yes
RMS rated power: 8 W
Microphone pick-up range: 4.5 m
Sample rates: 0 - 48 kHz

Ports interfaces

HDMI ports quantity: 3
HDMI output ports quantity: 2
HDMI input ports quantity: 1
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Microphone in: Yes

Interface module

Interface module Ethernet LAN (RJ-45) ports: 1

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols: IPv4, IPv6
Security algorithms: 128-bit AES

Camera

Zoom capability: Yes
Optical zoom: 5x
Digital zoom: 3x
Horizontal field of view: 82.1°
Vertical field of view: 52.2°
Diagonal field of view: 90°
Remote control interface: Bluetooth

Microphone

Microphone sensitivity: -36 dB
Microphone frequency: 90 - 16000 Hz
Microphone direction type: Omnidirectional
Sound pressure level (max): 90 dB
Number of microphones: 6

Features

Telepresence: No

Logistics data

Master (outer) case gross weight: 9.91 kg
Master (outer) case length: 1004 mm
Master (outer) case width: 220 mm
Master (outer) case height: 231 mm
Harmonized System (HS) code: 85176990

Battery

Battery capacity: 0.675 Wh
Battery technology: Lithium
Battery capacity: 220 mAh

Computer system

Windows operating systems supported: Yes
Mac operating systems supported: MacOS

System requirements

Minimum system requirements: Internet Connection: Wired or wireless (Rally Bar No-Radio does support WiFi connectivity).USB Mode: Windows 11, Windows 10, the two most recent versions of macOSAppliance Mode: Room solution software license (not included)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 64 BTU/h

Power

Power source type: AC
AC input voltage: 100 - 240 V
Current: 4.754 A
DC input voltage: 19 V
Number of batteries supported: 1
Power plug type: Type C

Weight dimensions

Width: 910 mm
Depth: 160 mm
Height: 164 mm
Weight: 7.08 kg

Packaging data

Package width: 207 mm
Package depth: 989 mm
Package height: 218 mm
Package weight: 9.3 kg

Packaging content

Cables included: AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length: 2.5 m
HDMI cable length: 2 m
AC adapter included: Yes
Remote control included: Yes
Batteries included: Yes
Quick start guide: Yes
Packaging content: Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation
