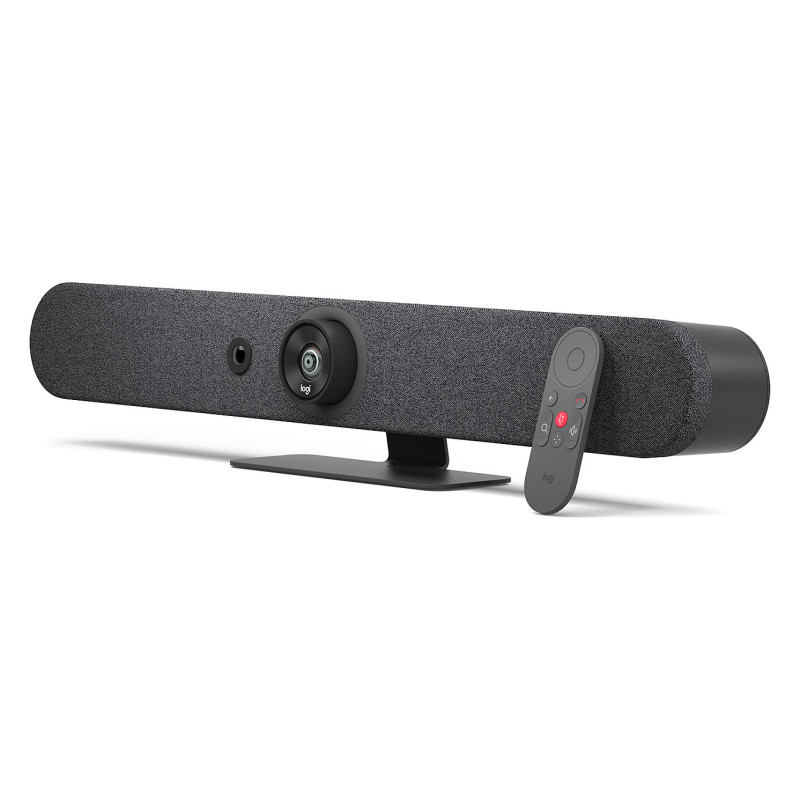

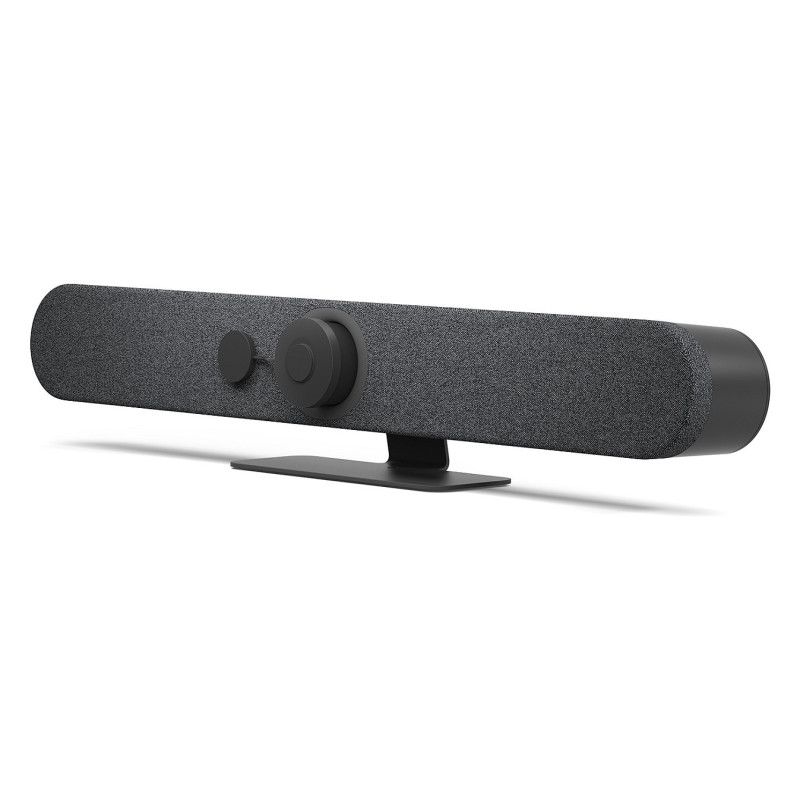

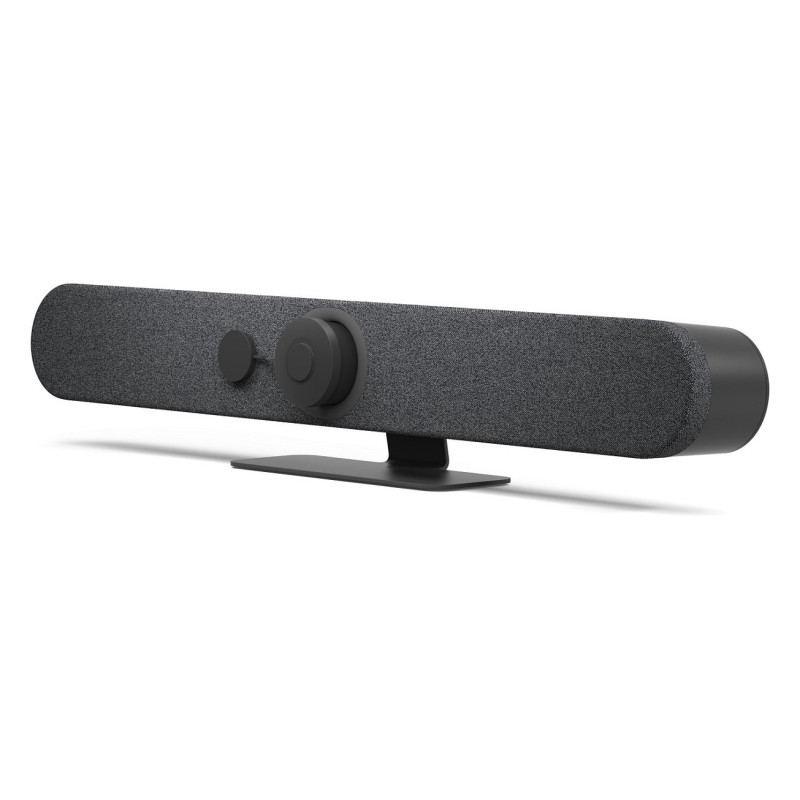

Logitech Rally Bar Mini video conferencing system

Logitech Rally Bar Mini. Product type: Group video conferencing system. HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1440p, 2160p, Maximum frame rate: 30 fps. Digital zoom: 4x. Ethernet LAN, Wi-Fi. Product colour: Graphite

Performance

Product colour: Graphite
Product type: Group video conferencing system
Pan range: -25 - 25°
Tilt angle range: -15 - 15°
Feature: PTZ control

Video

HD type: 4K Ultra HD
Supported video modes: 576p, 720p, 900p, 1440p, 2160p_
Maximum frame rate: 30 fps

Audio

Feature: Built-in speaker(s)
Output level: 92/99 dB
Line-out impedance: 4 Ω
Output voltage Total Harmonic Distortion (THD): 2%
Feature: Audio beamforming
Feature: Noise reduction
Feature: Echo cancellation
RMS rated power: 8 W
Microphone pick-up range: 4.5 m
Sample rates: 0 - 48 kHz

Ports interfaces

HDMI ports quantity: 3
HDMI output ports quantity: 2
HDMI input ports quantity: 1
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Feature: DC-in jack
Feature: Microphone in

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols: IPv4, IPv6
Security algorithms: 128-bit AES

Camera

Feature: Zoom capability
Digital zoom: 4x
Horizontal field of view: 113°
Vertical field of view: 80.7°
Diagonal field of view: 120°
Remote control interface: Bluetooth

Microphone

Microphone sensitivity: -36 dB
Microphone frequency: 90 - 16000 Hz
Microphone direction type: Omnidirectional
Sound pressure level (max): 90 dB
Number of microphones: 6

Logistics data

Master (outer) case gross weight: 4.73 kg
Master (outer) case length: 330 mm
Master (outer) case width: 300 mm
Master (outer) case height: 160 mm
Harmonized System (HS) code: 85176990

Battery

Battery capacity: 0.675 Wh
Battery technology: Lithium
Battery capacity: 220 mAh

Computer system

Windows operating systems supported: Yes
Mac operating systems supported: MacOS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 64 BTU/h

Power

Power source type: AC
AC input voltage: 100 - 240 V
Current: 4.754 A
DC input voltage: 19 V
Number of batteries supported: 1
Power plug type: Type G

Weight dimensions

Width: 719 mm
Depth: 101 mm
Height: 91.4 mm
Weight: 4.03 kg

Packaging data

Package width: 191 mm
Package depth: 789 mm
Package height: 199 mm
Package weight: 5.8 kg

Packaging content

Cables included: AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length: 2.5 m
HDMI cable length: 2 m
Feature: AC adapter included
Feature: Remote control included
Feature: Batteries included
Feature: Quick start guide
Packaging content: Rally Bar Mini Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main lens and AI Viewfinder User documentation
