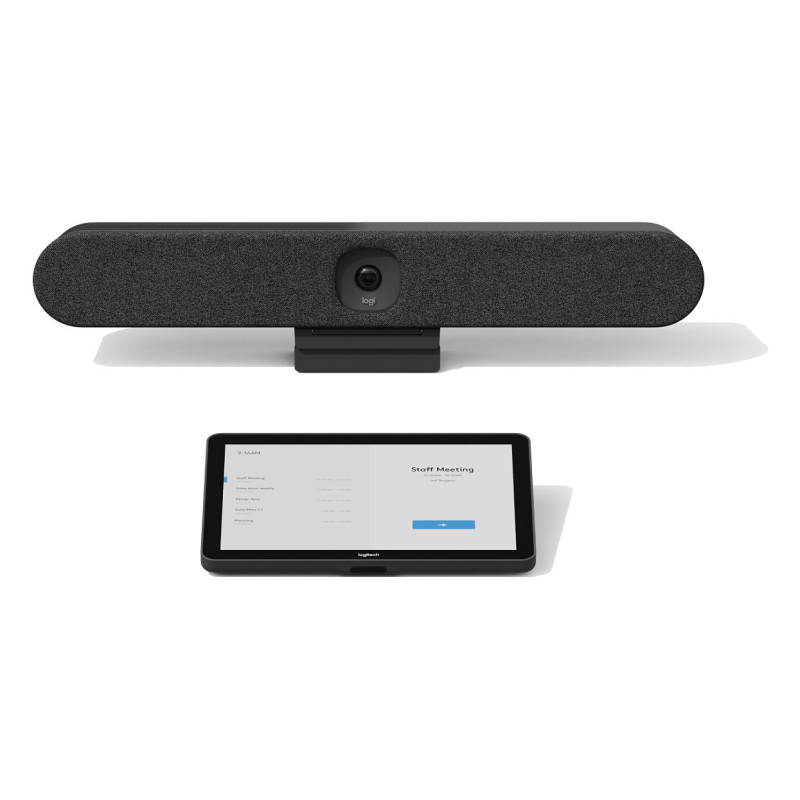

Logitech Rally Bar Huddle + Tap IP Bundle video conferencing system

Logitech Rally Bar Huddle + Tap IP Bundle. Product type: Group video conferencing system. HD type: 4K Ultra HD. Digital zoom: 4x. Ethernet LAN, Wi-Fi. Bluetooth. Display: IPS, Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels. Product colour: Graphite

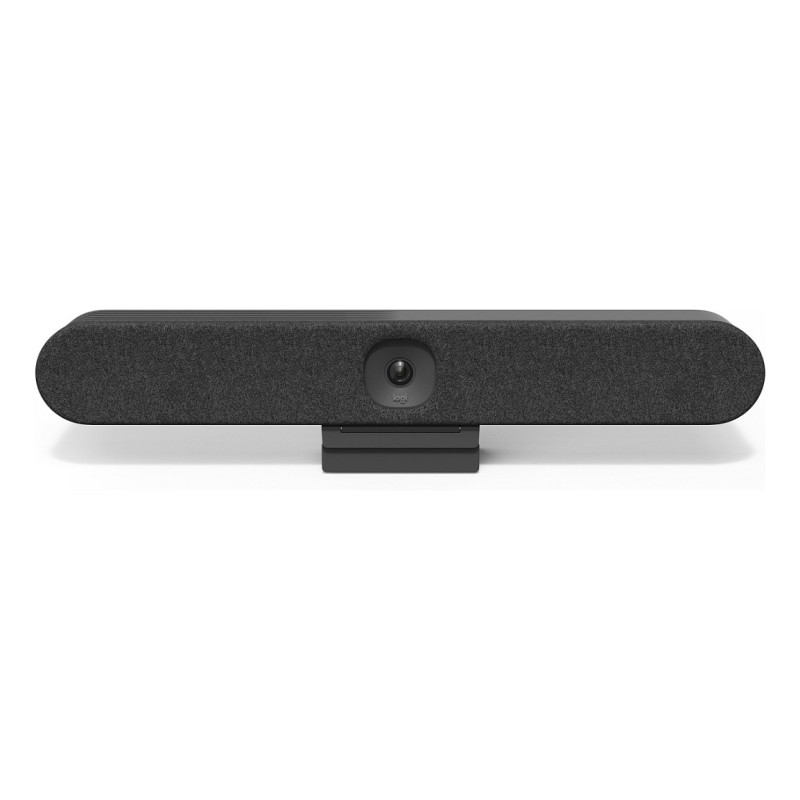

Rally Bar Huddle all-in-one video bar for huddle and small rooms.
Logitech Rally Bar Huddle is an all-in-one video conferencing bar for huddle and small meeting rooms. Designed to deliver equitable video meetings with ease, Rally Bar Huddle is quick to set up, simple to manage, and easy to integrate with Tap IP through CollabOS.
With Rally Bar Huddle, ensure everyone can be seen and heard clearly during hybrid meetings. Leveraging AI video intelligence, advanced sound pickup, noise suppression, and other ongoing software improvements, Rally Bar Huddle provides a clear and natural meeting experience for remote workers.
Plus, Rally Bar Huddle works with whatever platform you use to connect hybrid teams, ensuring a seamless experience from the home to the office, and everywhere in between. Plug and play Rally Bar Huddle with virtually any PC or Mac, or run supported video conferencing applications on the device in appliance mode without a computer.

Performance

Bluetooth: Yes
Product colour: Graphite
Camera cable length (max): 2.2 m
Product type: Group video conferencing system
Pan range: -48 - 48°
Tilt angle range: -32 - 32°
PTZ control: Yes

Video

HD type: 4K Ultra HD

Audio

Built-in speaker(s): Yes
Line-out impedance: 4 Ω
Output voltage Total Harmonic Distortion (THD): 2%
Audio beamforming: Yes
Echo cancellation: Yes
Microphone pick-up range: 7 m
Sample rates: 0 - 48 kHz
Driver diameter: 5.5 cm
Speaker power: 8 W

Ports interfaces

HDMI output ports quantity: 1
HDMI input ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols: IPv4, IPv6 Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Security algorithms: 128-bit AES

Camera

Camera type: Single camera
Zoom capability: Yes
Digital zoom: 4x
Horizontal field of view: 113°
Vertical field of view: 80°
Diagonal field of view: 120°
Privacy camera: Yes
Privacy type: Privacy shutter

Display

Display: IPS
Display diagonal: 25.6 cm (10.1")
Display resolution: 1280 x 800 pixels
Contrast ratio (typical): 1000:1
Touchscreen: Yes
Touchscreen type: Capacitive
Viewing angle, horizontal: 85°
Viewing angle, vertical: 85°
Display brightness: 400 cd/m²
Oleophobic coating: Yes

Microphone

Microphone sensitivity: -36 dB
Microphone frequency: 90 - 16000 Hz
Sound pressure level (max): 83 dB
Number of microphones: 6

Features

Telepresence: No

Computer system

Windows operating systems supported: Yes
Mac operating systems supported: MacOS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -25 - 70 °C

Power

Power source type: AC
AC input voltage: 100-240 V
Current: 2.1 A
DC output voltage: 19 V

Weight dimensions

Interface module dimensions (W x D x H): 246.2 x 171.3 x 56.1 mm
Interface module weight: 1 kg
Width: 549.6 mm
Depth: 76 mm
Height: 78.9 mm
Weight: 1.8 kg

Packaging data

Package width: 218.6 mm
Package depth: 633.6 mm
Package height: 262.3 mm
Package weight: 5.89 kg

Packaging content

Cables included: AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length: 2.5 m
HDMI cable length: 2 m
AC adapter included: Yes
Batteries included: No
Packaging content: Rally Bar Huddle Multi-Mount Power supply AC power cord HDMI cable USB cable
