Logitech 991-000480 video conferencing system

Logitech 991-000480. Product type: Group video conferencing system, Number of persons: 6 person(s). HD type: 4K Ultra HD. Digital zoom: 4x. Ethernet LAN, Wi-Fi. Bluetooth. Display: IPS, Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels. Product colour: Graphite

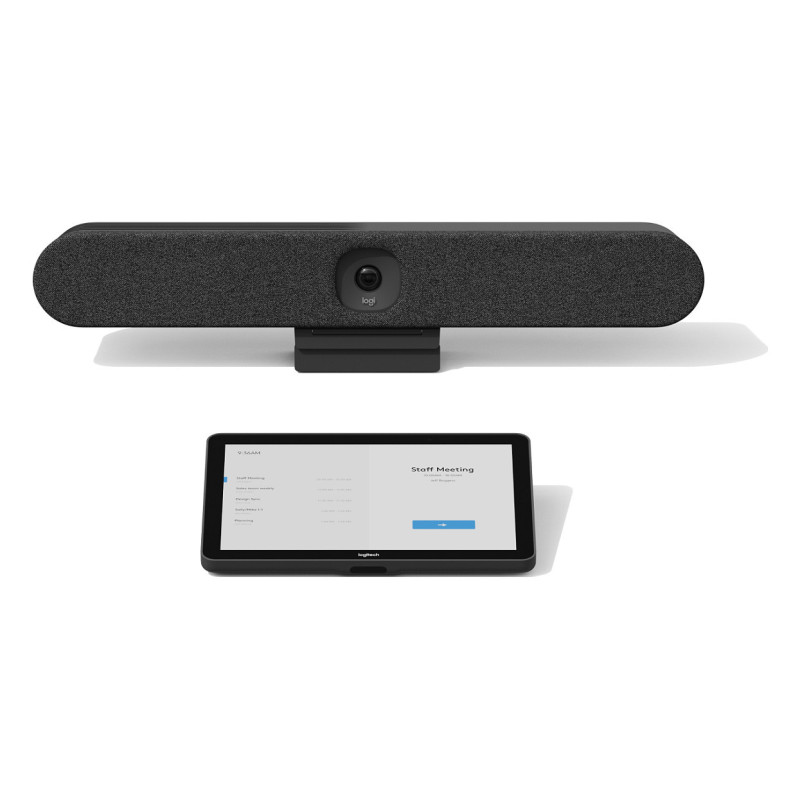

Rally Bar Huddle + Tap IP
Full solution featuring an all-in-one video bar and touch controller with PoE connectivity. Ideal for huddle and small rooms up to 6 people.

Performance

Number of persons: 6 person(s)
Bluetooth: Yes
Product colour: Graphite
Camera cable length (max): 2.2 m
Product type: Group video conferencing system
Pan range: -48 - 48°
Tilt angle range: -32 - 32°
PTZ control: Yes

Video

HD type: 4K Ultra HD

Audio

Built-in speaker(s): Yes
Line-out impedance: 4 Ω
Output voltage Total Harmonic Distortion (THD): 2%
Audio beamforming: Yes
Sample rates: 0 - 48 kHz
Driver diameter: 5.5 cm
Speaker power: 8 W

Ports interfaces

HDMI output ports quantity: 1
HDMI input ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Security algorithms: 128-bit AES

Camera

Camera type: Single camera
Zoom capability: Yes
Digital zoom: 4x
Horizontal field of view: 113°
Vertical field of view: 80°
Diagonal field of view: 120°
Privacy camera: Yes
Privacy type: Privacy shutter

Display

Display: IPS
Display diagonal: 25.6 cm (10.1")
Display resolution: 1280 x 800 pixels
Contrast ratio (typical): 1000:1
Touchscreen: Yes
Touchscreen type: Capacitive
Viewing angle, horizontal: 85°
Viewing angle, vertical: 85°
Display brightness: 400 cd/m²
Oleophobic coating: Yes

Microphone

Microphone sensitivity: -36 dB
Microphone frequency: 90 - 16000 Hz
Sound pressure level (max): 83 dB
Number of microphones: 6

Features

Telepresence: No
Motion sensor: Yes
Cable lock slot: Yes
Cable lock slot type: Kensington

Computer system

VESA mounting: Yes
Windows operating systems supported: Yes
Mac operating systems supported: MacOS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -25 - 70 °C

Power

Power source type: AC
AC input voltage: 100 - 240 V
Current: 2.1 A
DC input voltage: 19 V

Weight dimensions

Interface module dimensions (W x D x H): 246.2 x 171.3 x 56.1 mm
Interface module weight: 1 kg
Width: 549.6 mm
Depth: 76 mm
Height: 78.9 mm
Weight: 1.8 kg

Packaging data

Package width: 218.6 mm
Package depth: 633.6 mm
Package height: 262.3 mm
Package weight: 5.89 kg

Packaging content

Cables included: AC, HDMI, USB
Power cable length: 2.5 m
HDMI cable length: 2 m
AC adapter included: Yes
Mounting kit: Yes
Batteries included: No
Packaging content: Rally Bar Huddle Multi-Mount Power supply AC power cord HDMI cable USB cable
