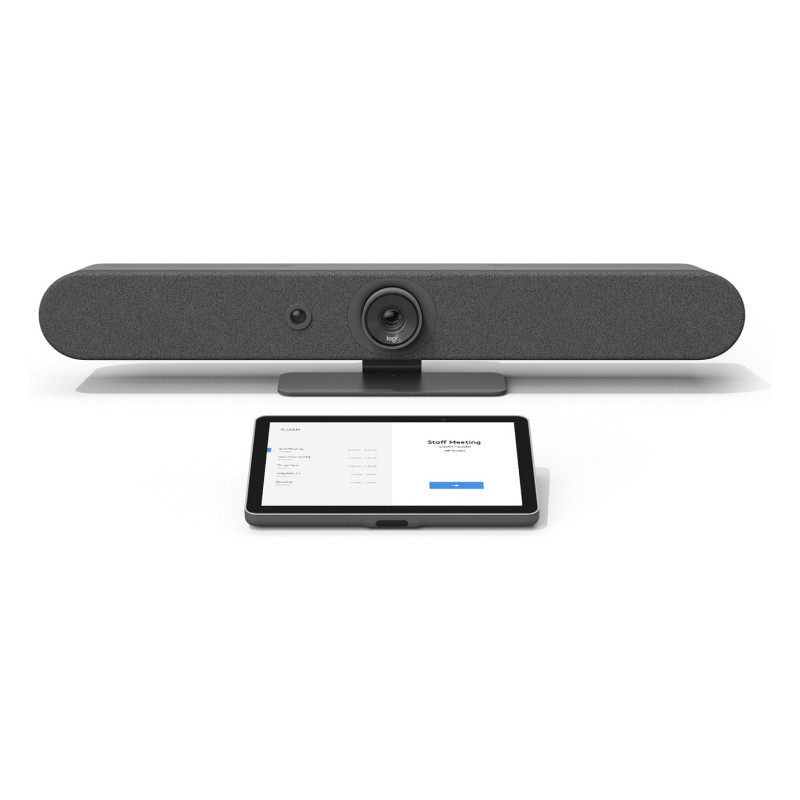

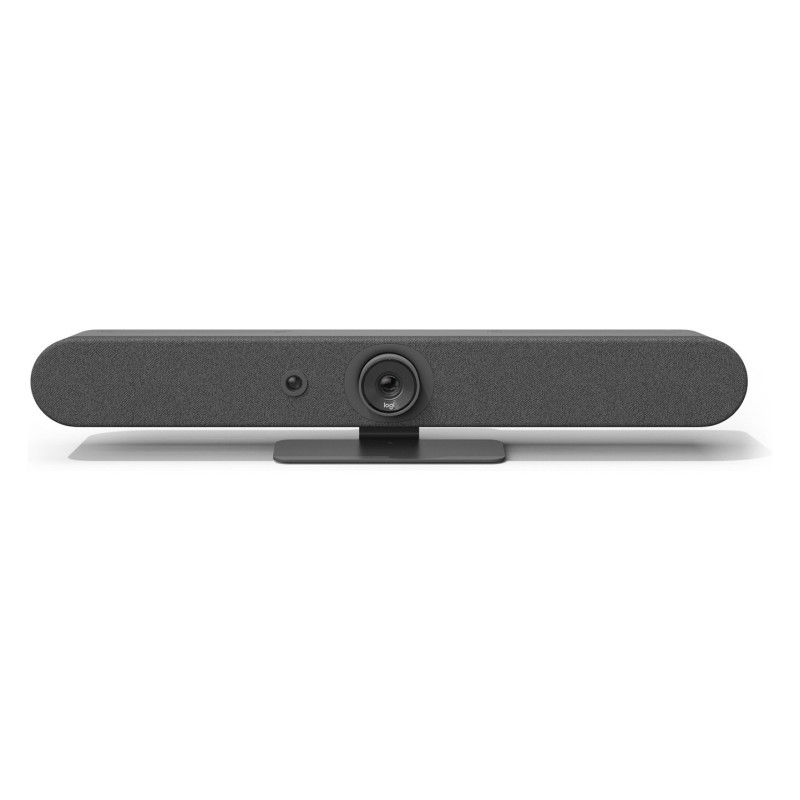

Logitech 991-000389 video conferencing system

Logitech Rally Bar Mini. HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1440p, 2160p, Maximum frame rate: 30 fps. Digital zoom: 4x. Ethernet LAN, Wi-Fi. Display: IPS, Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels. Product colour: Graphite

Performance

Product colour: Graphite
Pan range: -25 - 25°
Tilt angle range: -15 - 15°
PTZ control: Yes

Video

HD type: 4K Ultra HD
Supported video modes: 576p, 720p, 900p, 1440p, 2160p
Maximum frame rate: 30 fps

Audio

Built-in speaker(s): Yes
Output level: 92/99 dB
Line-out impedance: 4 Ω
Output voltage Total Harmonic Distortion (THD): 2%
Audio beamforming: Yes
Noise reduction: Yes
Echo cancellation: Yes
RMS rated power: 5 W
Microphone pick-up range: 4.5 m
Sample rates: 0 - 48 kHz

Ports interfaces

HDMI ports quantity: 3
HDMI output ports quantity: 2
HDMI input ports quantity: 1
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Microphone in: Yes

Interface module

Interface module RJ-45 ports quantity: 1

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols: IPv4, IPv6
Security algorithms: 128-bit AES

Camera

Zoom capability: Yes
Digital zoom: 4x
Horizontal field of view: 113°
Vertical field of view: 80.7°
Diagonal field of view: 120°
Remote control interface: Bluetooth

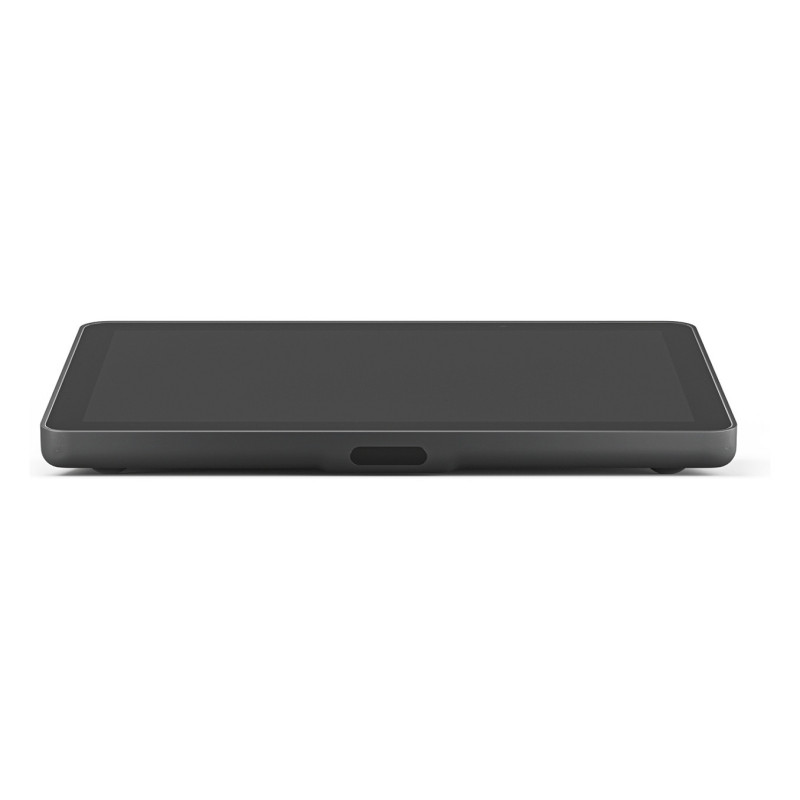

Display

Display: IPS
Display diagonal: 25.6 cm (10.1")
Display resolution: 1280 x 800 pixels
Contrast ratio (typical): 1000:1
Touchscreen: Yes
Touchscreen type: Capacitive
Viewing angle, horizontal: 85°
Viewing angle, vertical: 85°
Display brightness: 400 cd/m²
Oleophobic coating: Yes

Microphone

Microphone sensitivity: -36 dB
Microphone frequency: 90 - 16000 Hz
Microphone direction type: Omnidirectional
Sound pressure level (max): 90 dB
Number of microphones: 6

Features

Telepresence: No
Motion sensor: Yes
Cable lock slot: Yes
Cable lock slot type: Kensington

Logistics data

Master (outer) case gross weight: 8.87 kg
Master (outer) case length: 808 mm
Master (outer) case width: 258 mm
Master (outer) case height: 302 mm
Harmonized System (HS) code: 85176990

Battery

Battery capacity: 0.675 Wh

Computer system

Windows operating systems supported: Yes
Mac operating systems supported: MacOS

System requirements

Minimum system requirements: Internet Connection: Wired or wirelessUSB Mode: Windows 11, Windows 10, the two most recent versions of macOSAppliance Mode: Room solution software licence (not included)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 64 BTU/h

Power

Power source type: AC
AC input voltage: 100 - 240 V
Current: 4.754 A
DC input voltage: 19 V
Battery technology: Lithium
Battery capacity: 220 mAh
Number of batteries supported: 1
Power plug type: Type G

Weight dimensions

Interface module dimensions (W x D x H): 246.2 x 171.3 x 56.1 mm
Interface module weight: 1 kg
Width: 719 mm
Depth: 101 mm
Height: 91.4 mm
Weight: 4.03 kg

Packaging data

Package width: 252 mm
Package depth: 802 mm
Package height: 289 mm
Package weight: 8.87 kg

Packaging content

Cables included: AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length: 2.5 m
HDMI cable length: 2 m
AC adapter included: Yes
Mounting kit: Yes
Remote control included: Yes
Camera included: Yes
Batteries included: Yes
Quick start guide: Yes
Packaging content: Logitech Rally Bar Mini video bar Rally Bar Mini Power supply Cables Lens caps Remote control User documentation Logitech Tap IP touch controller Tap IP VESA mounting screws (4) Microfiber Cloth Documentation
