Logitech 960-001034 video conferencing system

Logitech ConferenceCam Connect. Product type: Group video conferencing system. HD type: Full HD, Supported video modes: 1080p, 720p. Field of view (FOV) angle: 90°, Digital zoom: 4x. Bluetooth, Product colour: Grey

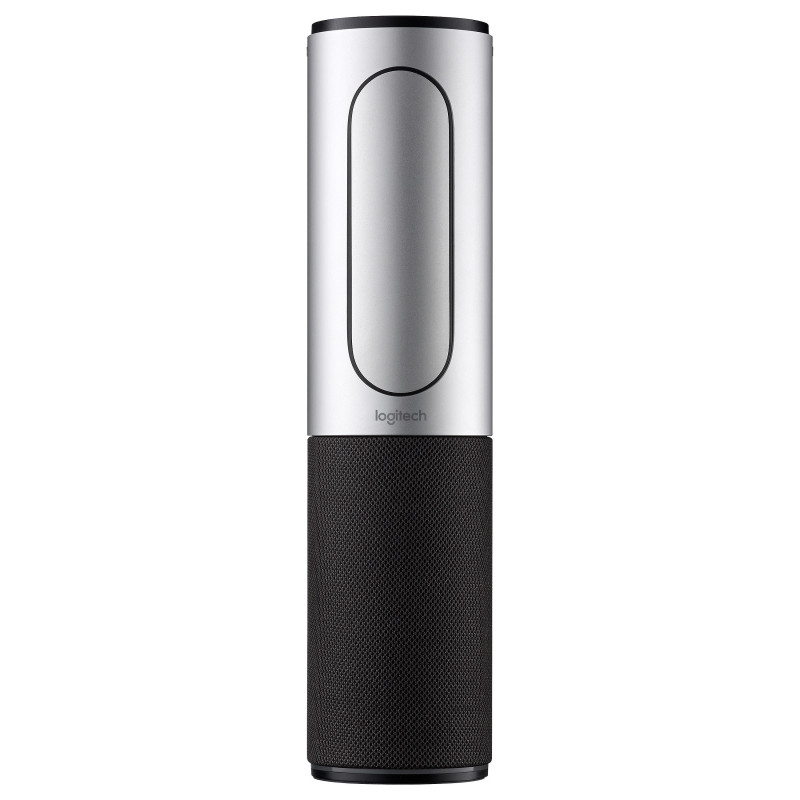

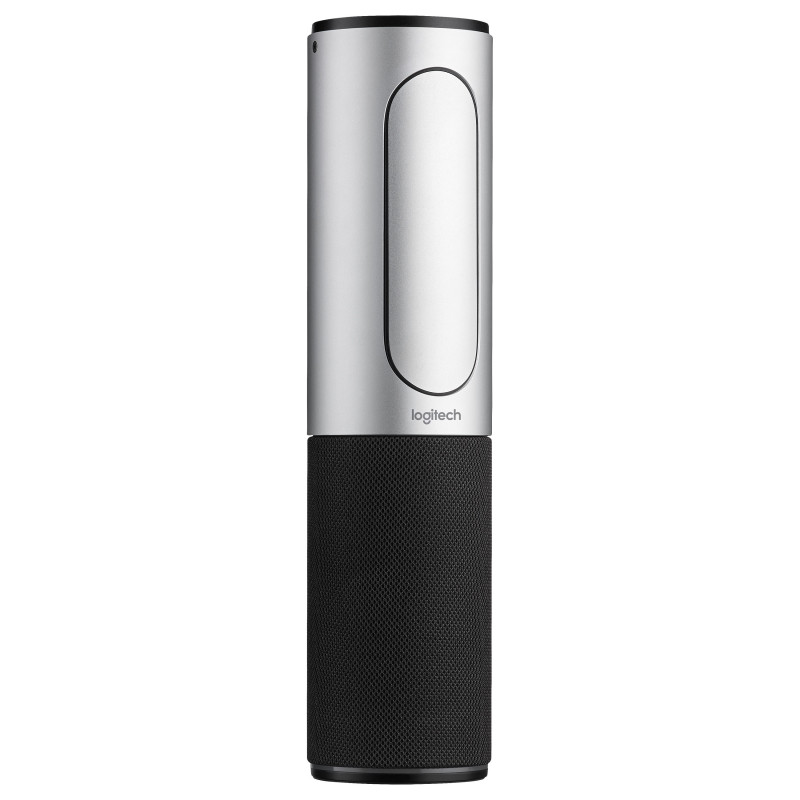

Logitech Connect is a portable, all-in-one videoconference solution with HD 1080p video, professional audio, and multi-device connectivity for small group collaboration.

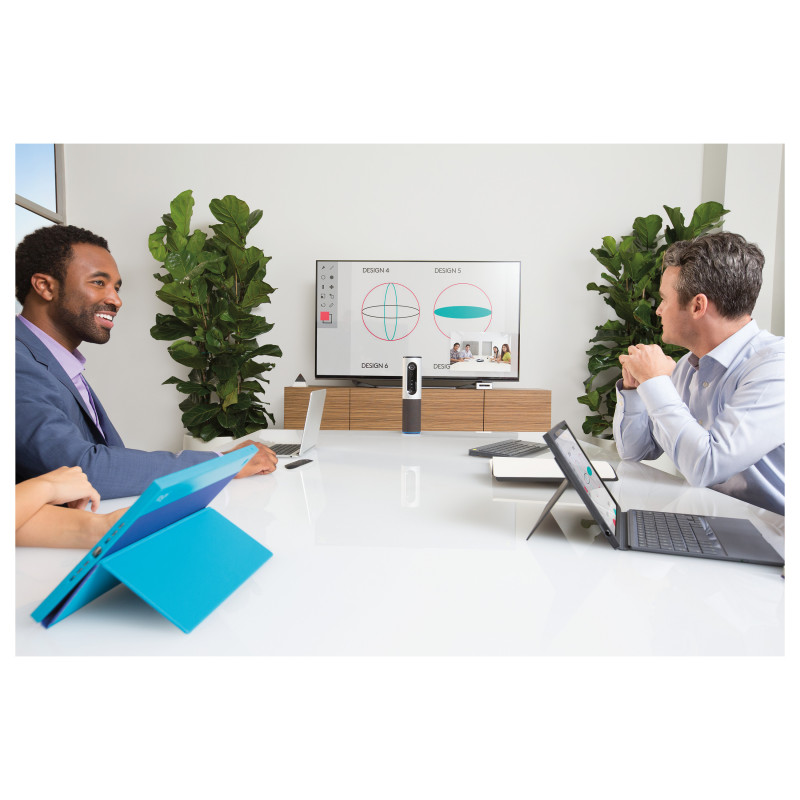

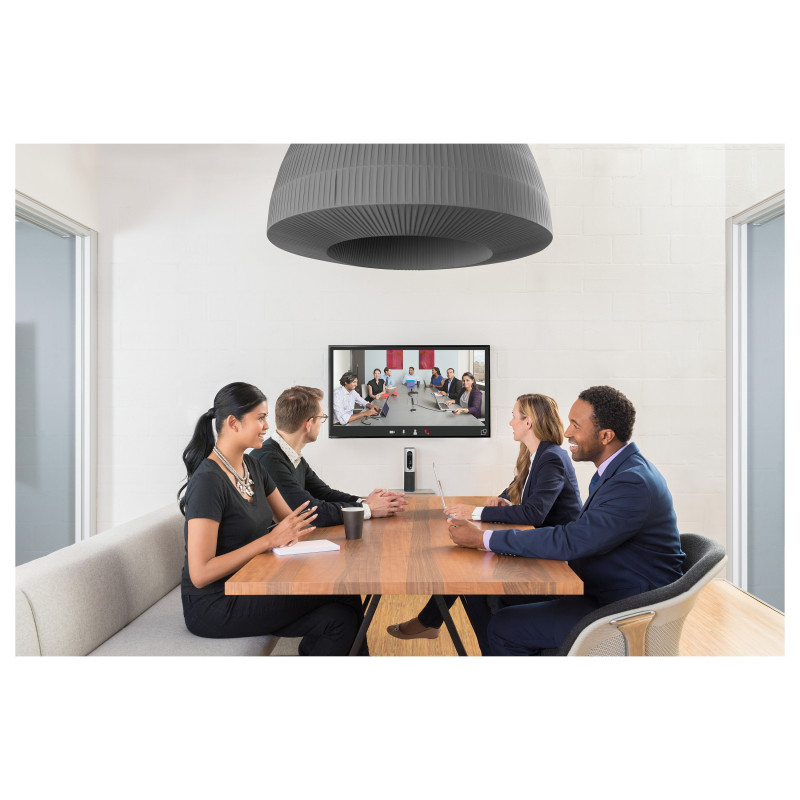

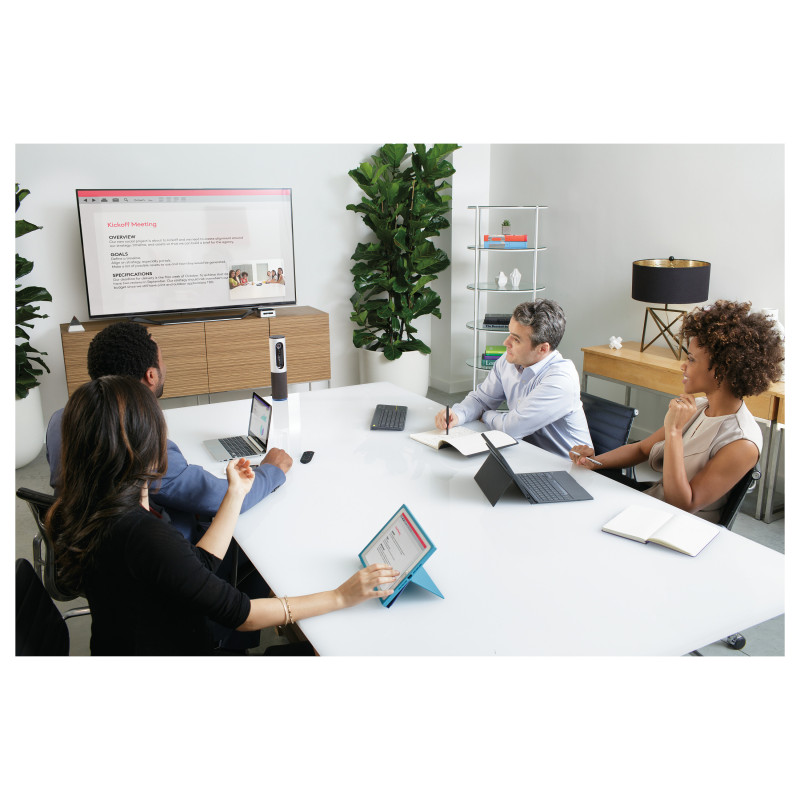

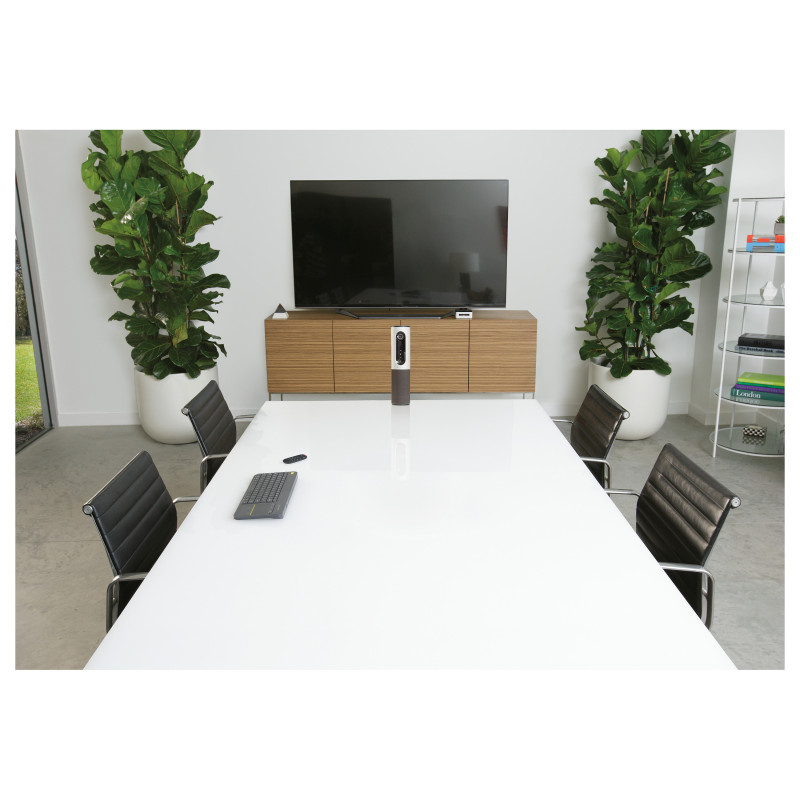

Optimized for workgroups of 1-6 people, the affordable Connect videoconference solution offers multi-device connectivity and sets up in a snap to elevate small group collaboration to the next level.

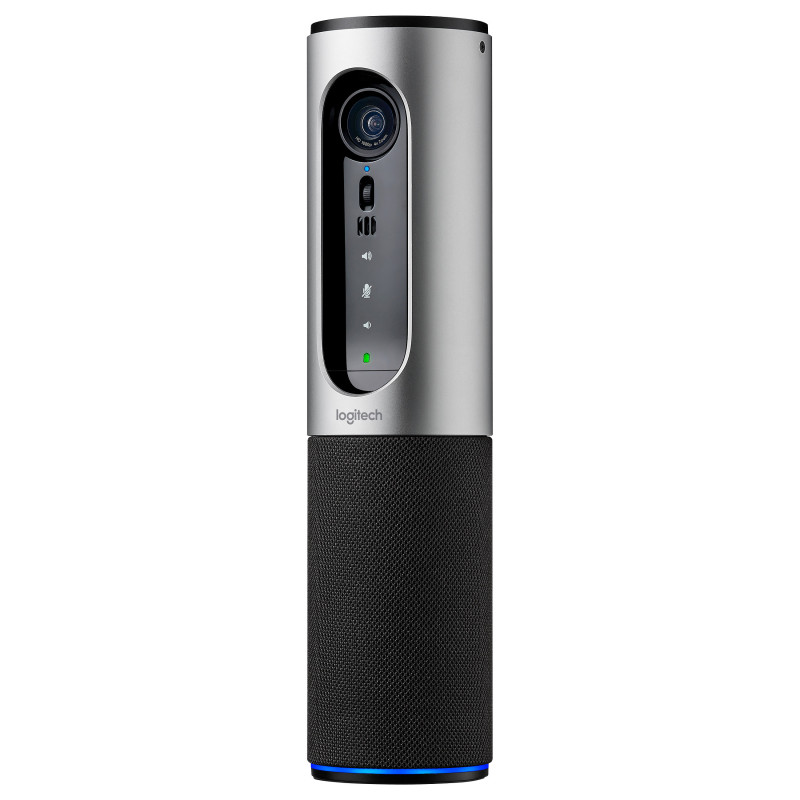

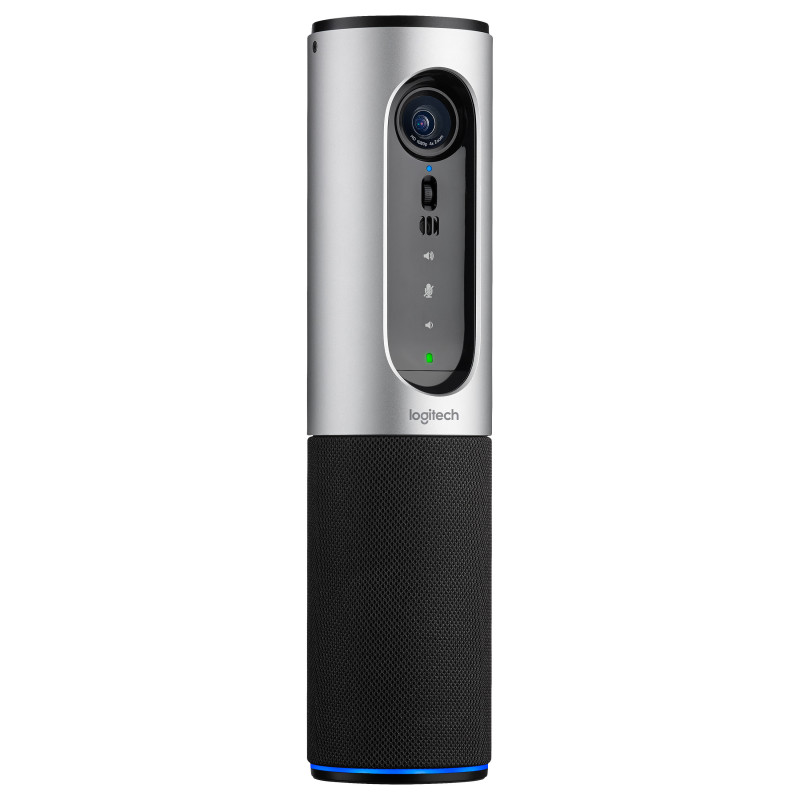

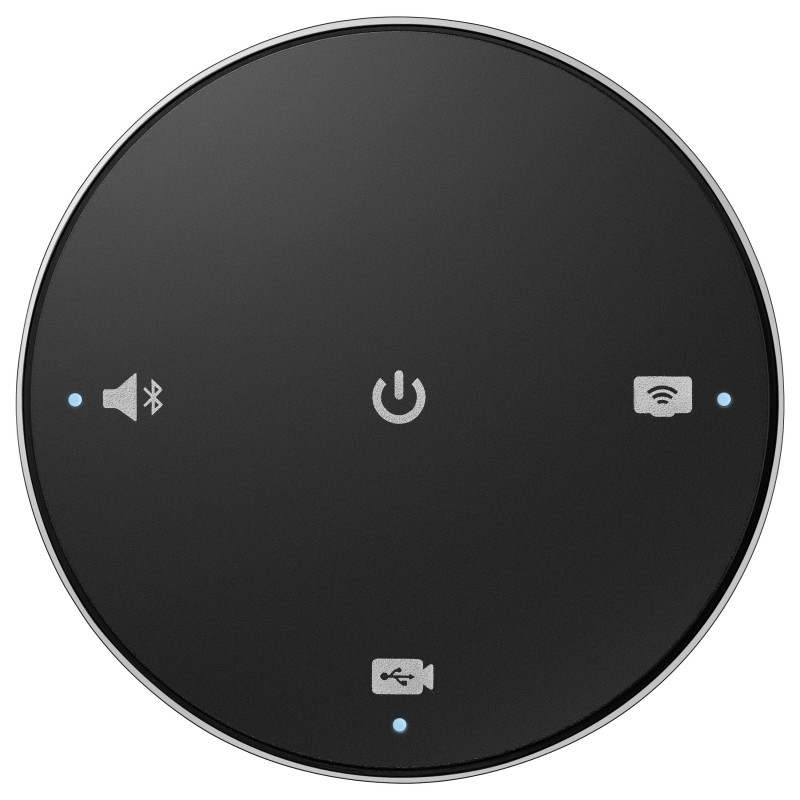

Connect offers a generous 90-degree field of view with digital pan, mechanical tilt, 4x digital Full HD zoom, and a glass lens with autofocus. The mobile speakerphone features Bluetooth® wireless technology, Near Field Communication (NFC), and USB. With true 360-degree sound, users can hear and be heard within a 12-foot diameter range while acoustic echo and noise-cancelling technology delivers conversational realism.
For ultimate flexibility in the Anywhere Workplace, Connect runs on battery or AC power, provides multi-device connectivity and features certifications from Microsoft®, Cisco®, and Skype™ to ensure broad-based UC compatibility.

Performance

Bluetooth: Yes
Product colour: Grey
Product type: Group video conferencing system
Tilt angle range: -10 - 10°
PTZ control: Yes

Video

HD type: Full HD
Maximum video resolution: 1920 x 1080 pixels
Supported video modes: 1080p, 720p
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Aspect ratio: 16:9
Video formats supported: H.264

Audio

Built-in speaker(s): Yes
Frequency range: 140 - 16000 Hz
Microphone pick-up range: 3.6 m

Ports interfaces

USB 2.0 ports quantity: 1

Network

Wi-Fi: No

Camera

Zoom capability: Yes
Digital zoom: 4x
Field of view (FOV) angle: 90°
Focus adjustment: Auto

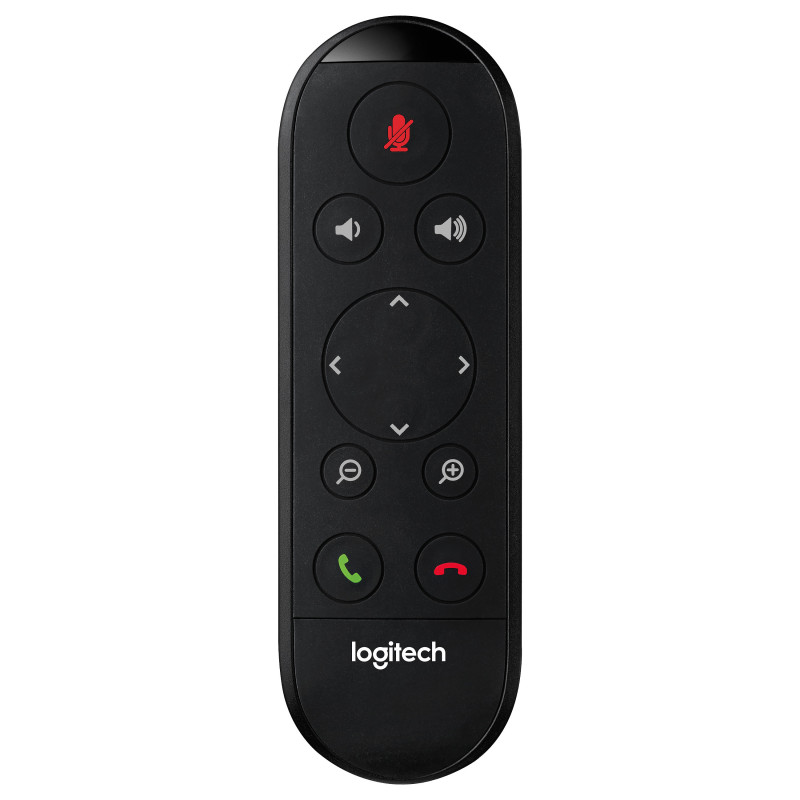

Remote control interface: IR Wireless
Photo feature: Yes
Privacy camera: Yes
Privacy type: Privacy shutter

Display

Viewing angle, horizontal: 82.1°
Viewing angle, vertical: 52.2°

Microphone

Microphone sensitivity: -34 dB
Microphone frequency: 100 - 16000 Hz
Microphone direction type: Omnidirectional
Sound pressure level (max): 91.5 dB
Microphone Total Harmonic Distortion (THD): 1%
Number of microphones: 2

Features

Telepresence: No
Mounting type: Stand
Cable lock slot: Yes
Cable lock slot type: Kensington

Logistics data

Master (outer) case gross weight: 6.5 kg
Master (outer) case length: 428 mm
Master (outer) case width: 308 mm
Master (outer) case height: 200 mm
Harmonized System (HS) code: 85176990

Battery

Battery capacity: 11.52 Wh

Computer system

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Mobile operating systems supported: Android
Other operating systems supported: ChromeOS

System requirements

Minimum system requirements: Windows 7 or 8.1 Mac OS X 10.7 or higher Google Chromebook Version 29.0.1547.70, Platform 4319.79.0 with 2.4 GHz Intel Core 2 Duo processor 2 GB RAM or more Hard drive space for recorded videos USB 2.0 port (USB 3.0 ready) Screen mirroring: Android 4.3 or higher Windows 8.1 or higher / As phones or tablets may vary, please check your mobile device specs or contact manufacturer
Minimum RAM: 2000 MB

Power

Power source type: AC, Battery
Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 3200 mAh
Number of batteries supported: 2

Weight dimensions

Remote control dimensions (W x H x D): 41 x 128 x 9 mm
Remote control weight: 32 g
Width: 75 mm
Depth: 75 mm
Height: 304.2 mm
Weight: 766 g

Packaging data

Package width: 90 mm
Package depth: 148 mm
Package height: 420 mm
Package weight: 1.49 kg

Packaging content

Cables included: USB
AC adapter included: Yes
Remote control included: Yes
Batteries included: Yes
Quick start guide: Yes

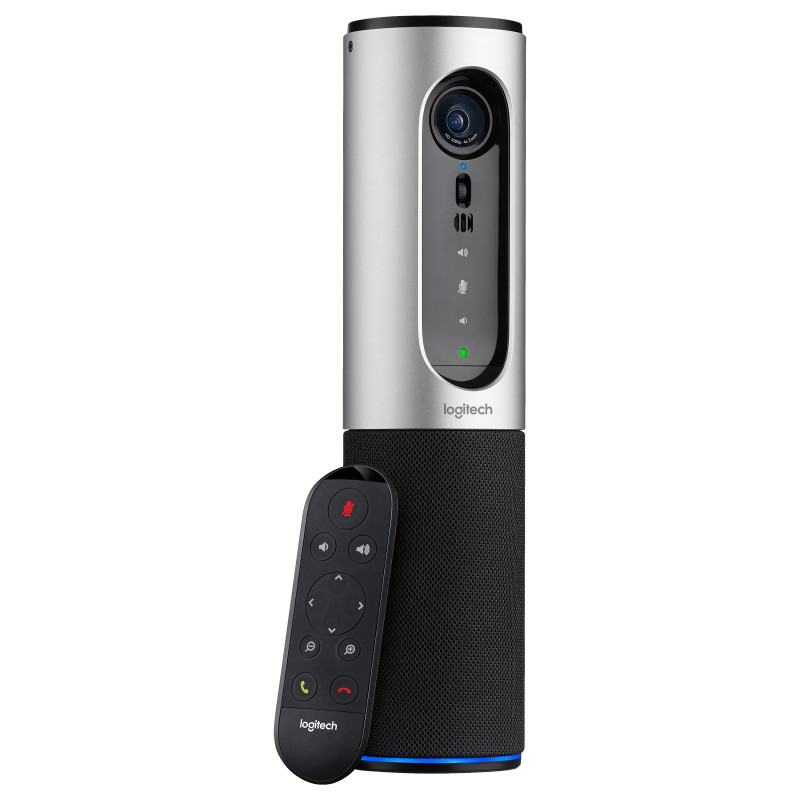

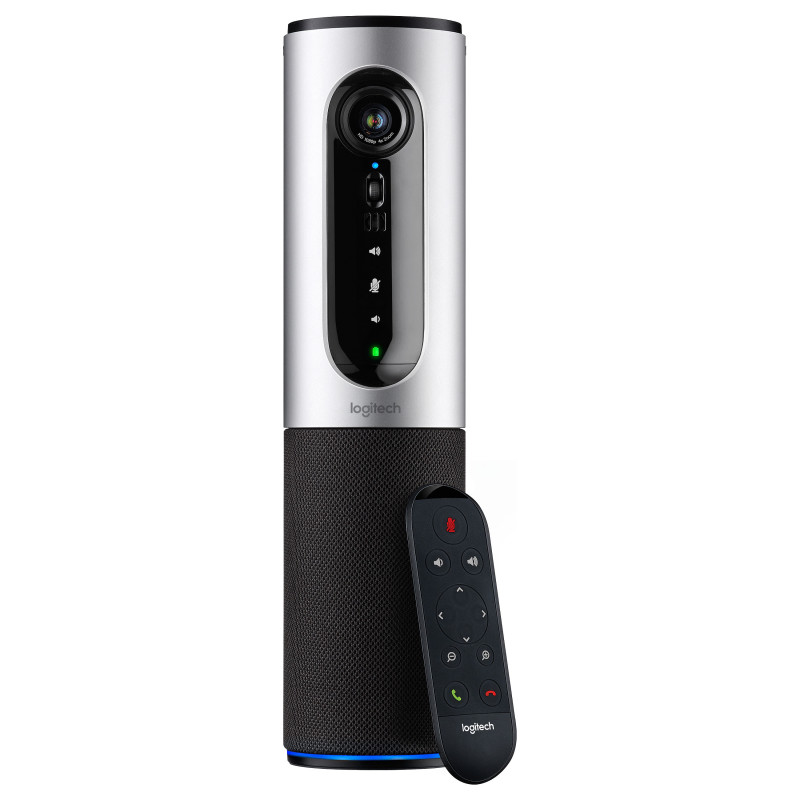

Packaging content: Logitech Connect device Remote control 1.8 meter USB cable Power adapter with regional plugs Documentation
